Downloadbare informatie
Download Generated PDF Download Brochure Barco R9461811EU *Aan onjuist vermelde foto’s, specificaties en prijzen kunnen geen rechten worden ontleend |

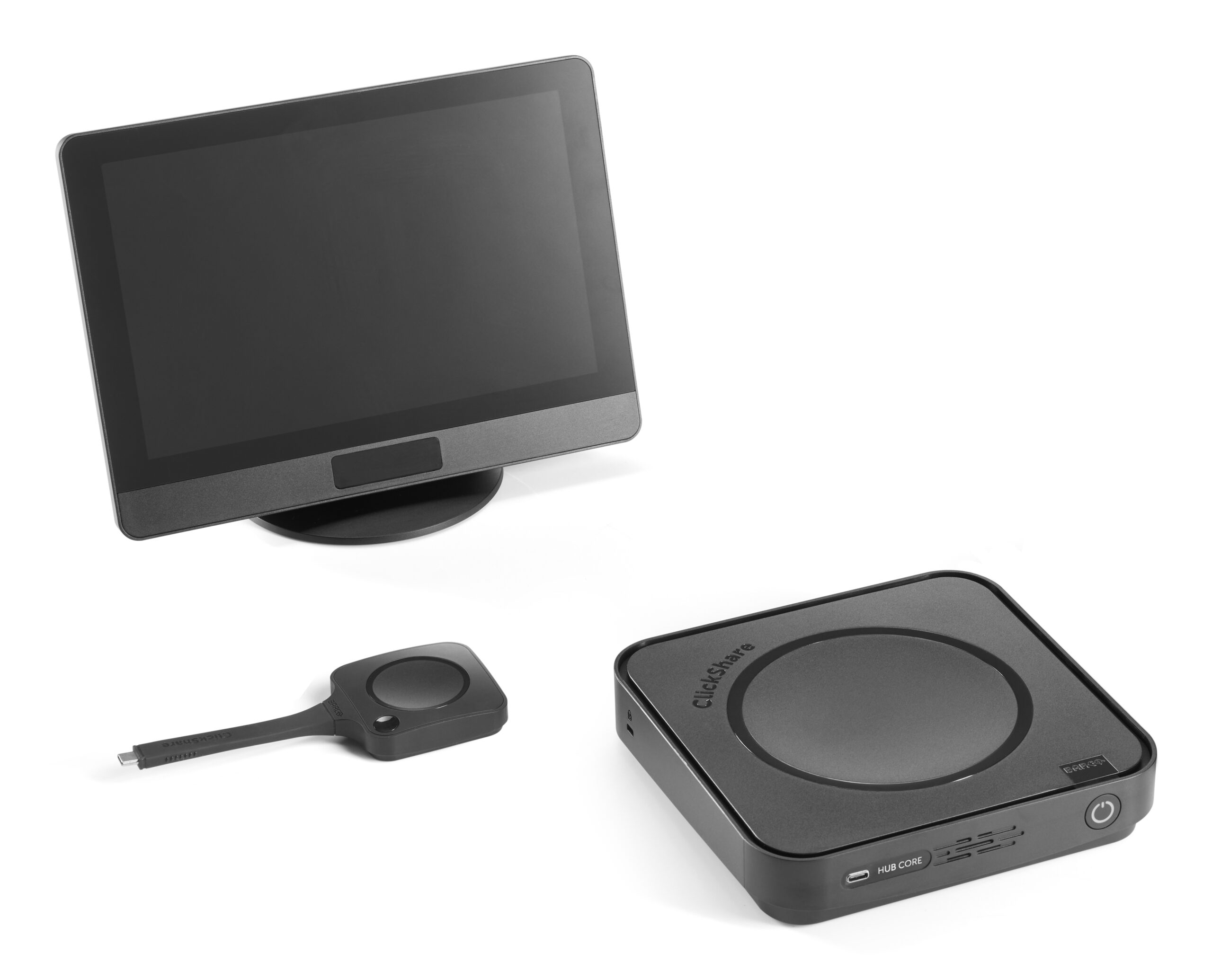

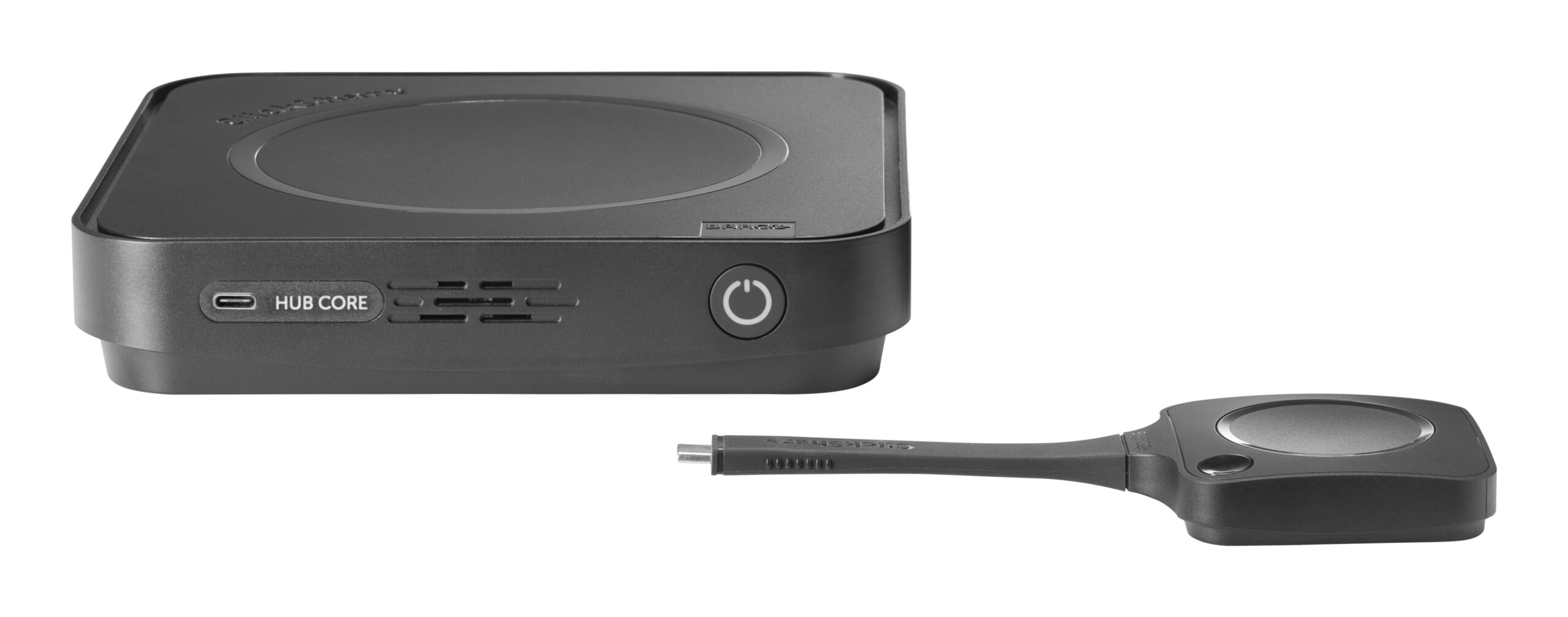

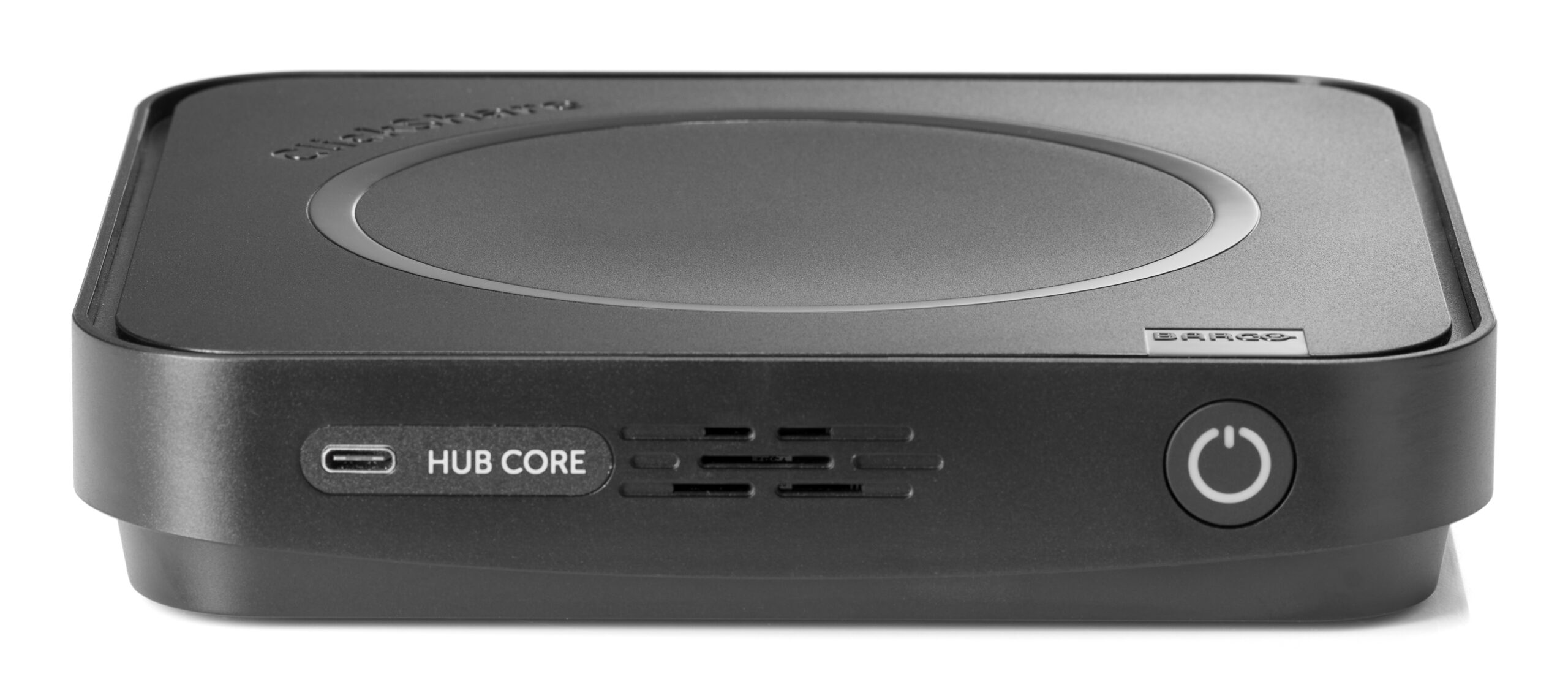

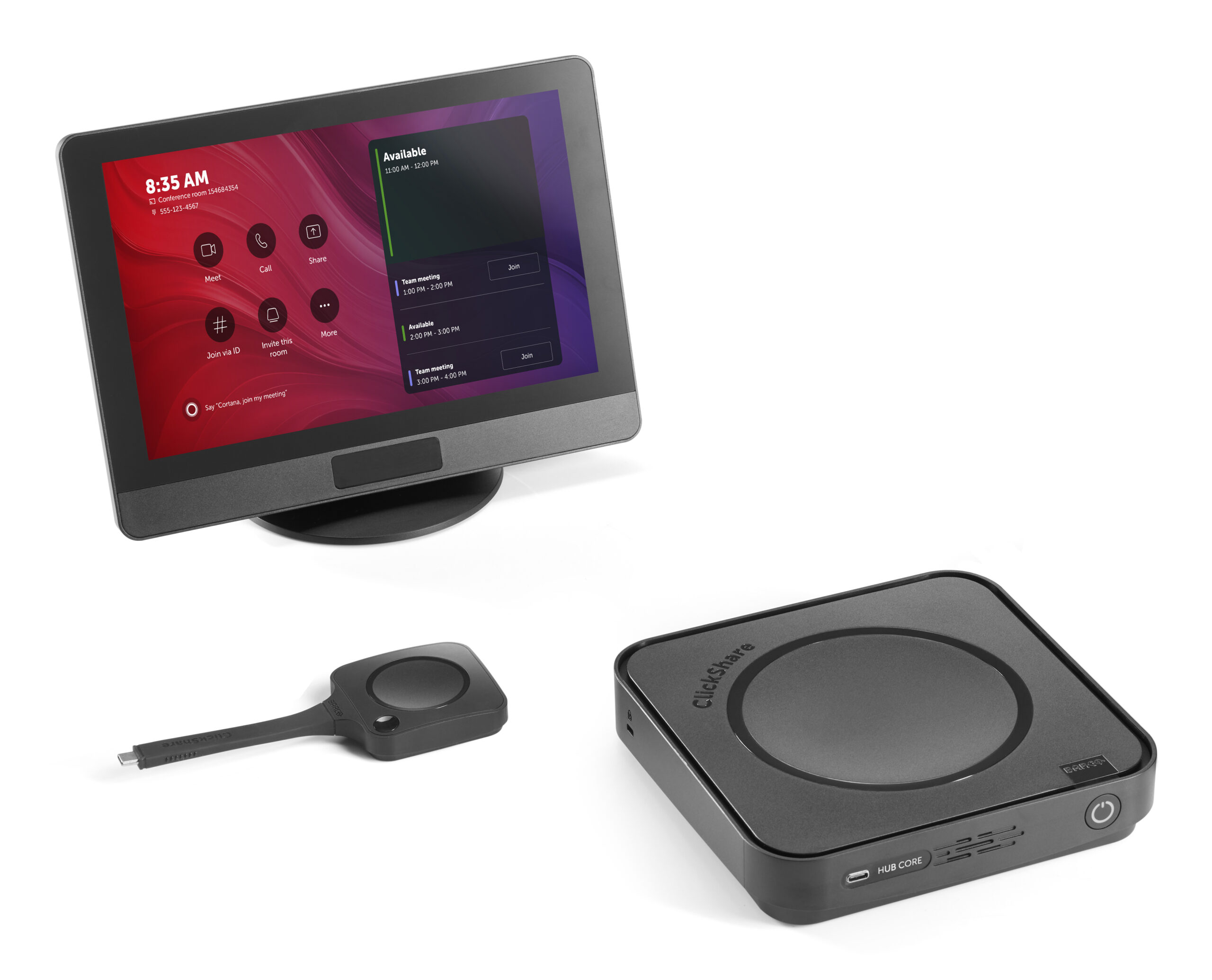

Barco ClickShare Hub Core video conferencing systeem Ethernet LAN Beheersysteem voor videovergaderingsservice
Modular video conferencing room system for effortless hybrid meetings
ClickShare Hub Core is a modular wireless video conferencing room system designed to simplify hybrid meetings. Equipped with a next-gen ClickShare Button (featuring Wi-Fi 6E and USB-C DisplayPort™), it enables secure, 4K wireless content sharing, delivering an engaging and visually rich collaboration experience.
For IT managers and integrators, ClickShare Hub Pro offers a customizable solution for all room types, enterprise-grade security and compliance.

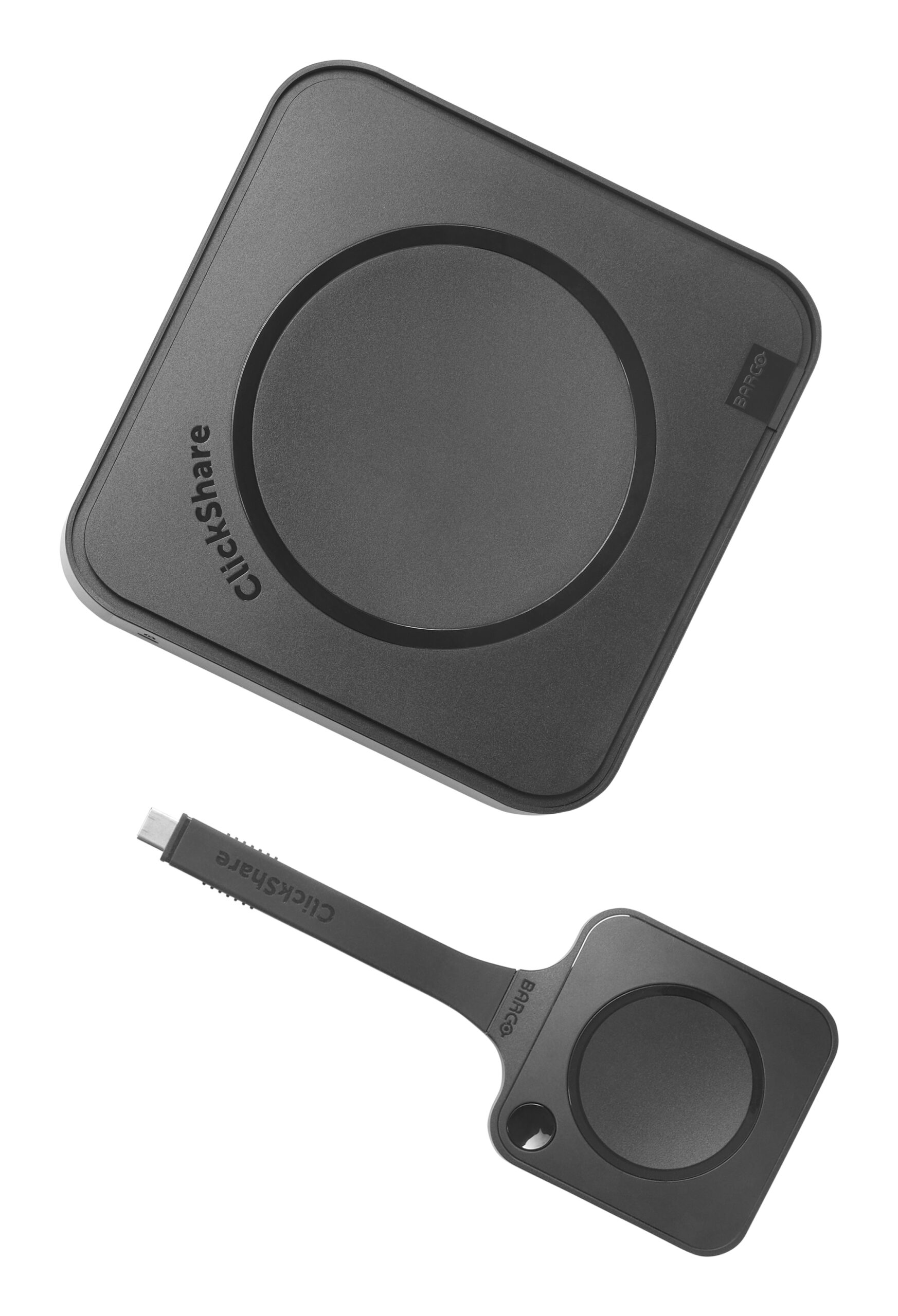

Next-gen ClickShare Button
The ClickShare Button 5th gen, featuring Wi-Fi 6E, offers faster speeds and more reliable connectivity for smooth, uninterrupted collaboration.
Featuring USB-C DisplayPort™, it enables guest-friendly, plug-and-play sharing — no software or drivers needed.
For added privacy and control, the ClickShare Button requires a deliberate press, preventing accidental sharing.
– Works seamlessly across all major OS in high-security environments
– Built-in security and user control
Specificaties
| Prestatie | Video | ||
| Bluetooth | Ja | HD type | 5K Ultra HD |
| Bluetooth-versie | 5.3 | Maximale videoresolutie | 5120 x 2160 Pixels |
| Kleur van het product | Zwart | Ondersteunde grafische resoluties | 1280 x 800 (WXGA), 5120 x 2160 |
| Type product | Beheersysteem voor videovergaderingsservice | ||
| Geluidsniveau | 25 dB | ||

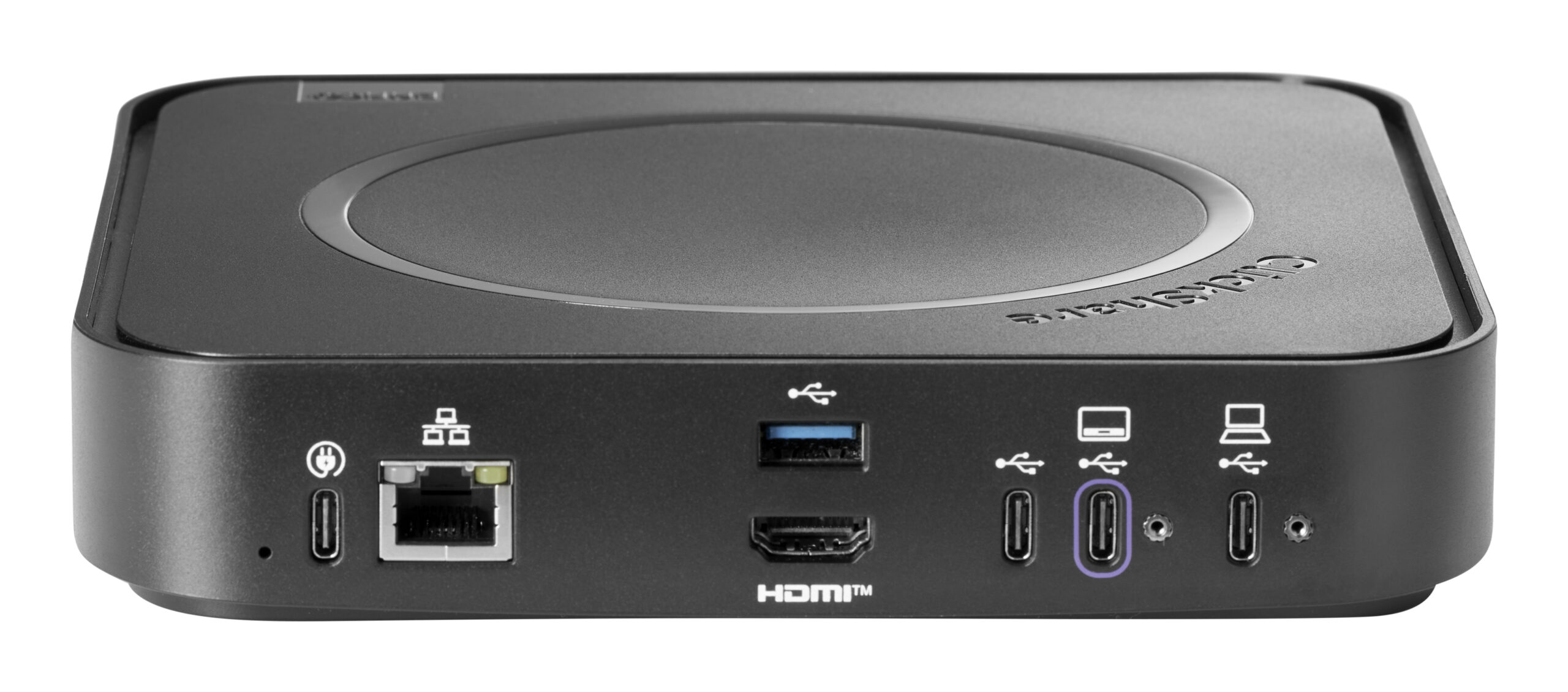

| Poorten & interfaces | Knoppen | ||
| Aantal HDMI-uitvoerpoorten | 1 | Presentatieknop inbegrepen | Ja |
| HDMI versie | 2.0 | ||
| Aantal USB 2.0-Type-C-poorten | 1 | ||
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 1 | ||
| Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C | 3 | ||
| USB Type-C DisplayPort alternatieve modus | Ja | ||
| Aantal Ethernet LAN (RJ-45)-poorten | 1 | ||
| DisplayPort versie | 1.4 | ||
| Netwerk | Beeldscherm | ||
| Ethernet LAN | Ja | Ingebouwd display | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s | Beeldschermdiagonaal | 25,6 cm (10.1") |
| Wifi | Ja | Resolutie | 1280 x 800 Pixels |
| Wi-Fi-standaarden | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) | Typische contrastverhouding | 1000:1 |
| Netwerkstandaard | IEEE 802.15.1 | Touchscreen | Ja |
| Kijkhoek, horizontaal | 80° | ||
| Kijkhoek, verticaal | 80° | ||
| Kenmerken | Logistieke gegevens | ||
| Bevestigingsmogelijkheid voor kabelslot | Ja | Land van herkomst | China |
| Kabelslot sleuf type | Kensington | ||
| Maximale afstand | 30 m | ||
| Computersysteem | Eisen aan de omgeving | ||
| Ondersteunt Windows | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 | Bedrijfstemperatuur (T-T) | 0 – 40 °C |
| Ondersteunt Mac-besturingssysteem | Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia | Relatieve vochtigheid in bedrijf (V-V) | 0 – 85 procent |
| Temperatuur bij opslag | -20 – 60 °C | ||
| Luchtvochtigheid bij opslag | 0 – 90 procent | ||
| Energie | Certificaten | ||
| Type stroombron | USB | Certificaten van naleving | CE, Federal Communications Commission (FCC) |
| Vermogensverbruik (max) | 140 W | ||
| USB Power Delivery (USB PD) | Ja | ||
| USB Power Delivery tot max. | 180 W | ||
| Gewicht en omvang | Inhoud van de verpakking | ||
| Monitorafmetingen (B x D x H) | 187,9 x 76,9 x 254,5 mm | Ingebouwde camera | Nee |
| Monitorgewicht | 820 g | Verpakkingsinhoud | ClickShare Hub Core Base Unit, 1 ClickShare Hub Button 5th Gen, Mounting disc, Safety manual, Quick setup guide, Control Panel, ClickShare 10M 20W USB-C AOC cable, L-Shape mounting plate, Round base, Screw pack, Quick setup guide, USB-C cable lock kit |
| Breedte | 180 mm | ||
| Diepte | 180 mm | ||
| Hoogte | 37 mm | ||
| Gewicht | 720 g | ||
| Receiver afmetingen (B x D x H) | 63 x 161,3 x 16 mm | ||
