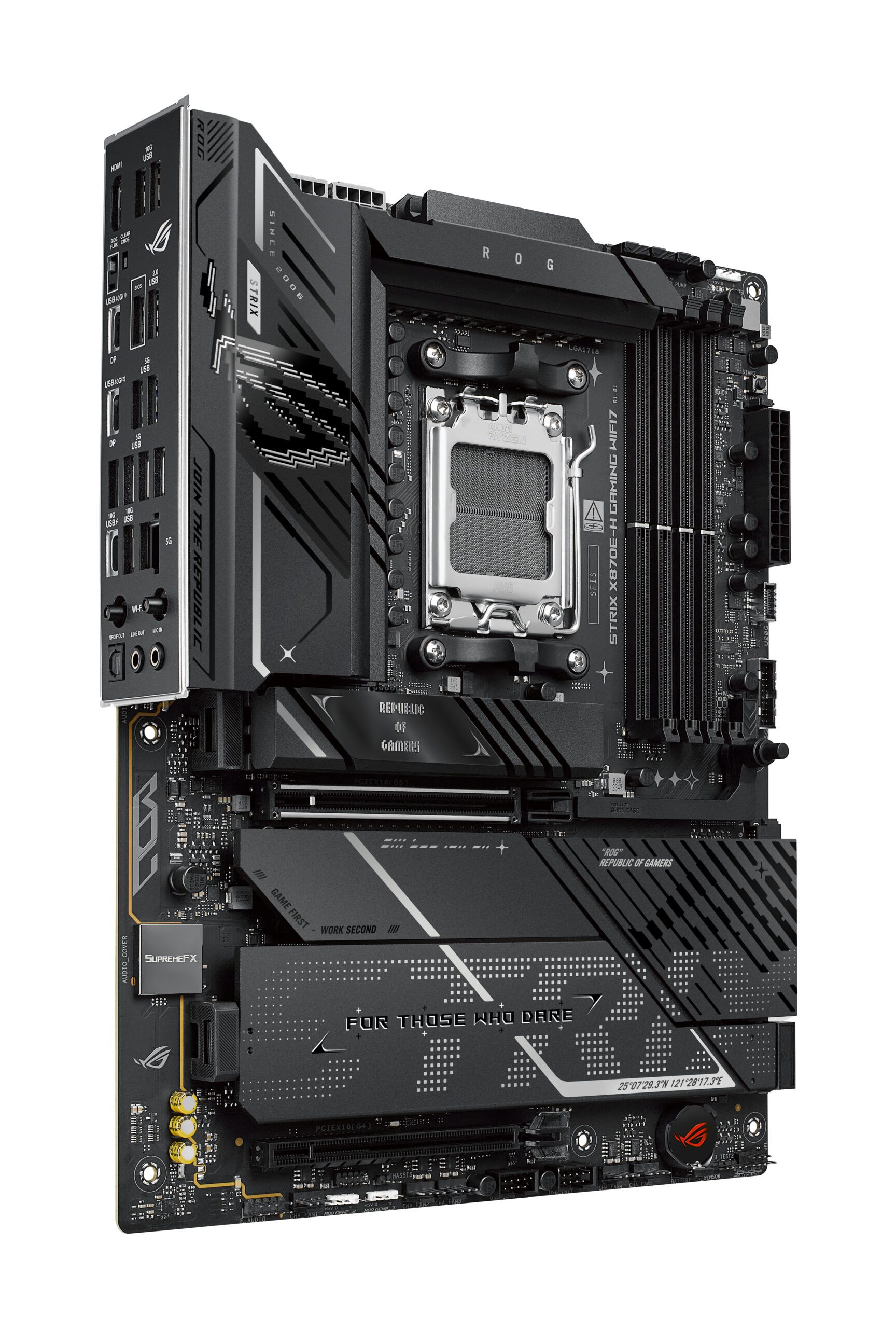

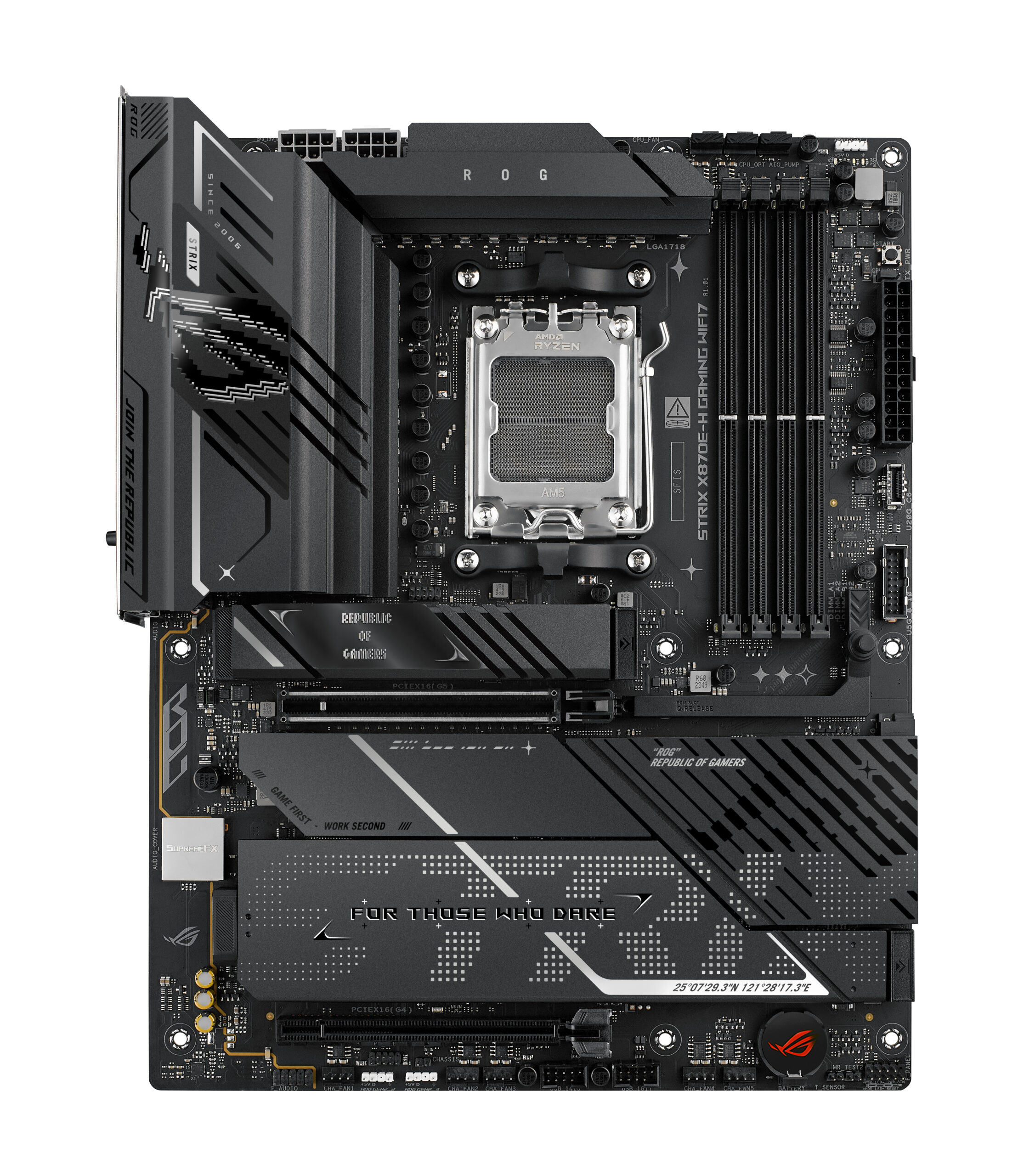

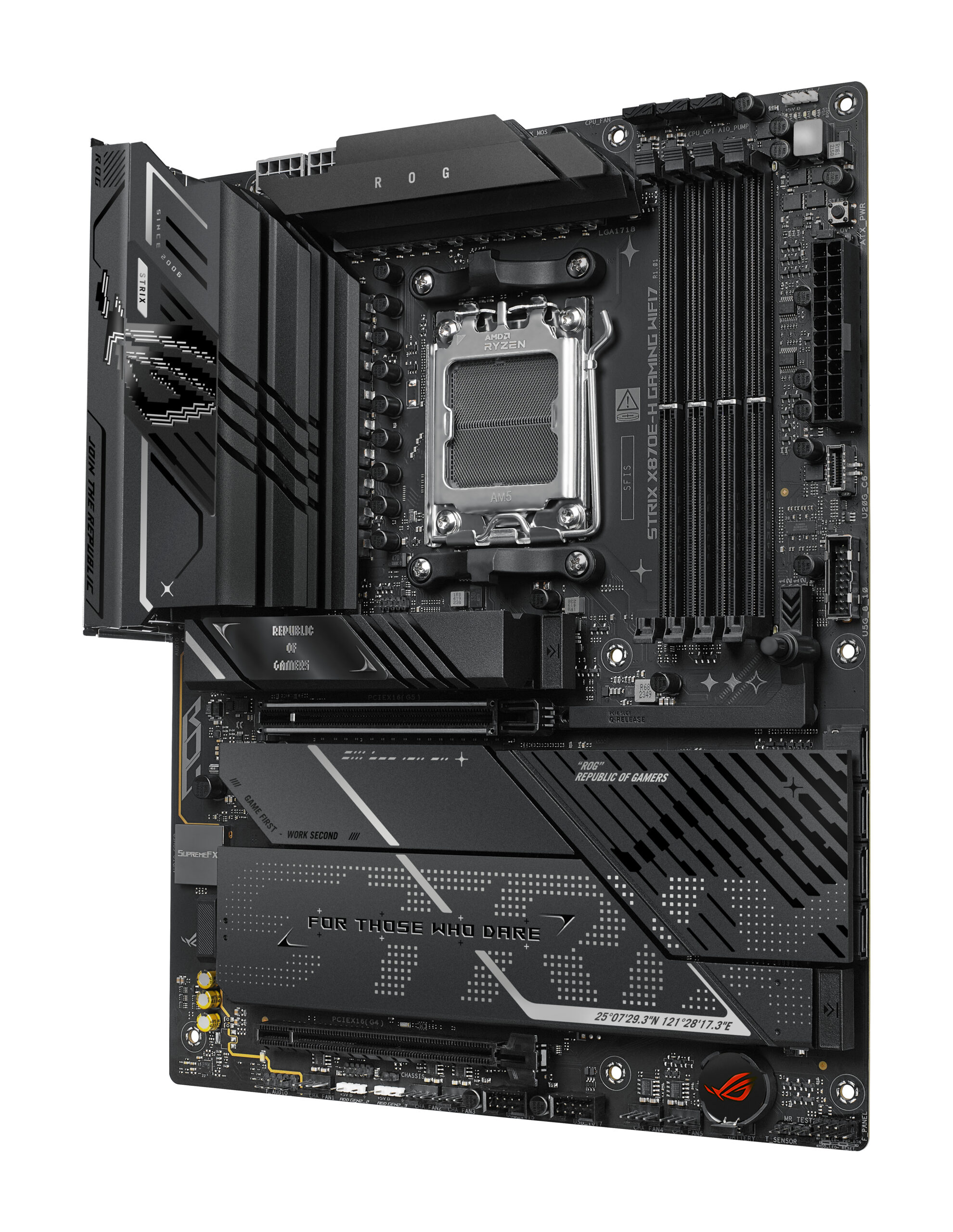

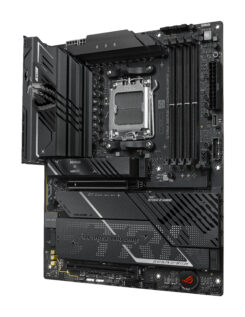

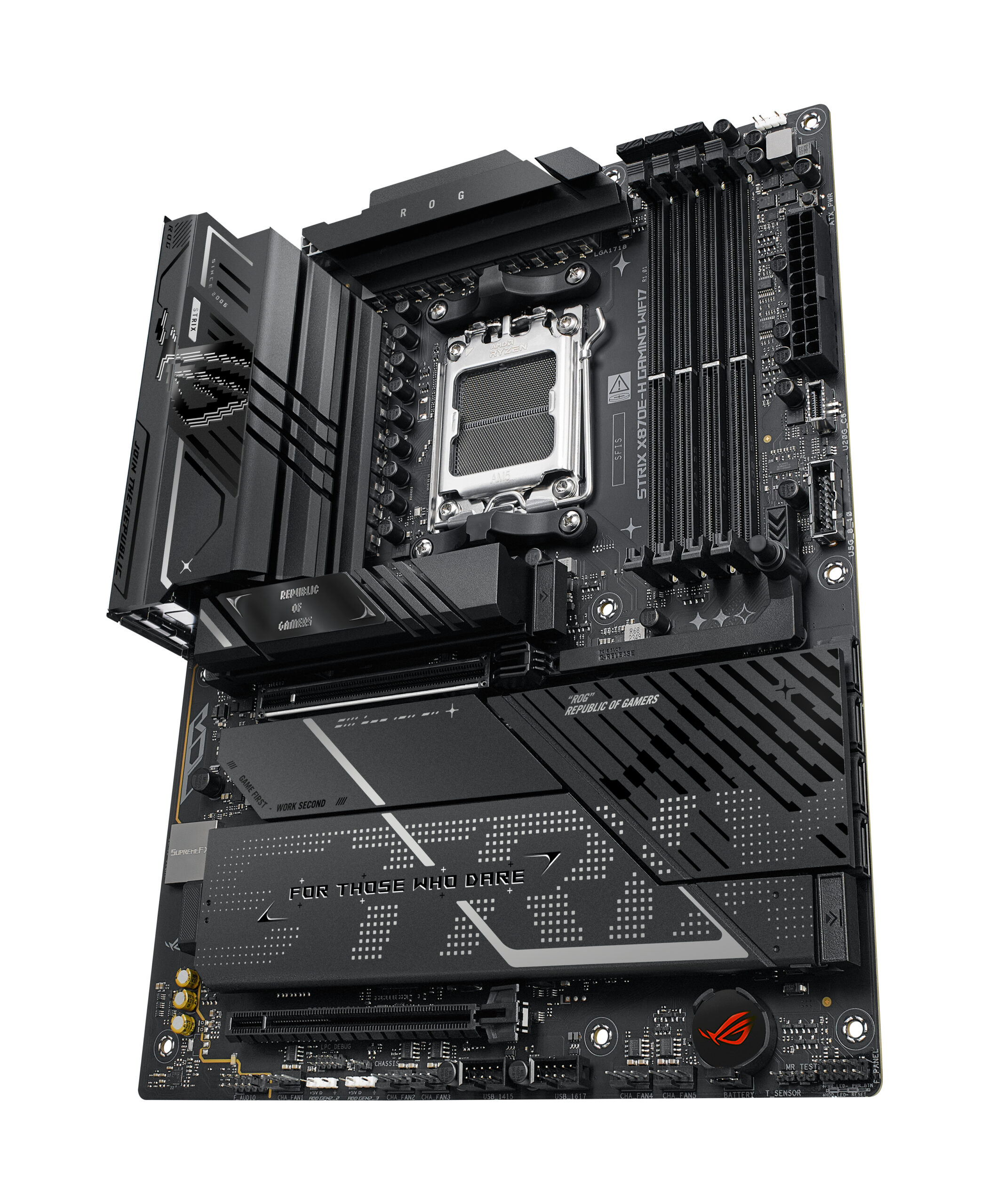

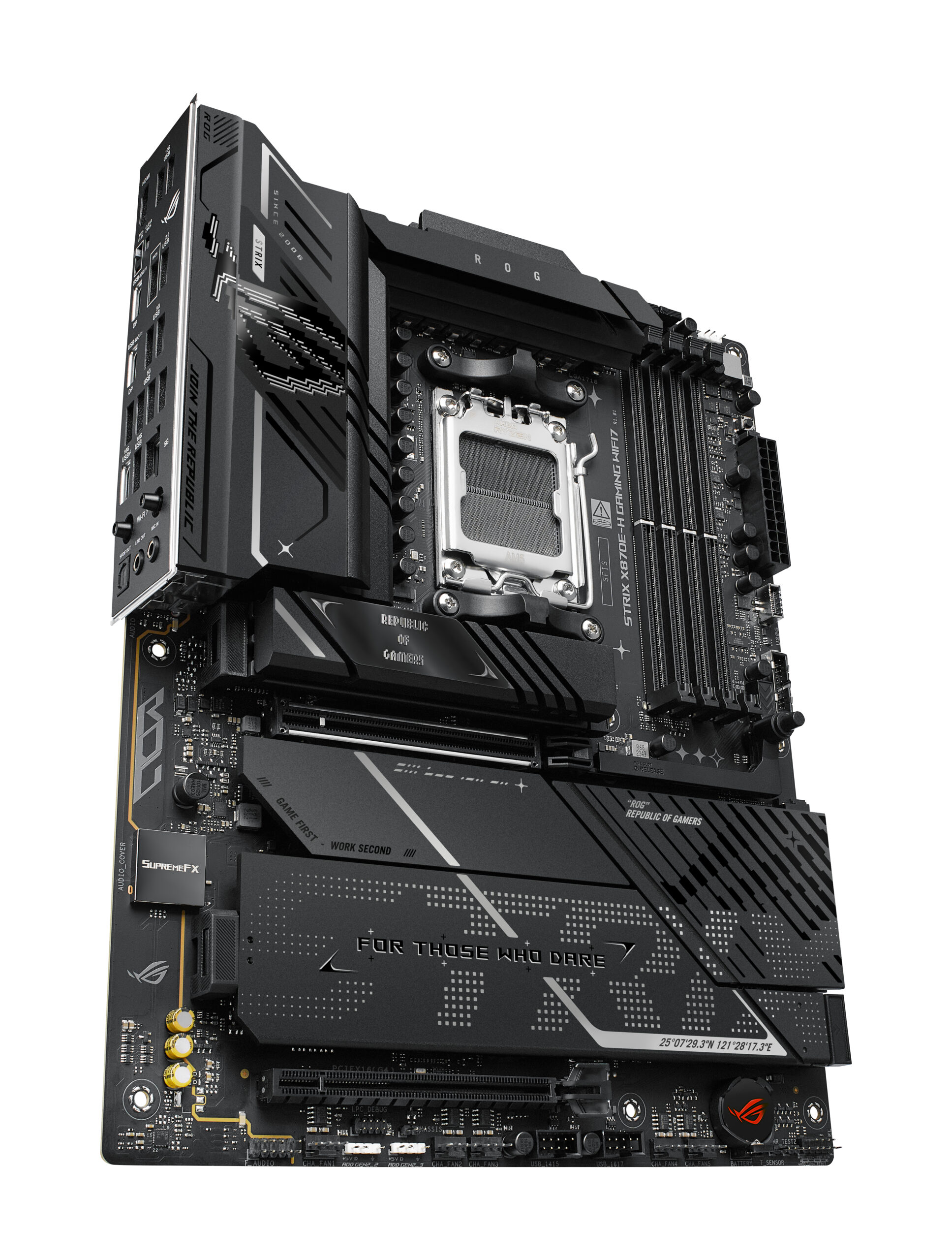

ASUS ROG STRIX X870E-H GAMING WIFI7 AMD X870E Socket AM5 ATX
ASUS ROG STRIX X870E-H GAMING WIFI7. Processorfabrikant: AMD, Processor socket: Socket AM5, Compatibele processors: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Ondersteunde geheugen types: DDR5-SDRAM, Maximum intern geheugen: 256 GB, Geheugen slots type: DIMM. Ondersteunde opslagstationinterfaces: M.2, SATA III, Ondersteunde types opslag-drives: HDD & SSD, Soorten RAID: 0, 1, 10, 5. Ethernet interface type: 5 Gigabit Ethernet, Wifi-standaard: Wi-Fi 7 (802.11be), Wi-Fi-standaarden: Wi-Fi 7 (802.11be). Component voor: PC, Moederbord form factor: ATX, Moederbord chipset familie: AMD
Specificaties
| Processor | Geheugen | ||
| Processorfabrikant | AMD | Ondersteunde geheugen types | DDR5-SDRAM |
| Processor socket | Socket AM5 | Aantal geheugenslots | 4 |
| Compatibele processors | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series | Geheugen slots type | DIMM |
| Supported processor sockets | Socket AM5 | Geheugen kanaal | Dubbelkanaals |
| ECC-compatibiliteit | Niet-ECC | ||
| Maximum intern geheugen | 256 GB | ||
| Niet gebufferd geheugen | Ja | ||
| Opslag-controllers | Grafisch | ||
| Ondersteunde types opslag-drives | HDD & SSD | Ondersteuning voor parallel processing | Niet ondersteund |
| Ondersteunde opslagstationinterfaces | M.2, SATA III | Ingebouwde grafische adapter | Nee |
| Maximum aantal HDD's per behuizing | 4 | ||
| Aantal storage drives ondersteund | 8 | ||
| RAID support | Ja | ||
| Soorten RAID | 0, 1, 10, 5 | ||
| Interne aansluitingen | Aansluitingen achterzijde | ||
| USB 2.0 aansluitingen | 2 | Aantal USB 2.0-poorten | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 1 | Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 6 |
| USB 3.2 Gen 2×2-aansluitingen | 1 | Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 3 |
| Aantal SATA III connectors | 4 | Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C | 1 |
| Aansluiting voor audiopaneel aan voorzijde | Ja | Aantal USB4 Gen 3×2-poorten | 2 |
| Voorpaneel-connector | Ja | Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| ATX Power connector (24-pin) | Ja | Aantal HDMI-poorten | 1 |
| Aansluiting voor CPU koeler | Ja | Microfoon, line-in ingang | Ja |
| Aantal CPU-ventilatoraansluitingen | 2 | S/PDIF-uitgang | Ja |
| Aansluitingen voor behuizingsventilatoren | 5 | WiFi-AP antenna jack | 1 |
| Chassis intrusion aansluiting | Ja | ||
| EPS power connector (8-pin) | Ja | ||
| Aantal EPS-voedingsaansluitingen (8-pins) | 2 | ||
| 12V vermogen-connector | Ja | ||
| Aantal waterpompaansluitingen | 1 | ||
| Aantal temperatuursensorkoppen | 1 | ||
| RGB LED-aansluitrail | Ja | ||
| Aantal RGB LED-pinheaders | 3 | ||
| Netwerk | Kenmerken | ||
| Ethernet LAN | Ja | Chipset moederbord | AMD X870E |
| Ethernet interface type | 5 Gigabit Ethernet | Audiochip | Realtek ALC1220P |
| Wifi | Ja | Audio-uitgangskanalen | 7.1 kanalen |
| Wifi-standaard | Wi-Fi 7 (802.11be) | Kleur van het product | Zwart |
| Wi-Fi-standaarden | Wi-Fi 7 (802.11be) | Component voor | PC |
| WLAN-controller-model | Realtek RTL8922AE | Moederbord form factor | ATX |
| Bluetooth | Ja | Moederbord chipset familie | AMD |
| Bluetooth-versie | 5.4 | Type koeling | Passief |
| Ondersteunt Windows | Windows 11 | ||
| Uitbreidingsmodules | BIOS | ||
| PCI Express x16 (Gen 4.x) sleuven | 1 | BIOS type | UEFI AMI |
| PCI Express x16 (Gen 5.x) sleuven | 1 | Grootte BIOS-geheugen | 256 Mbit |
| Aantal M.2 (M) slots | 4 | ||
| 1e M.2 grootste sleutelgrootte | 2280 | ||
| 1e M.2 hoogste PCI Express-generatie | 5.0 | ||
| 2e M.2 grootste sleutelgrootte | 22110 | ||
| 2e M.2 hoogste PCI Express-generatie | 5.0 | ||
| 3e M.2 grootste sleutelgrootte | 2280 | ||
| 3e M.2 hoogste PCI Express-generatie | 4.0 | ||
| 4e M.2 grootste sleutelgrootte | 2280 | ||
| 4e M.2 hoogste PCI Express-generatie | 4.0 | ||
| Verpakking | Gewicht en omvang | ||
| Breedte verpakking | 353 mm | Breedte | 305 mm |
| Diepte verpakking | 273 mm | Diepte | 244 mm |
| Hoogte verpakking | 68 mm | ||
| Gewicht verpakking | 2,07 kg | ||
| Inhoud van de verpakking | Overige specificaties | ||
| Meegeleverde kabels | SATA | Audio-uitgang | <strong>Realtek ALC1220P 7.1 Surround Sound<br />High Definition Audio CODEC*</strong><br />- Impedance sense for front and rear<br />headphone outputs<br />- Internal audio Amplifier to enhance the<br />highest quality sound for headphone and speakers<br />- Supports: Jack-detection,<br />Multi-streaming, Front Panel Jack-retasking<br />- High quality 120 dB SNR stereo playback<br />output and 113 dB SNR recording input (Line-in)<br />- Supports up to 32-Bit/192 kHz<br />playback*<br /><strong>Audio Features </strong><br />- SupremeFX Shielding Technology<br />- Savitech SV3H712 AMP <br />- Rear optical S/PDIF out port<br />- Premium audio capacitors<br />- Audio cover<br />* The LINE OUT port on the rear panel does<br />not support spatial audio. If you wish to use spatial audio, make sure to<br />connect your audio output device to the audio jack on the front panel of your<br />chassis or use a USB interface audio device. |
| Antenne inbegrepen | Ja | Speciale eigenschappen | <strong>Supports 4 x M.2 slots and 4 x SATA 6Gb/s<br />ports<br />AMD Ryzen™ 9000 & 7000 Series Desktop<br />Processors</strong><br />M.2_1 slot (Key M), type 2242/2260/2280<br />(supports PCIe 5.0 x4 mode)<br />M.2_2 slot (Key M), type 2280/22110<br />(supports PCIe 5.0 x4 mode)*<br /><strong>AMD Ryzen™ 8000 Series Desktop Processors*</strong><br />M.2_1 slot (Key M), type 2242/2260/2280<br />(supports PCIe 4.0 x4/x2 mode)<br />M.2_2 slot (Key M), type 2280/22110 (Not<br />supports)**<br /><strong>AMD X870E Chipset</strong><br />M.2_3 slot (Key M), type 2280 (supports<br />PCIe 4.0 x4 mode)<br />M.2_4 slot (Key M), type 2280 (supports<br />PCIe 4.0 x4 mode)<br />4 x SATA 6Gb/s ports<br />* M.2_2 shares bandwidth with PCIEX16(G5).<br />When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only.<br />** M.2_2 will be disabled when using AMD<br />Ryzen™ 8000 Series Desktop Processors. |
| Andere kenmerken | 4 x DIMM slots, max. 256GB, DDR5<br />Supports up to 8000+MT/s(OC) with Ryzen™<br />9000 & 8000 & 7000 Series Processors<br />Dual channel memory architecture<br />Supports AMD Extended Profiles for<br />Overclocking (EXPO™)<br />Supports DIMM Fit / DIMM Fit Pro<br />ASUS Enhanced Memory Profile (AEMP)<br />* Supported memory types, data rate<br />(speed), and number of DRAM modules vary depending on the CPU and memory<br />configuration, for more information please refer to CPU/Memory Support list<br />under the Support tab of product information site or visit https://www.asus.com/support/download-center/.<br />Adjustments will be made based on the specifications of mass-produced memory<br />products available on the market.<br />** Non-ECC, un-buffered DDR5 memory<br />supports On-Die ECC function. | ||
| Grafische uitvoer | 1 x HDMI™ port**<br />2 x USB4<sup>®</sup> (40Gbps) ports support USB<br />Type-C<sup>®</sup> display outputs***<br />* Graphics specifications may vary between<br />CPU types. Please refer to AMD CPU specifications.<br />** Supports 4K@60Hz as specified in HDMI<br />2.1.<br />*** Supports max. 4K@60Hz as specified in<br />DisplayPort 1.4a<br />**** VGA resolution support depends on<br />processors' or graphic cards' resolution. | ||
