Download Generated PDF Download Brochure GIGABYTE GB-BXI7-4500 *Aan onjuist vermelde foto’s, specificaties en prijzen kunnen geen rechten worden ontleend |

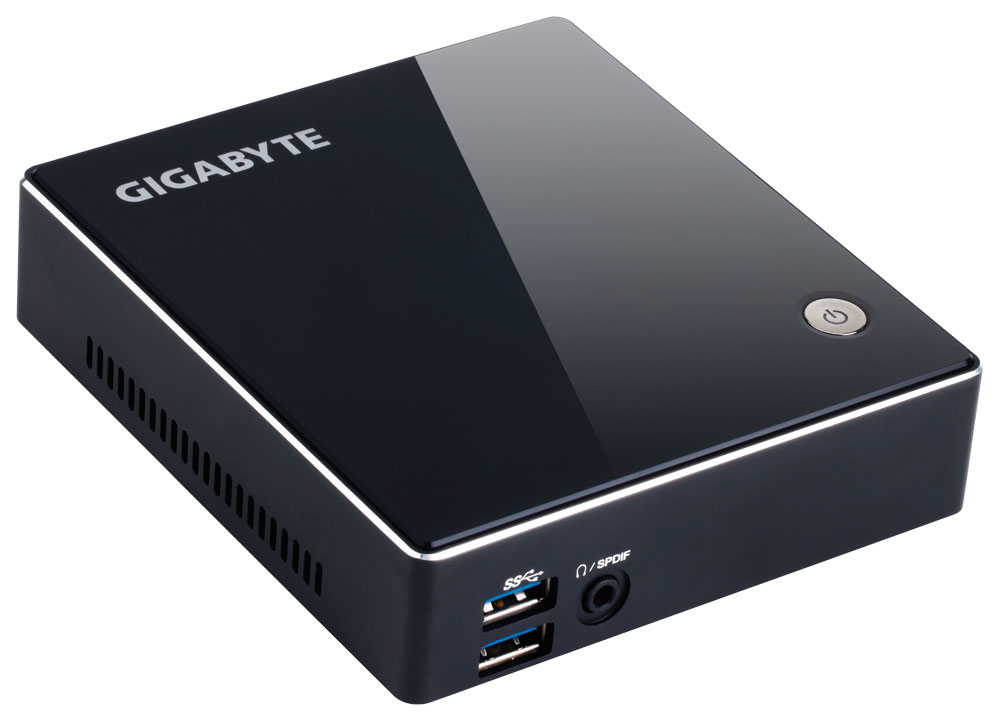

GIGABYTE Brix Nettop Zwart i7-4500U BGA 1168 1,8 GHz
GIGABYTE Brix. Type behuizing: Nettop, Type product: Mini PC barebone. Processor socket: BGA 1168. Ondersteunde geheugen types: DDR3-SDRAM, Aantal geheugenslots: 2, Maximum intern geheugen: 16 GB. Aantal Ethernet LAN (RJ-45)-poorten: 1. Bluetooth-versie: 4.0
Specificaties
| Processor | Geheugen | ||
| Processorfabrikant | Intel | Geheugen slots type | SO-DIMM |
| Processorfamilie | Intel® Core™ i7 | Aantal geheugenslots | 2 |
| Processorgeneratie | Vierde generatie Intel® Core™ i7 | Maximum intern geheugen | 16 GB |
| Processormodel | i7-4500U | Supported memory clock speeds | 1333,1600 MHz |
| Aantal processorkernen | 2 | Ondersteunde geheugen types | DDR3-SDRAM |
| Processor aantal threads | 4 | ||
| Maximale turbofrequentie van processor | 3 GHz | ||
| Frequentie van processor | 1,8 GHz | ||
| Processor lithografie | 22 nm | ||
| Thermal Design Power (TDP) | 15 W | ||
| Codenaam processor | Haswell | ||
| Processorserie | Intel Core i7-4500 Mobile series | ||
| CPU configuratie (max) | 1 | ||
| Grafisch | Prestatie | ||
| Ingebouwde grafische adapter | Ja | Processor socket | BGA 1168 |
| Grafische adapter-familie | Intel | Aantal ondersteunde processoren | 1 |
| On-board graphics adapter model | Intel® HD Graphics 4400 | Compatibele processors | Intel® Core™ i7 |
| Ondersteunde processor frequentie ( max) | 3 GHz | ||
| Audiosysteem | Realtek ALC269 | ||
| Netwerk | Poorten & interfaces | ||
| Ethernet LAN | Ja | Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 4 |
| Wifi | Ja | Aantal HDMI-poorten | 1 |
| Netwerkfuncties | 802.11b/g/n | Mini DisplayPort kwantiteit | 1 |
| LAN controller | Realtek RTL8111G | Hoofdtelefoonuitgangen | 1 |
| Bluetooth | Ja | Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Bluetooth-versie | 4.0 | S/PDIF-uitgang | Ja |
| Uitbreidingsmodules | Design | ||
| PCI Express slots versie | 2.0 | Type behuizing | Nettop |
| Mini PCI Express slots | 1 | Kleur van het product | Zwart |
| PCI Express configuraties | 2×4 | Paneelmontage-interface | 75 x 75,100 x 100 mm |
| Type product | Mini PC barebone | ||
| Processor speciale functies | Overige specificaties | ||
| Intel® High Definition Audio (Intel® HD Audio) | Ja | Aantal geïnstalleerde processoren | 1 |
| Ingebouwde opties beschikbaar | Nee | Afmetingen (B x D x H) | 29,9 x 107,6 x 114,4 mm |
| Intel® Rapid Storage Technology | Ja | Stroomvoorziening | 100 – 240V AC |
| Intel® Anti-Theft Technology (Intel® AT) | Ja | Aantal producten inbegrepen | 1 stuk(s) |
| Intel® AES New Instructions (Intel® AES-NI) | Ja | ||
| Intel® Quick Sync Video Technology | Ja | ||
| Intel® InTru™ 3D Technology | Ja | ||
| Intel® Insider™ | Ja | ||
| Intel® Wireless Display (Intel® WiDi) | Ja | ||
| Intel® FDI Technology | Ja | ||
| Intel® Clear Video HD Technology (Intel® CVT HD) | Ja | ||
| Intel® Turbo Boost Technology | 2.0 | ||
| Intel® Hyper Threading Technology (Intel® HT Technology) | Ja | ||
| Intel® Virtualization Technology for Directed I/O (VT-d) | Nee | ||
| Intel® VT-x with Extended Page Tables (EPT) | Ja | ||
| Intel® 64 | Ja | ||
| Intel® My WiFi Technology (Intel® MWT) | Ja | ||
| Idle States | Ja | ||
| Enhanced Intel SpeedStep Technology | Ja | ||
| Thermal Monitoring Technologies | Ja | ||
| Intel® Identity Protection Technology (Intel® IPT) | Ja | ||
| Intel® Trusted Execution Technology | Nee | ||
| Execute Disable Bit | Ja | ||
| Intel® TSX-NI | Nee | ||
| Intel® ME Firmware-versie | 9.5 | ||
| Intel® Matrix Storage Technology (Intel® MST) | Ja | ||
| Intel® Smart Connect Technology | Ja | ||
| Intel® Secure Key | Ja | ||
| Intel® Virtualization Technology (VT-x) | Ja | ||
