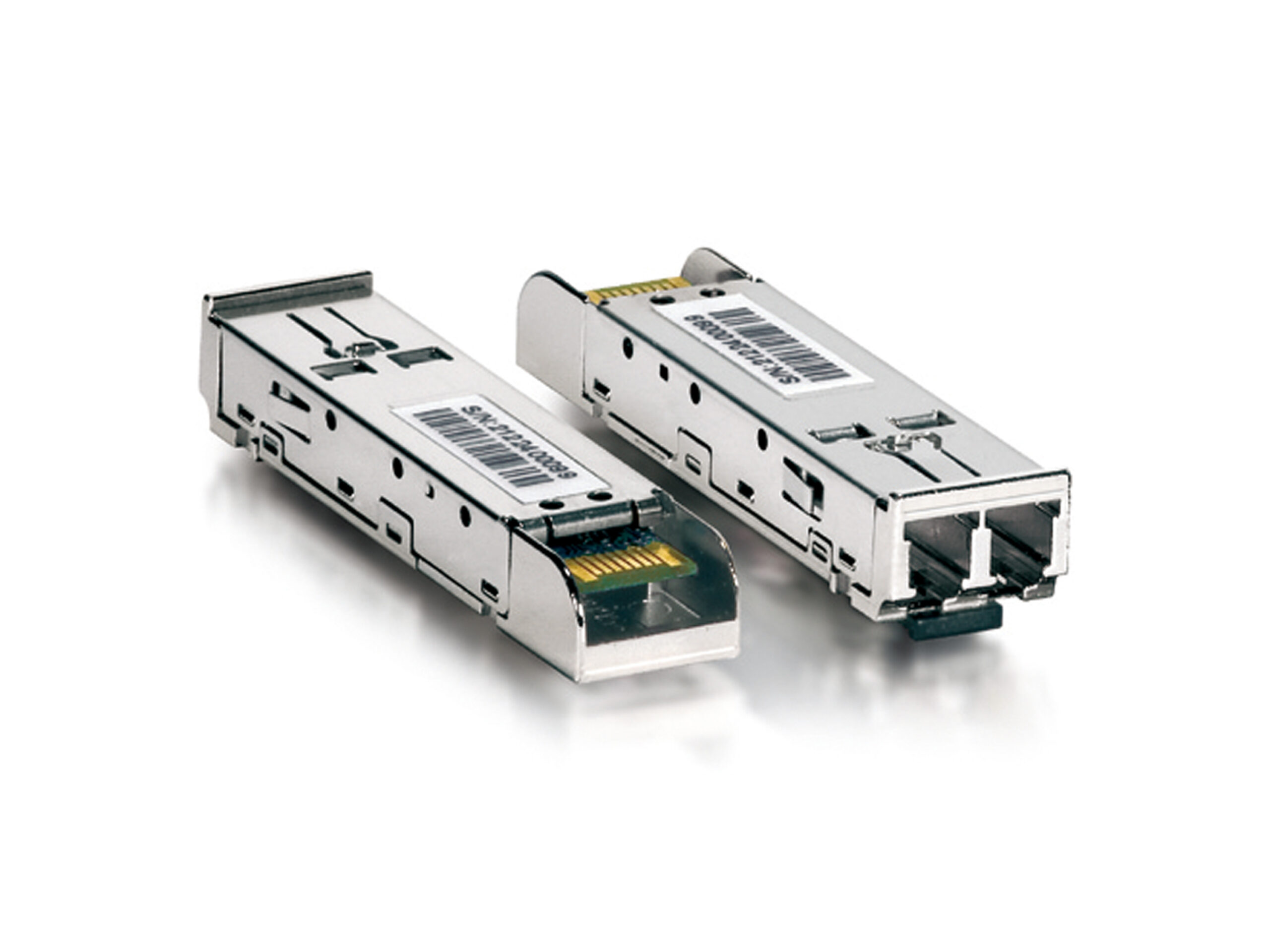

LevelOne GVT-0300 netwerk transceiver module Vezel-optiek 1250 Mbit/s SFP 850 nm
– Small Form Factor Pluggable MSA compliant
– For Multi-mode Applications
– Up to 850nm & 1.25Gbps
– Compliant for IEEE802.3z Gigabit Ethernet
– Easy to install and Hot-pluggable
– Connect switches up to 550m away with each other
– Single 3.3V power supply
– Duplex LC Connector
– TTL signal detect indicator
– EEPROM with serial ID functionality
Product Overview
The LevelOne GVT-0300 SFP (Small form-factor pluggable) fiber optic transceiver provides fullduplex connectivity over multi-mode fiber at distances up to 550 meters. GVT-0300 is designed for use in Gigabit Ethernet networks to provide an IEEE-802.3z-compliant link for 1.25 Gb/s speeds to serve short-range applications. GVT-0300 operates at a nominal wavelength of 850nm and complies with a Multi-Source Agreement (MSA) for compatibility between manufacturers. It comes with a click-and-latch
LC connector for a solid connection into the SFP port.
Multi-Purpose Usage
GVT-0300 can be used for distributed multiprocessing, switch-to-switch, converterto-switch, or converter-to converter interfaces, high-speed I/O file transfer, bus extension applications, and as a channel extender in data storage applications.

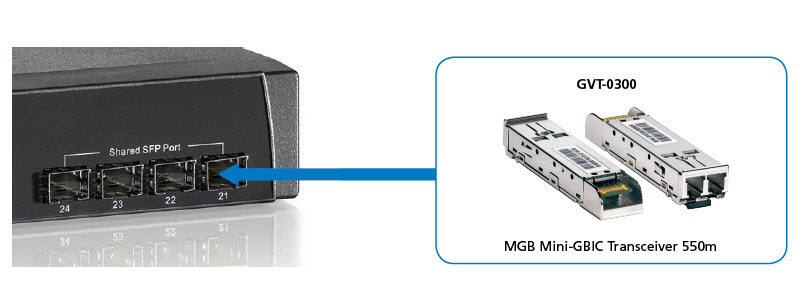

LevelOne GVT-0300 can be used in any LevelOne switch or converter that can accommodate SFP (Mini-GBIC) transceivers.
Specificaties
| Prestatie | Kenmerken | ||
| SFP transceiver type | Vezel-optiek | Hot-plug ondersteuning | Ja |
| Maximale overdrachtssnelheid van gegevens | 1250 Mbit/s | Compatibele producten | GSW-2453 GVT-4000 |
| Soort aansluiting | SFP | ||
| Multi-mode glasvezelkabel (MMF) ondersteund | Ja | ||
| Vezel-optische connector | LC | ||
| Vezelkabel diameters ondersteund | 50/125,62.5/125 µm | ||
| SFP-zendernorm | SX | ||
| Maximaal bereik | 550 m | ||
| Golflengte | 850 nm | ||
| Tx vermogen (min) | -9,5 dBmW | ||
| Tx vermogen (max) | -4 dBmW | ||
| Link budget | 8,5 dB | ||
| Netwerkstandaard | IEEE 802.3z | ||
| Energie | Certificaten | ||
| Ingangsspanning | 3.5 V | Certificering | Class 1 Laser: EN60825-1 FDA 21: 1040.10, 1040.11 |
| Maximaal voltage | 6 V | ||
| Stroom (max.) | 0,3 A | ||
| Eisen aan de omgeving | Gewicht en omvang | ||
| Bedrijfstemperatuur (T-T) | 0 – 70 °C | Breedte | 13,4 mm |
| Relatieve vochtigheid in bedrijf (V-V) | 5 – 90 procent | Diepte | 56,6 mm |
| Hoogte | 8,4 mm | ||
| Inhoud van de verpakking | Verpakking | ||
| Aantal per verpakking | 1 stuk(s) | Breedte verpakking | 155 mm |
| Diepte verpakking | 50 mm | ||
| Hoogte verpakking | 230 mm | ||
| Logistieke gegevens | |||
| Code geharmoniseerd systeem (HS) | 85369010 | ||
| Land van herkomst | Taiwan | ||
