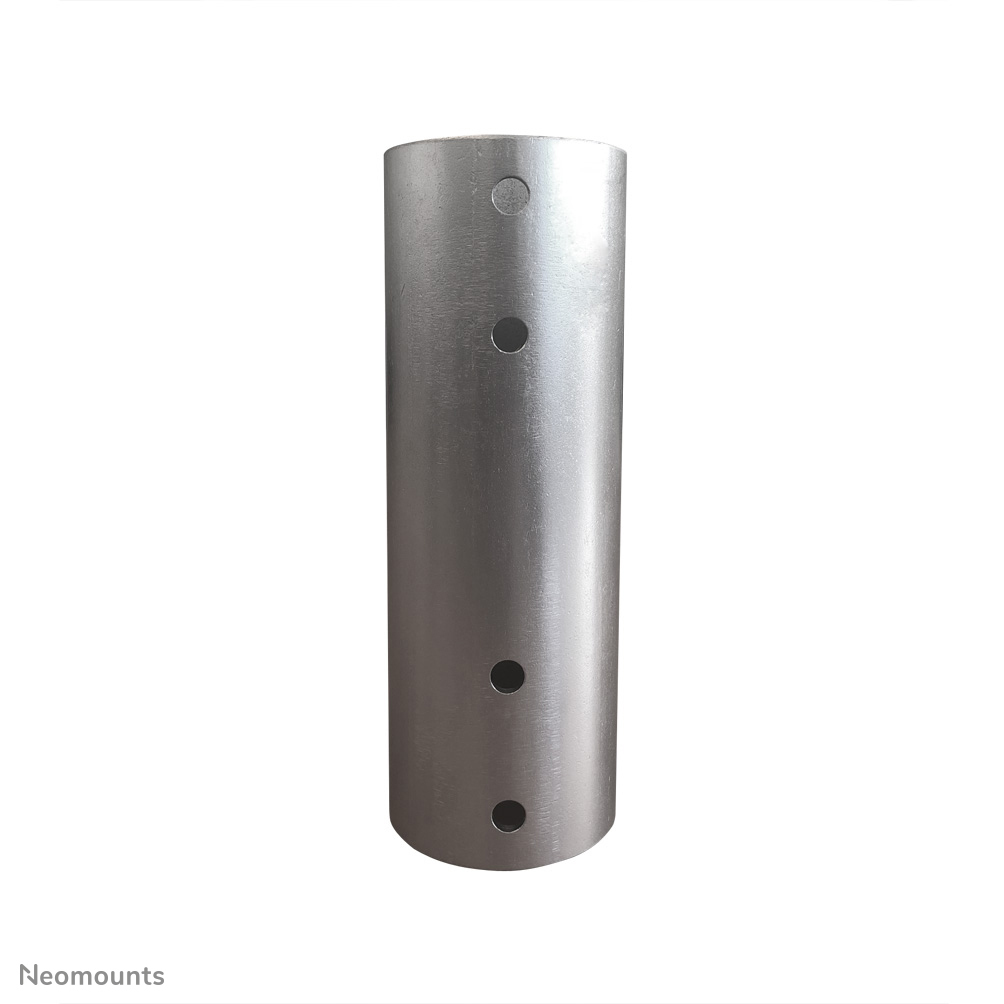

Neomounts FPMA-CPCONNECTSILVER Verlengbuis koppelstuk

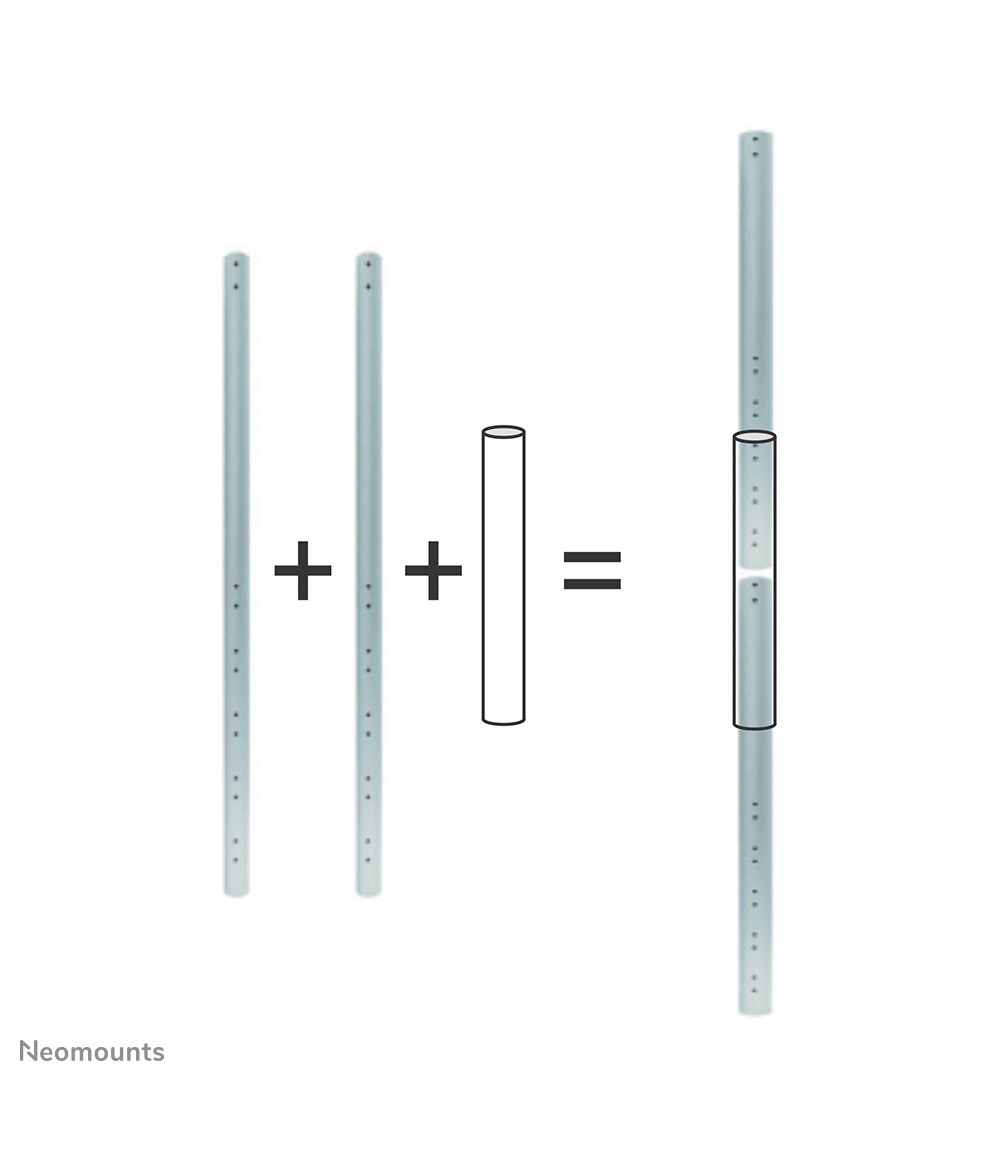

This Neomounts flat screen pole connector, model FPMA-CPCONNECTSILVER, allows you to connect multiple poles to stretch the distance from the flat screen to the ceiling using different pole lengths. Ideal with the use of high ceilings.
This connector joins different length poles to stretch the distance even further than the offered standard length poles available. The connector tube is equipped with cable management. Hide your cables in the column to keep it nice and tidy.
Neomounts connector is available for Neomounts extension tubes FPMA-CP100, 150 and 200.
Different models and lengths poles available to suit following flat screen mounts: FPMA-C200BLACK, FPMA-C200D, FPMA-C400BLACK, PLASMA-C100BLACK & PLASMA-C100D. Model PLASMA-C100BLACK & PLASMA-C100D need two poles!
All installation material is included with the product.
Specificaties
| Kenmerken | Gewicht en omvang | ||
| Kleur van het product | Zilver | Breedte | 60 mm |

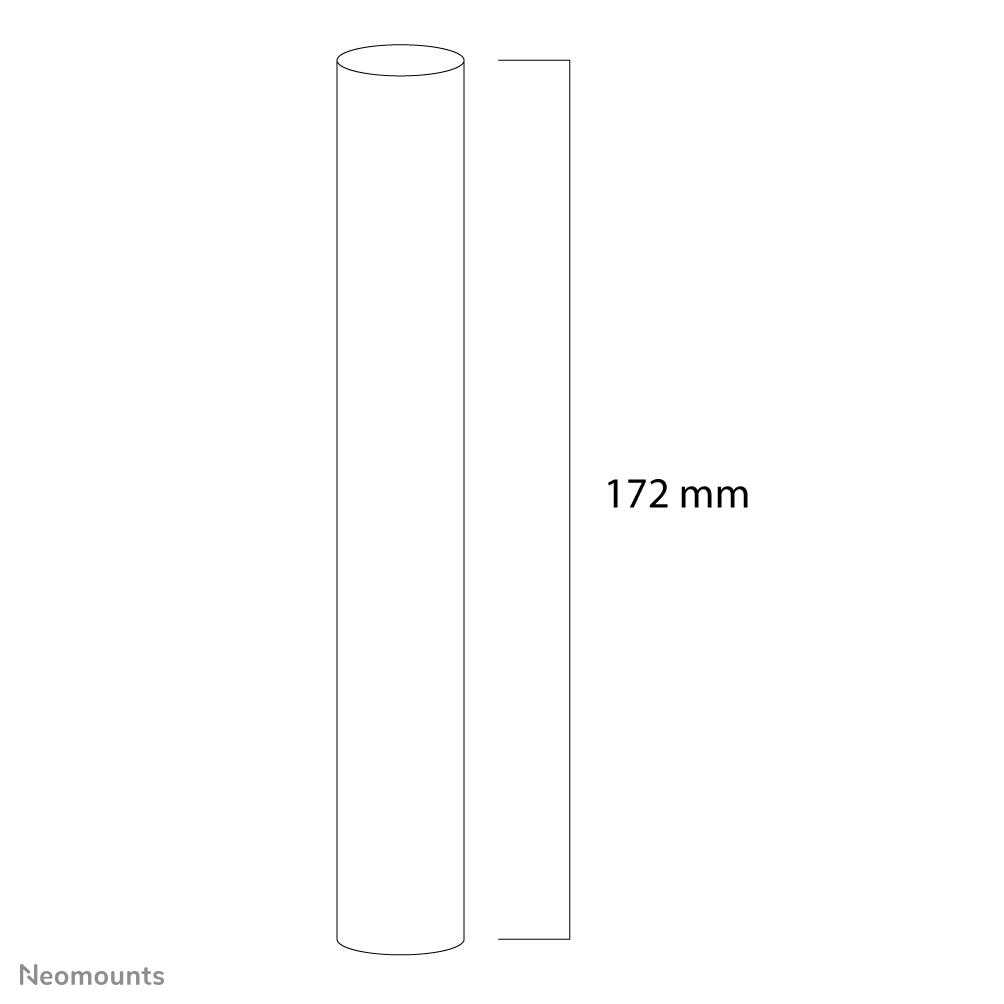

| Materiaal behuizing | Staal | Hoogte | 172 mm |
| Maximale gewichtscapaciteit | 50 kg | ||
| Montagewijze | Plafond | ||
| Hoogte verstelbaarheidsbereik | 0 – 172 mm | ||
| Verstelbare breedte | Ja | ||
| Breedte instelbereik | 0 – 60 mm | ||
| Compatibiliteit | FPMA-CP100, FPMA-CP150, FPMA-CP200, FPMA-CP250, FPMA-CP350 FPMA-C200BLACK, FPMA-C200D, FPMA-C400BLACK, PLASMA-C100BLACK & PLASMA-C100D. PLASMA-C100BLACK, PLASMA-C100D |
||
| Verpakking | Technische details | ||
| Hoogte verpakking | 90 mm | Land van herkomst | Nederland |
| Breedte verpakking | 225 mm | ||
| Diepte verpakking | 150 mm | ||
| Netto gewicht pakket | 800 g | ||
| Gewicht verpakking | 800 g | ||
| Logistieke gegevens | |||
| Netto gewicht kartonnen doos | 800 g | ||
| Code geharmoniseerd systeem (HS) | 7326909890 | ||
| (Buitenste) hoofdverpakking brutogewicht | 800 g | ||
| Hoeveelheid per (buitenste) hoofdverpakking | 1 stuk(s) | ||
| Producten per pallet (EU) | 468 stuk(s) | ||
