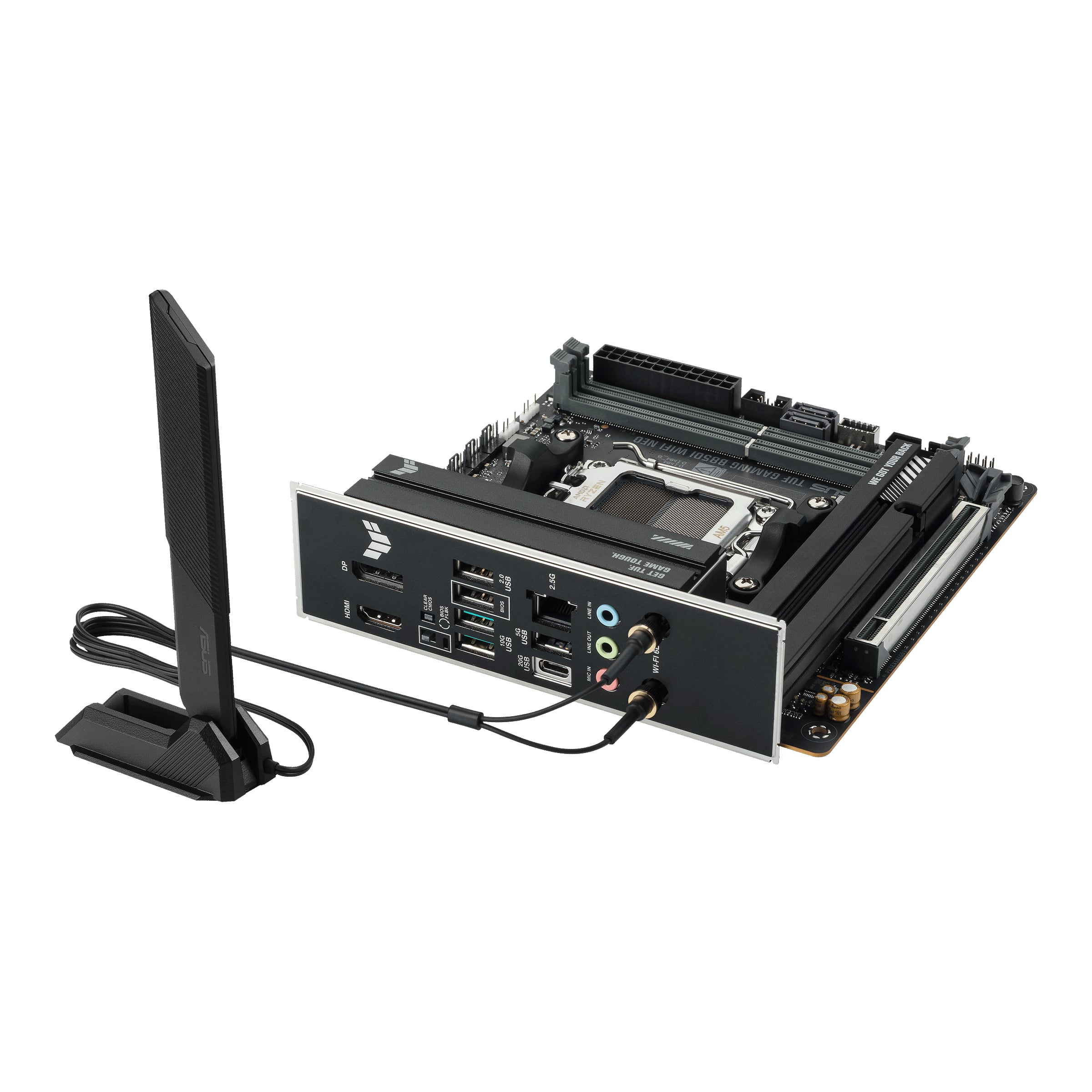

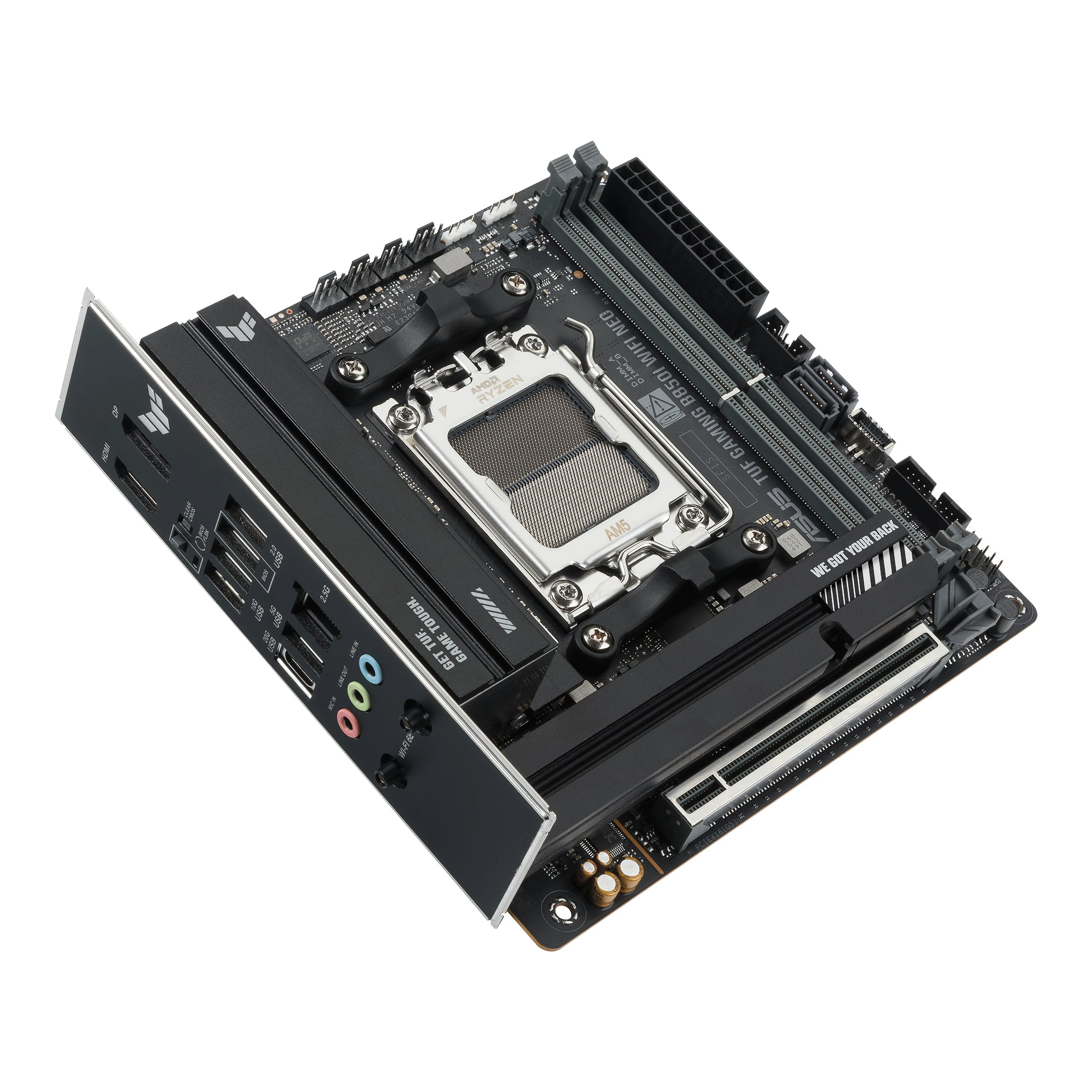

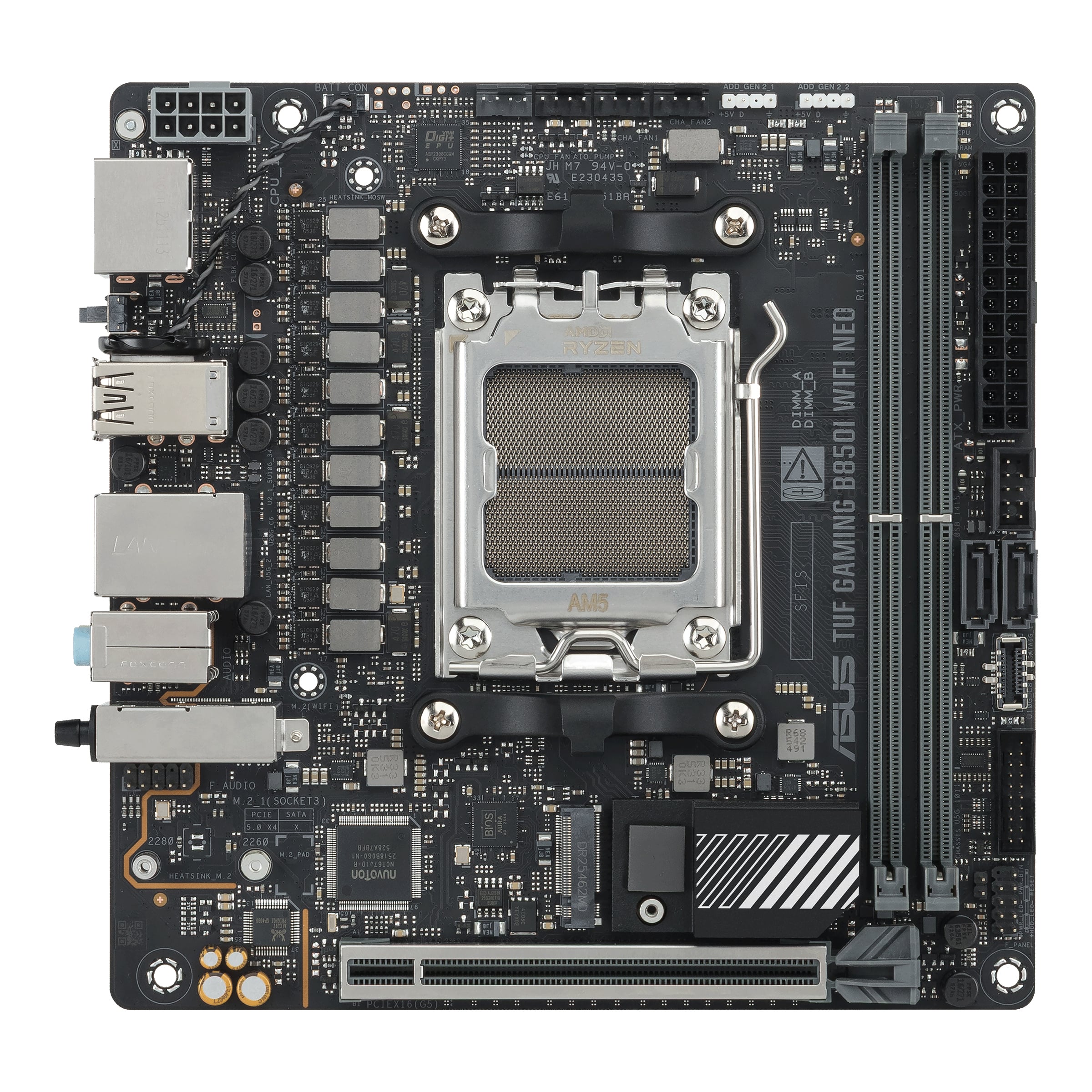

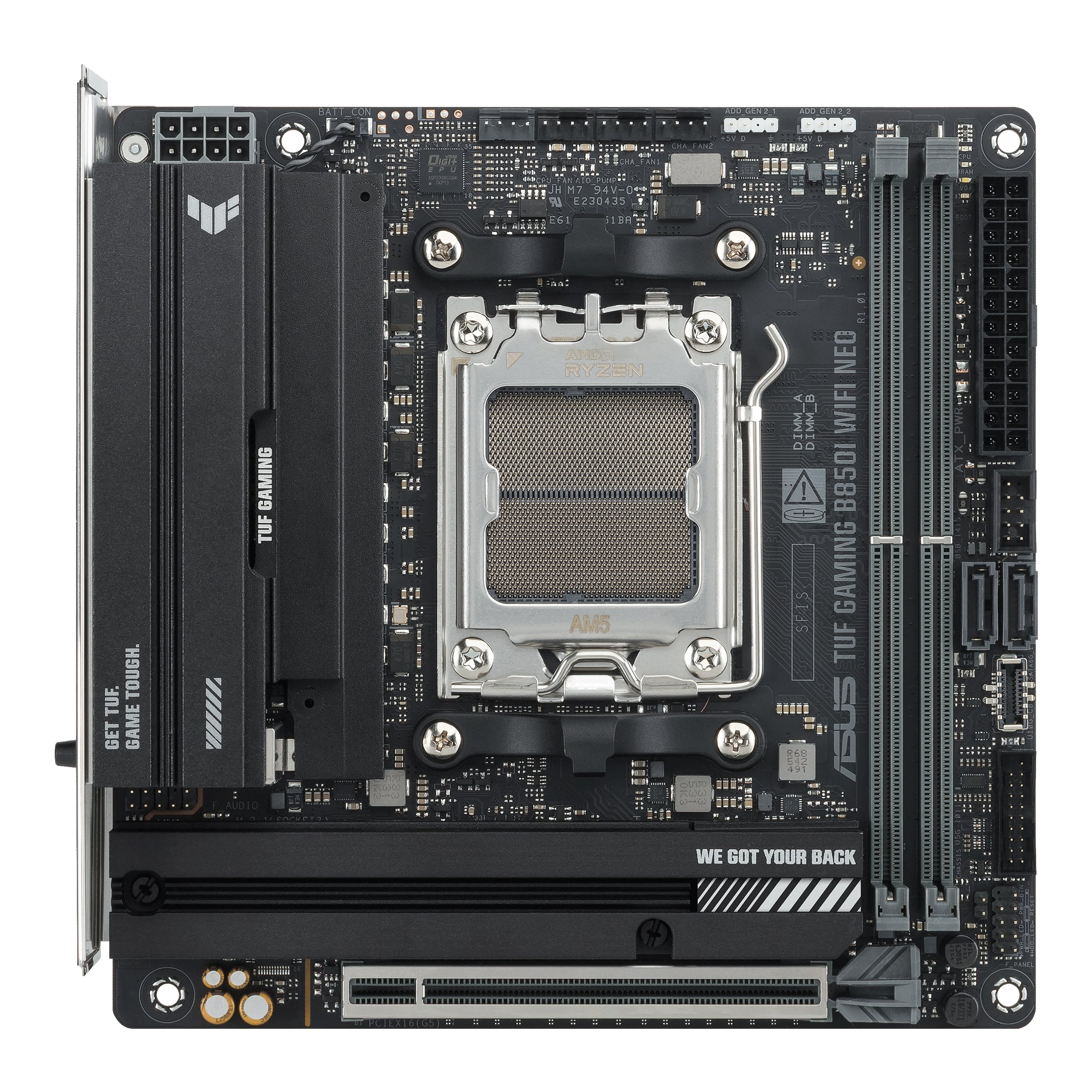

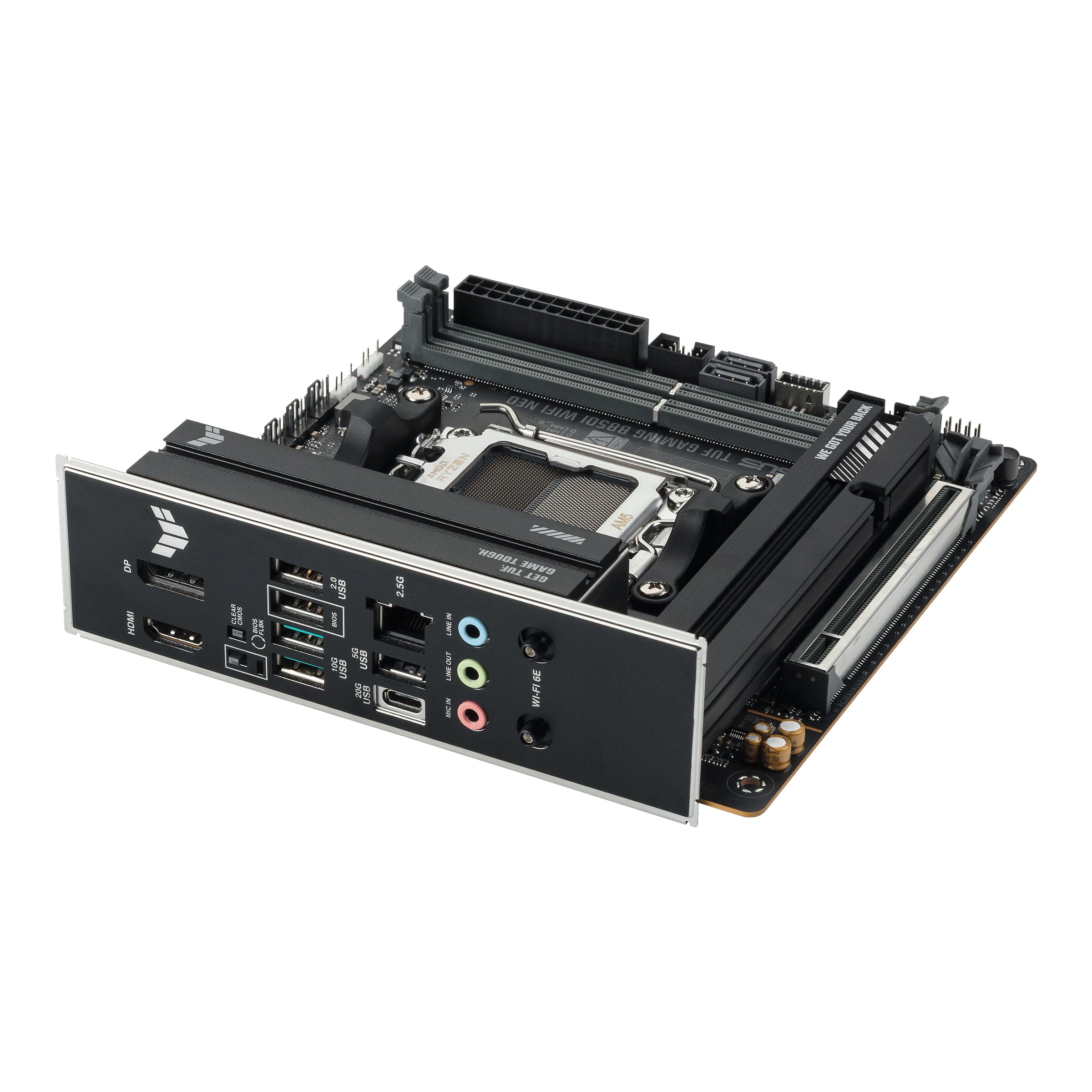

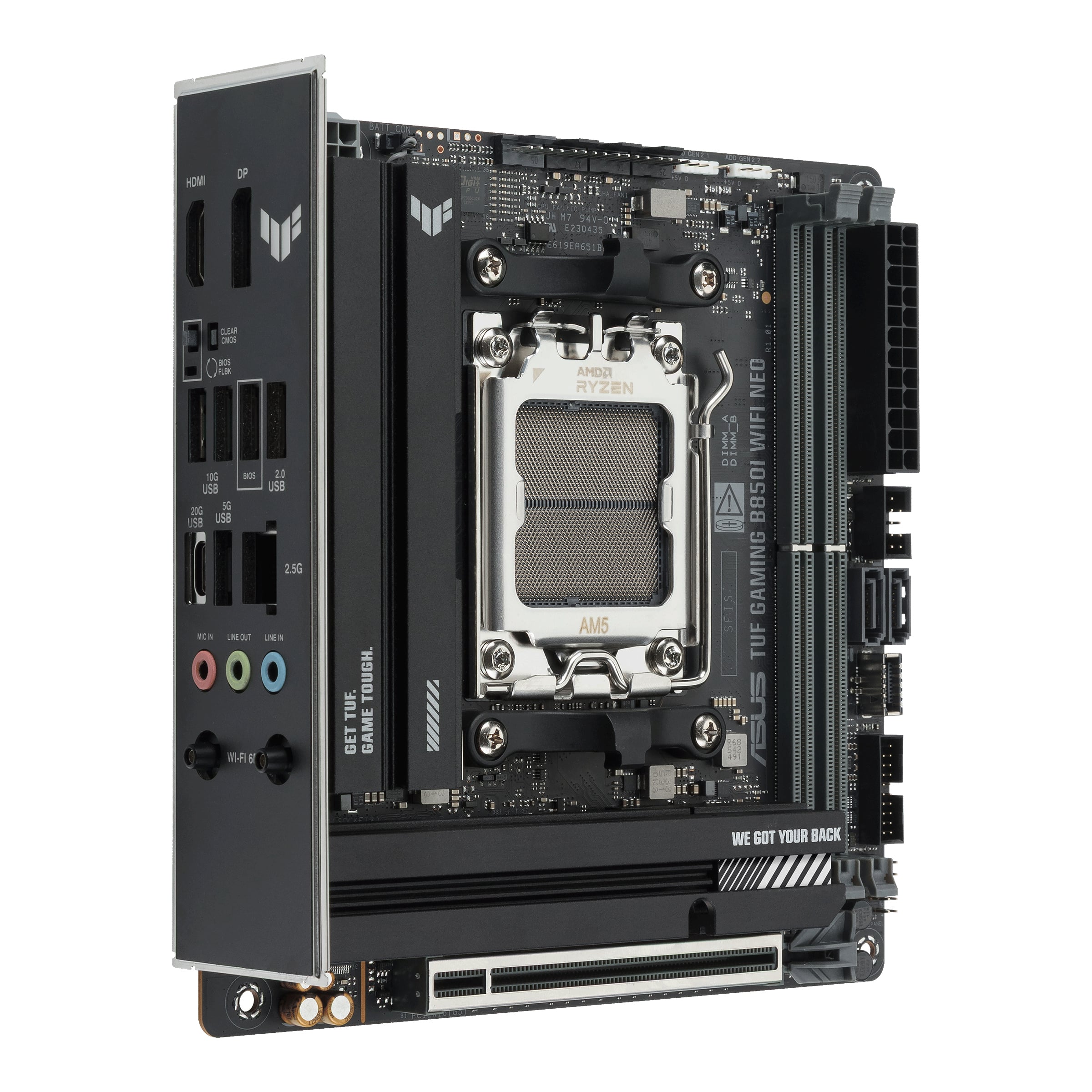

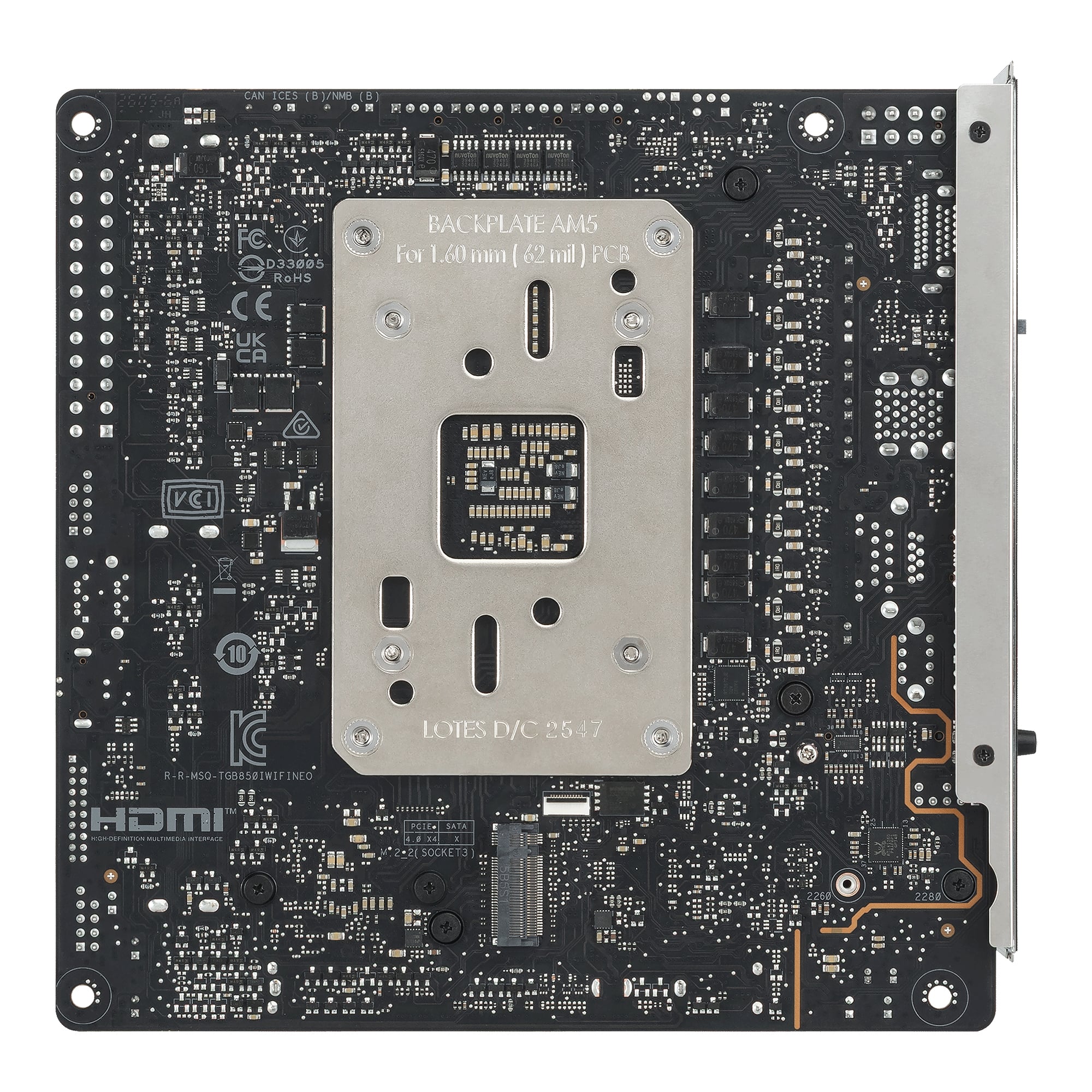

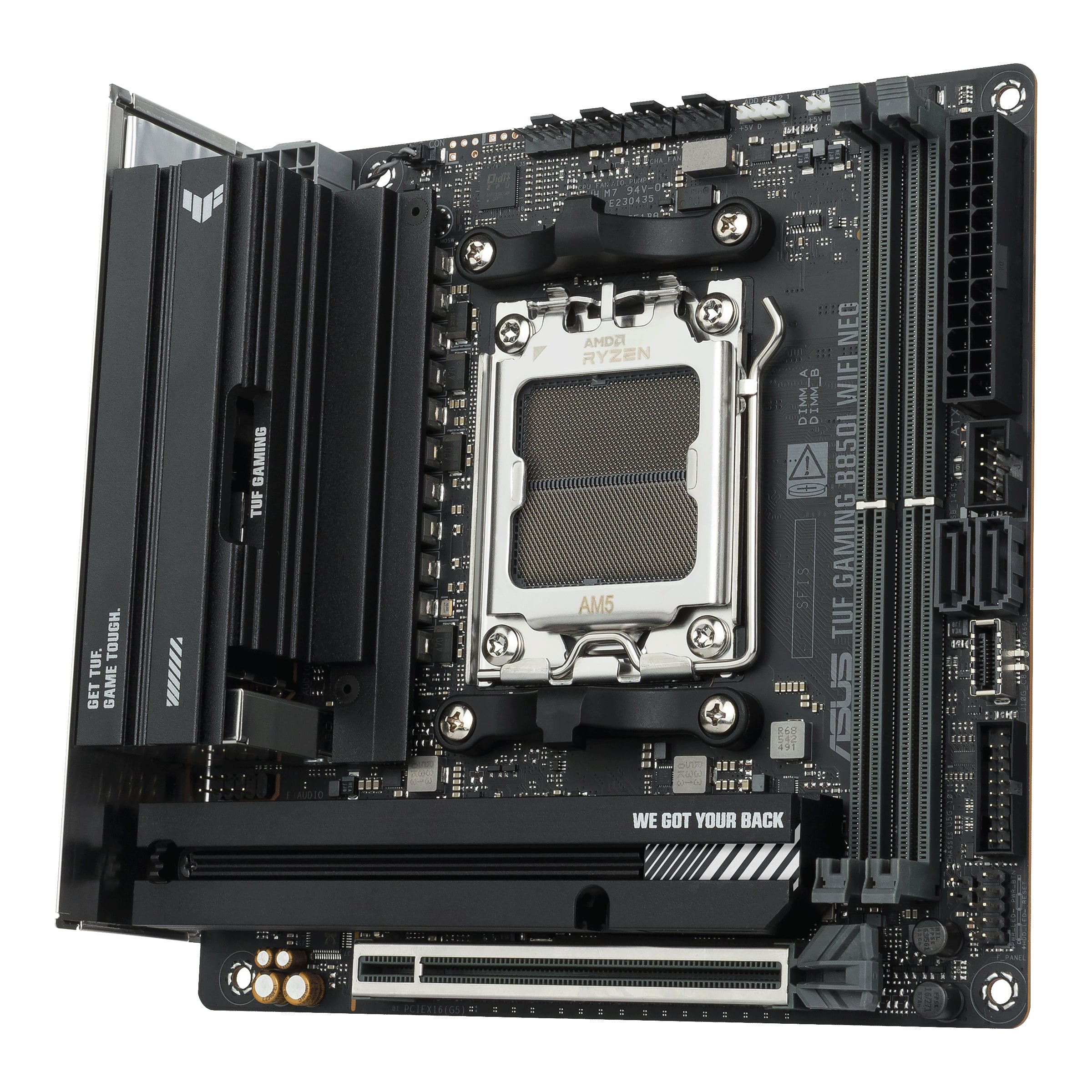

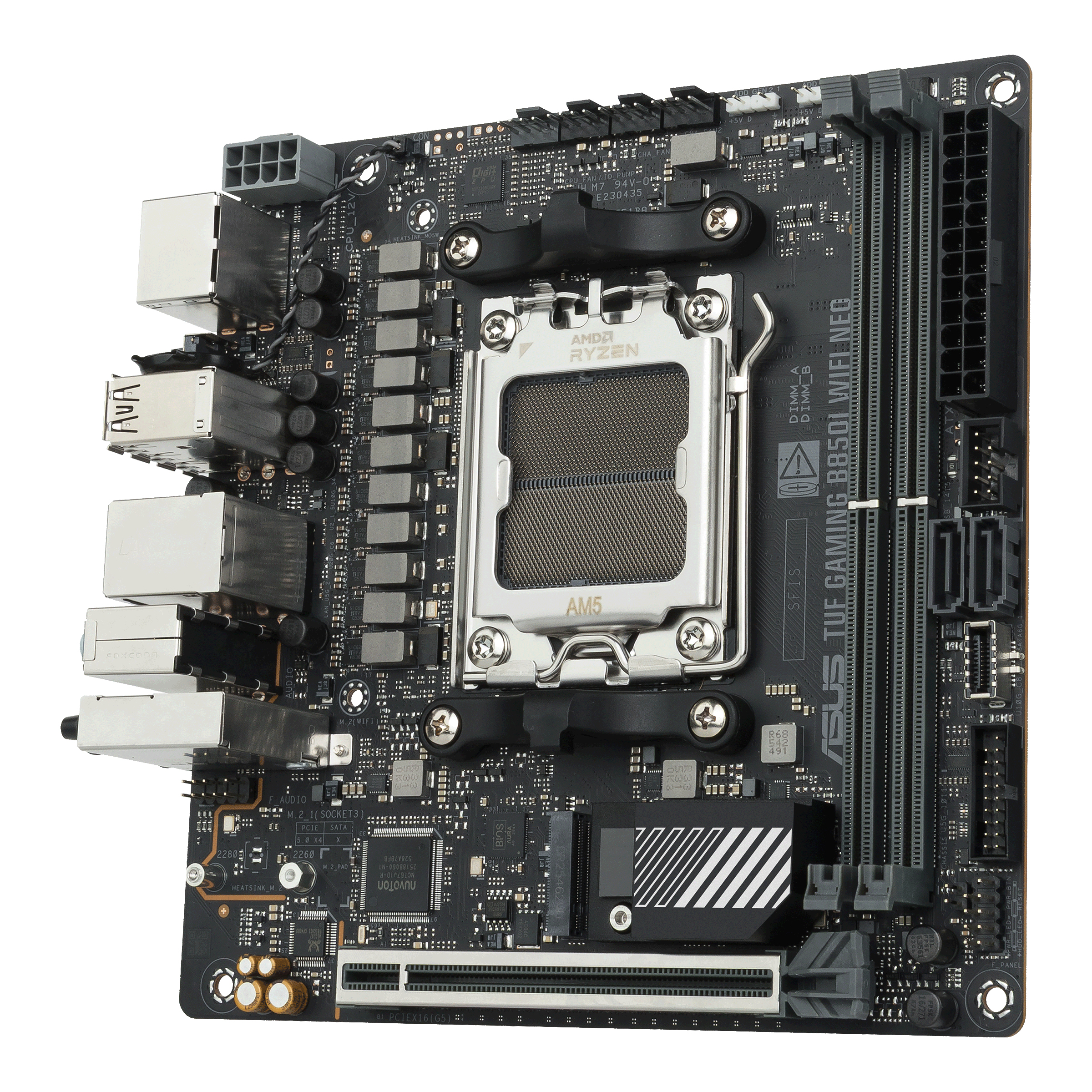

ASUS TUF GAMING B850I WIFI NEO AMD B850 Socket AM5 mini ITX
ASUS TUF GAMING B850I WIFI NEO. Processorfabrikant: AMD, Processor socket: Socket AM5, Compatibele processors: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Ondersteunde geheugen types: DDR5-SDRAM, Maximum intern geheugen: 128 GB, Geheugen slots type: DIMM. Ondersteunde opslagstationinterfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Ondersteunde types opslag-drives: HDD & SSD, Soorten RAID: 0, 1, 5, 10. Maximum resolutie: 7680 x 4320 Pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Wifi-standaard: Wi-Fi 6E (802.11ax), Wi-Fi-standaarden: Wi-Fi 6E (802.11ax)
Specificaties
| Processor | Geheugen | ||
| Processorfabrikant | AMD | Ondersteunde geheugen types | DDR5-SDRAM |
| Processor socket | Socket AM5 | Aantal geheugenslots | 2 |
| Compatibele processors | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series | Geheugen slots type | DIMM |
| Supported processor sockets | Socket AM5 | Geheugen kanaal | Dubbelkanaals |
| ECC-compatibiliteit | ECC & Niet-ECC | ||
| Ondersteunde geheugenkloksnelheid (max) | 9600 MHz | ||
| Maximum intern geheugen | 128 GB | ||
| Niet gebufferd geheugen | Ja | ||
| Maximaal intern geheugen per slot | 64 GB | ||
| Opslag-controllers | Grafisch | ||
| Ondersteunde types opslag-drives | HDD & SSD | Ondersteuning voor parallel processing | Niet ondersteund |
| Ondersteunde opslagstationinterfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III | Maximum resolutie | 7680 x 4320 Pixels |
| Maximum aantal HDD's per behuizing | 2 | ||
| Aantal storage drives ondersteund | 4 | ||
| RAID support | Ja | ||
| Soorten RAID | 0, 1, 5, 10 | ||

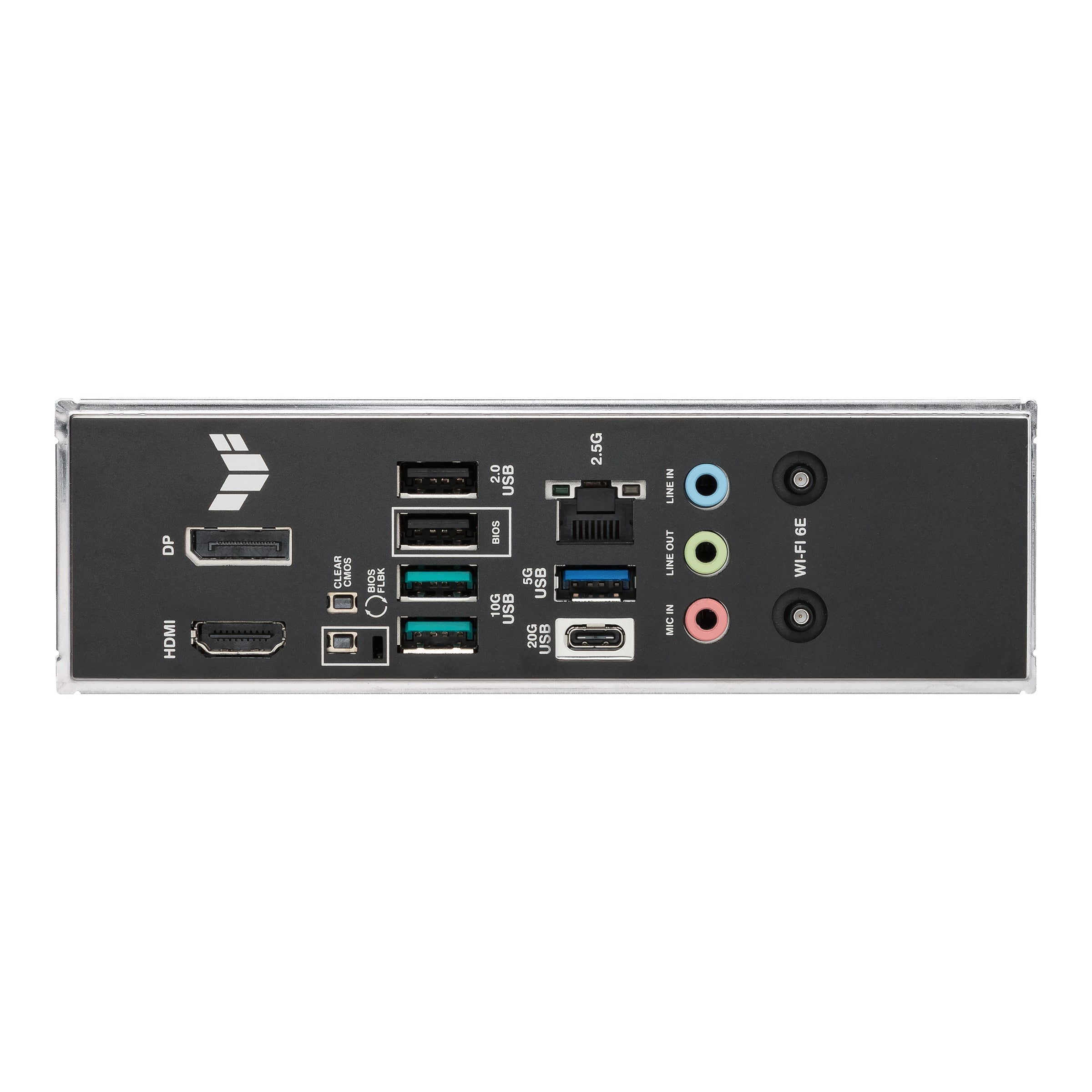

| Interne aansluitingen | Aansluitingen achterzijde | ||
| USB 2.0 aansluitingen | 1 | Aantal USB 2.0-poorten | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 1 | Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 1 |
| USB 3.2-connectoren (3.1 Gen 2) | 1 | Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 2 |
| Aantal SATA III connectors | 2 | Aantal USB 3.2 Gen 2.2 Type-C-poorten | 1 |
| Aansluiting voor audiopaneel aan voorzijde | Ja | Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Voorpaneel-connector | Ja | Aantal HDMI-poorten | 1 |
| ATX Power connector (24-pin) | Ja | HDMI versie | 2.1 |
| Aansluiting voor CPU koeler | Ja | Aantal DisplayPorts | 1 |
| Aantal CPU-ventilatoraansluitingen | 1 | DisplayPort versie | 1.4 |
| Aansluitingen voor behuizingsventilatoren | 2 | Hoofdtelefoonuitgangen | 1 |
| Chassis intrusion aansluiting | Ja | Lijningang | Ja |
| EPS power connector (8-pin) | Ja | Microfoon, line-in ingang | Ja |
| Aantal EPS-voedingsaansluitingen (8-pins) | 1 | WiFi-AP antenna jack | 2 |
| 12V vermogen-connector | Ja | ||
| Aantal waterpompaansluitingen | 1 | ||
| RGB LED-aansluitrail | Ja | ||
| Aantal RGB LED-pinheaders | 2 | ||
| Netwerk | Kenmerken | ||
| Ethernet LAN | Ja | Chipset moederbord | AMD B850 |
| Ethernet interface type | 2.5 Gigabit Ethernet | Audio-uitgangskanalen | 7.1 kanalen |
| Wifi | Ja | Kleur van het product | Zwart |
| Wifi-standaard | Wi-Fi 6E (802.11ax) | Component voor | PC |
| Wi-Fi-standaarden | Wi-Fi 6E (802.11ax) | Moederbord form factor | mini ITX |
| Bluetooth | Ja | Moederbord chipset familie | AMD |
| Type koeling | Passief | ||
| Type stroombron | ATX | ||
| Ondersteunt Windows | Windows 11 | ||
| Uitbreidingsmodules | BIOS | ||
| PCI Express x16 (Gen 5.x) sleuven | 1 | BIOS type | UEFI AMI |
| Aantal M.2 (M) slots | 2 | Grootte BIOS-geheugen | 256 Mbit |
| 1e M.2 grootste sleutelgrootte | 2280 | BIOS-flashbackknop | Ja |
| 1e M.2 hoogste PCI Express-generatie | 5.0 | ||
| 2e M.2 grootste sleutelgrootte | 2280 | ||
| 2e M.2 hoogste PCI Express-generatie | 4.0 | ||
| Verpakking | Gewicht en omvang | ||
| Breedte verpakking | 219 mm | Breedte | 170 mm |
| Diepte verpakking | 277 mm | Diepte | 170 mm |
| Hoogte verpakking | 107 mm | Hoogte | 44 mm |
| Gewicht verpakking | 1,32 kg | ||

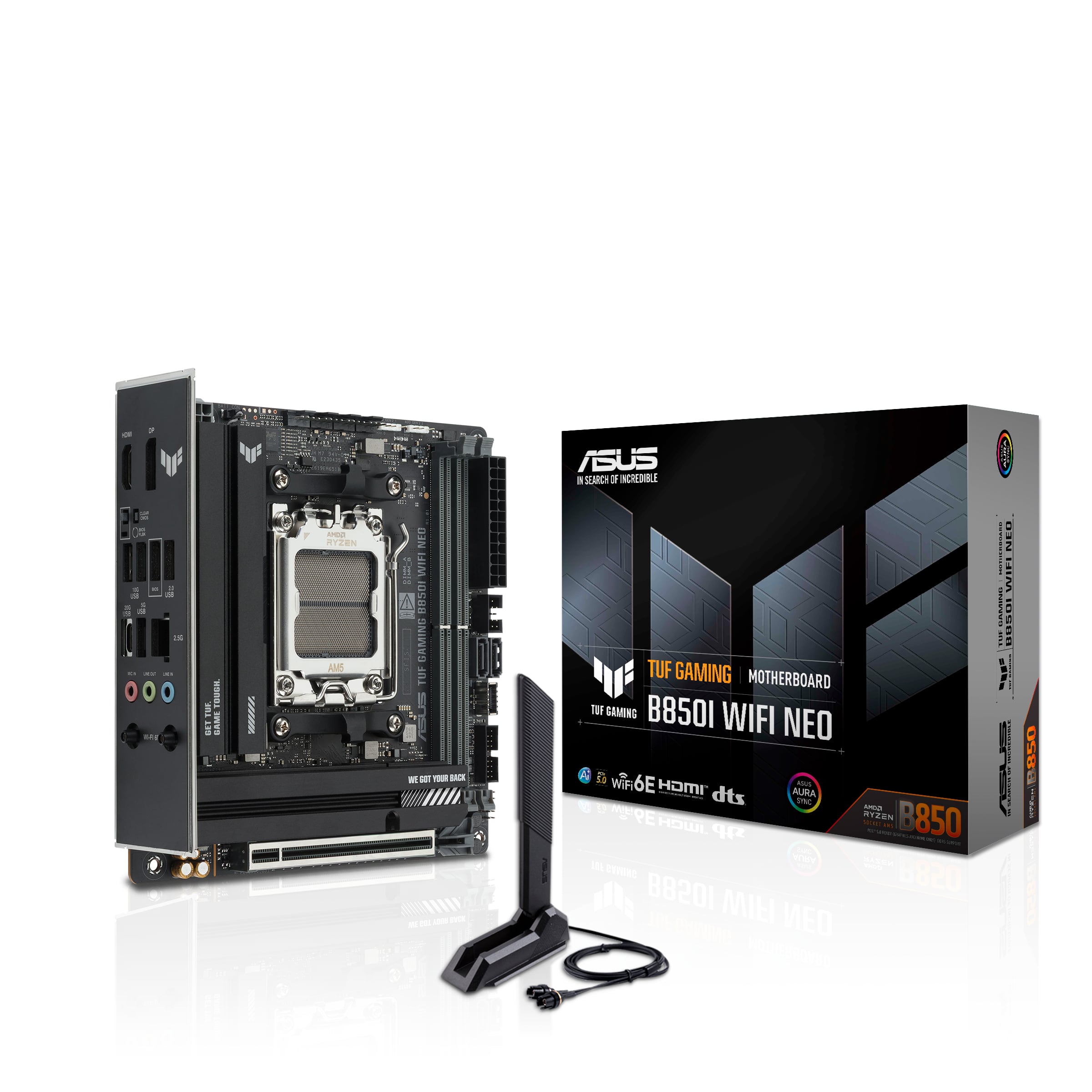

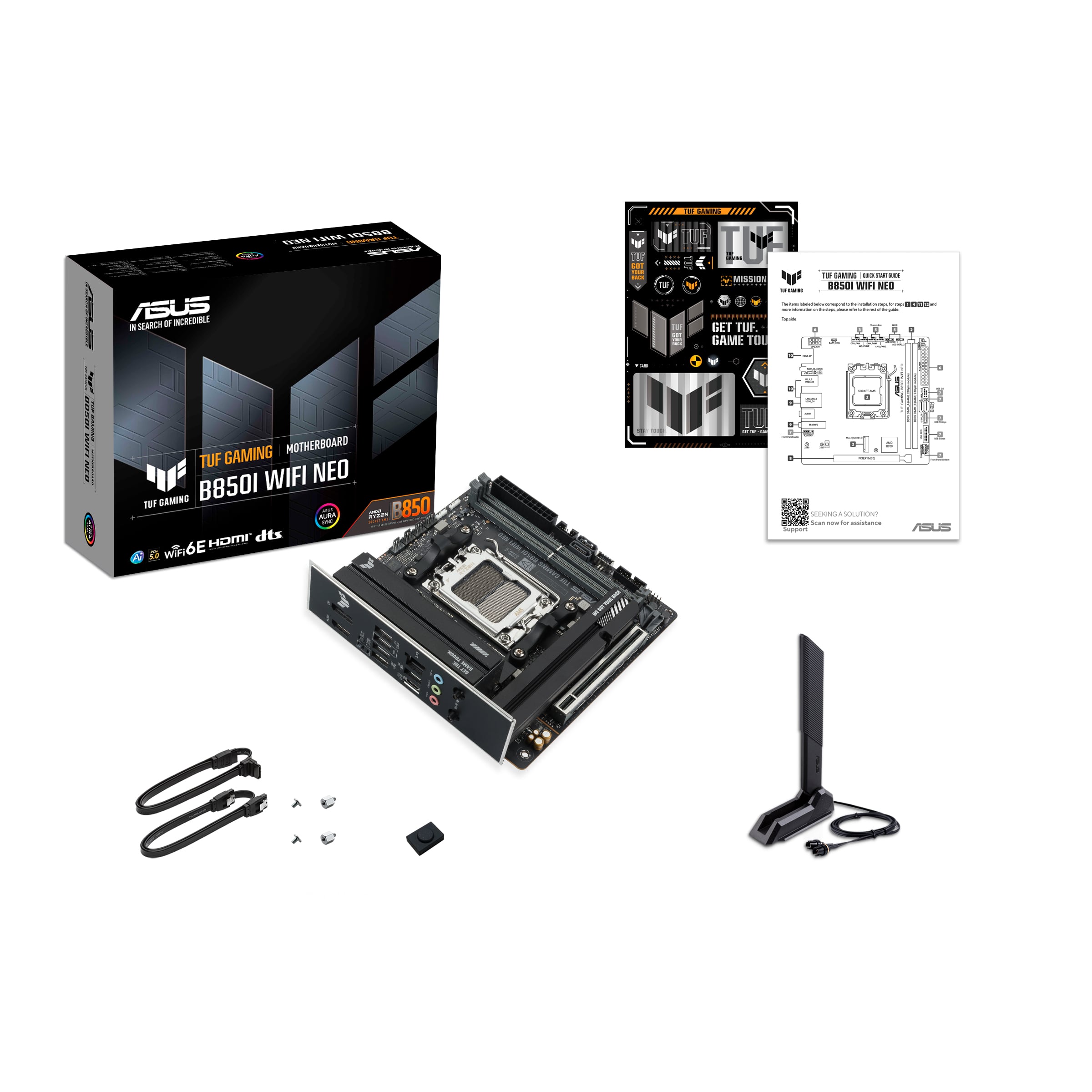

| Inhoud van de verpakking | Overige specificaties | ||
| Meegeleverde kabels | SATA | Gewicht | 720 g |
| Antenne inbegrepen | Ja | Snelle installatiehandleiding | Ja |
| Inclusief schroeven | Ja | ||
