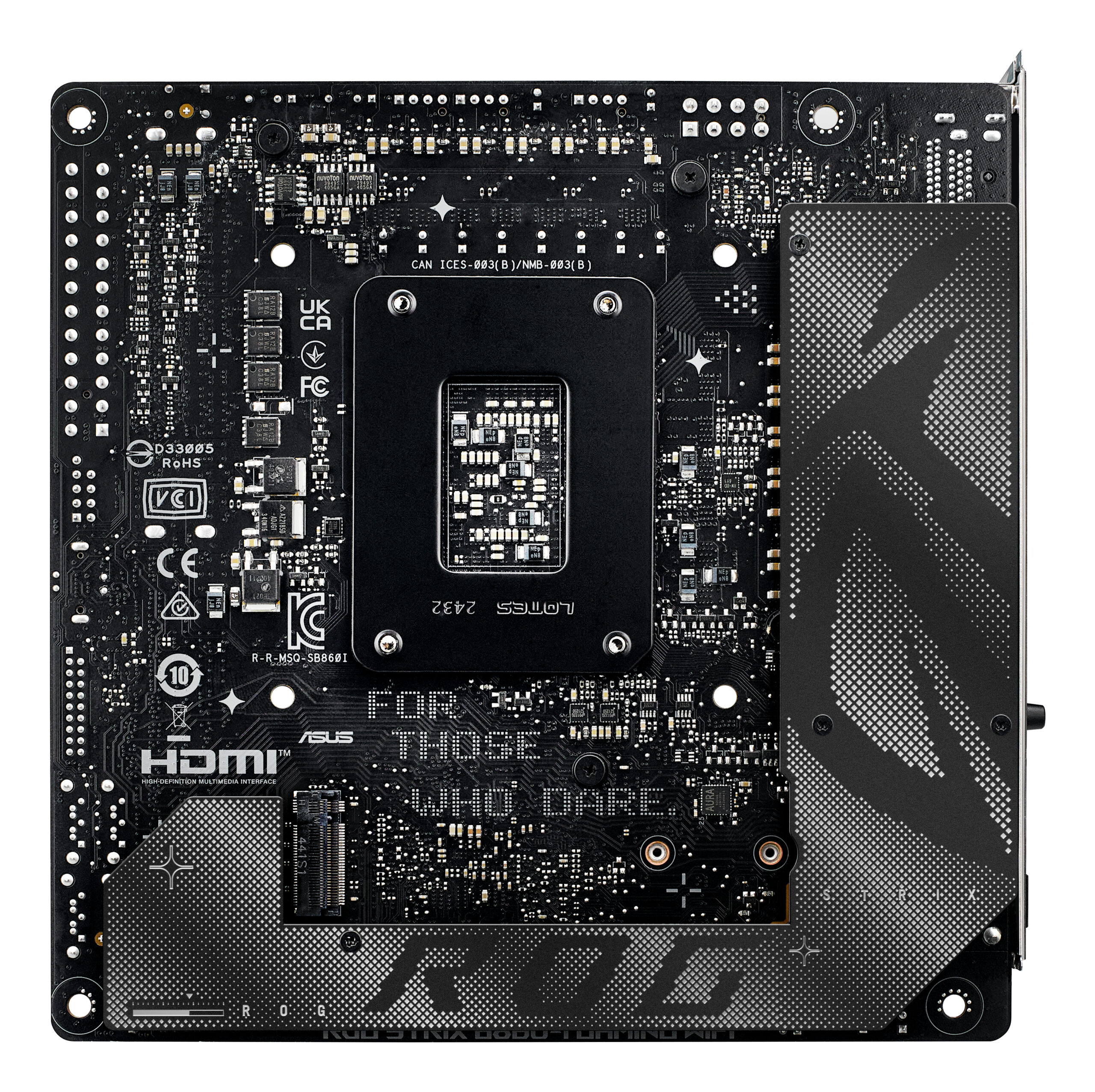

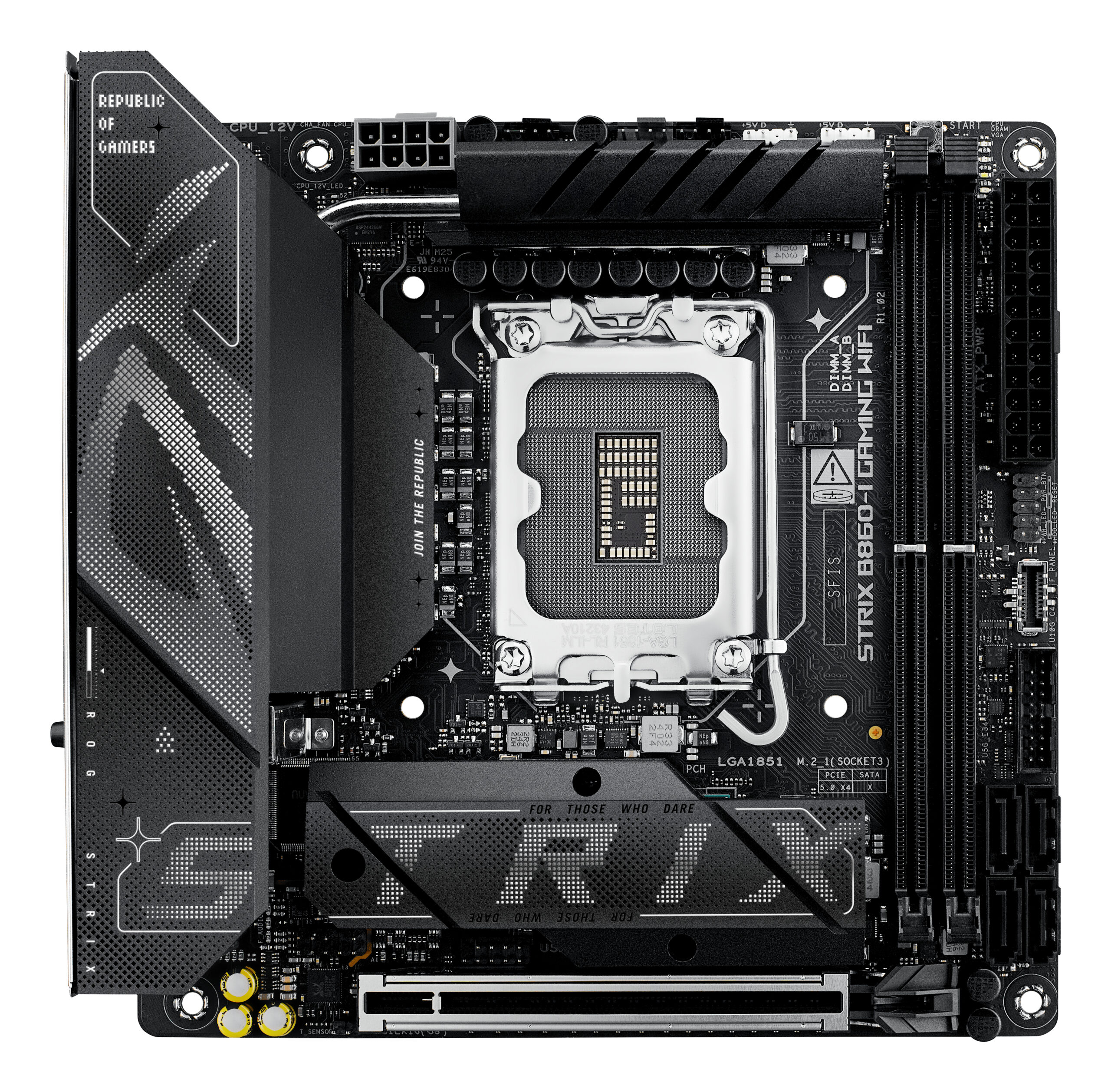

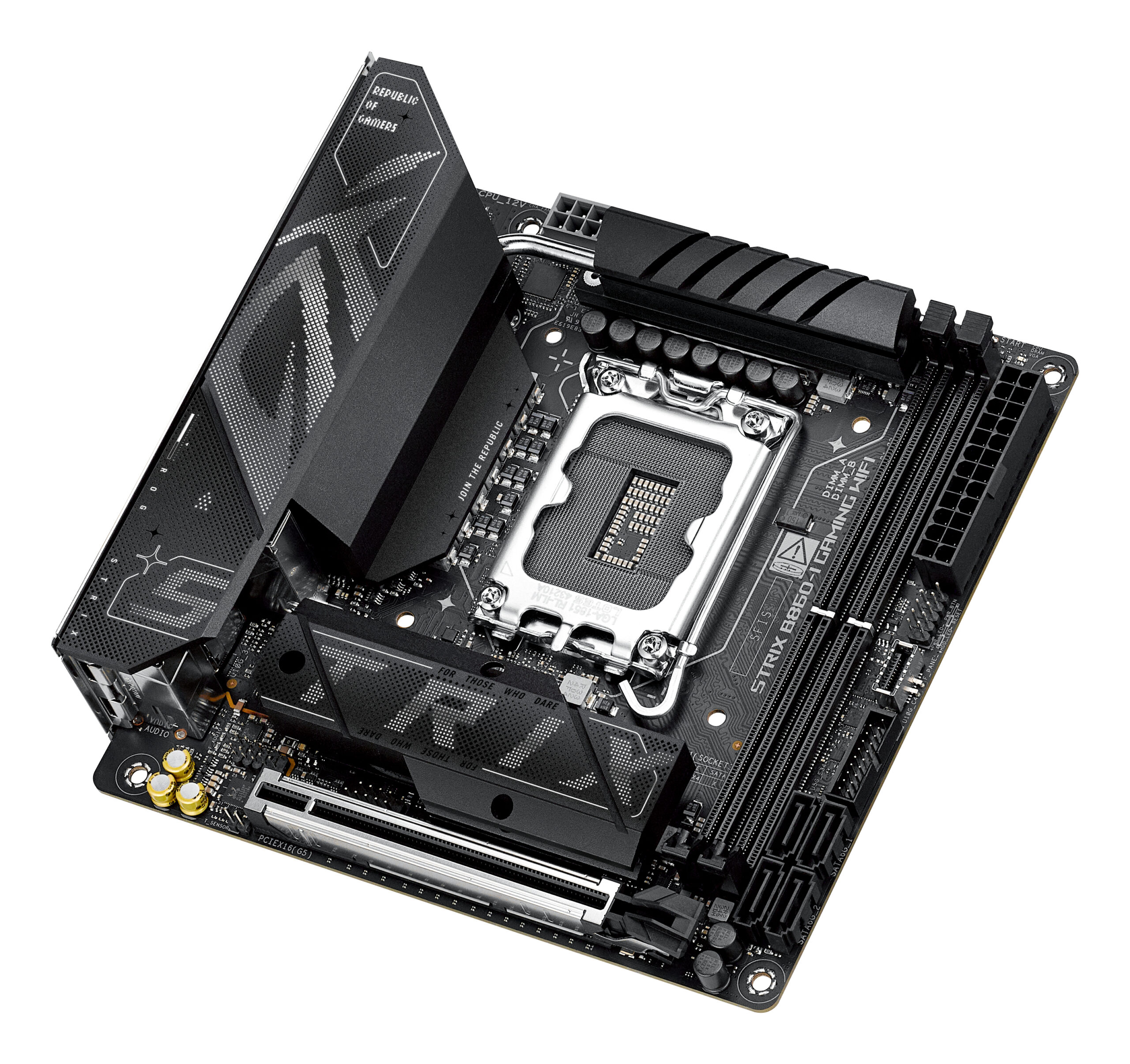

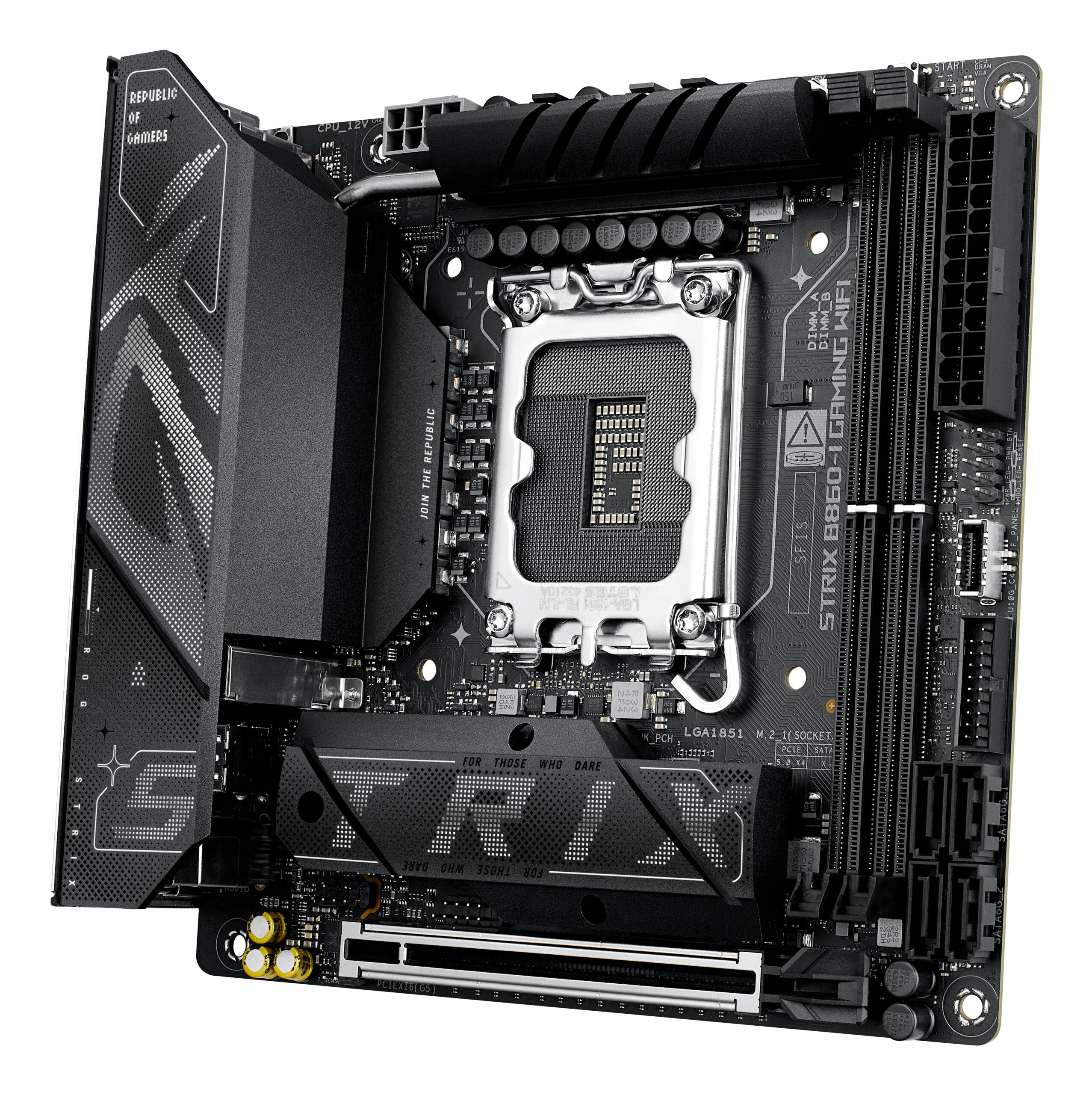

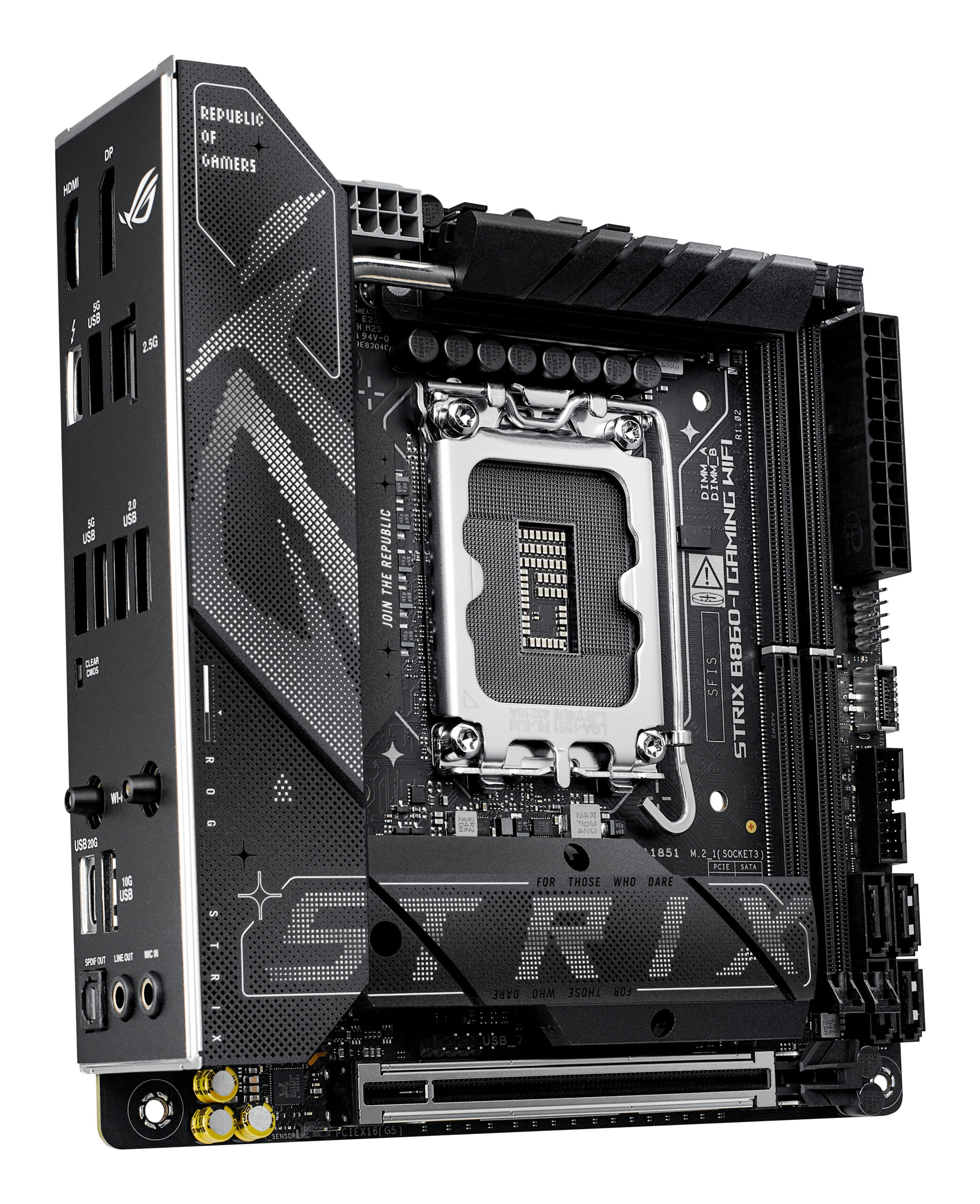

ASUS ROG STRIX B860-I GAMING WIFI Intel B860 LGA 1851 (Socket V1) mini ITX
ASUS ROG STRIX B860-I GAMING WIFI. Processorfabrikant: Intel, Processor socket: LGA 1851 (Socket V1), Compatibele processors: Intel Core Ultra (Series 2). Ondersteunde geheugen types: DDR5-SDRAM, Maximum intern geheugen: 128 GB, Geheugen slots type: DIMM. Ondersteunde opslagstationinterfaces: M.2, SATA III, Ondersteunde types opslag-drives: HDD & SSD, Soorten RAID: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Wifi-standaard: Wi-Fi 7 (802.11be). Component voor: PC, Moederbord form factor: mini ITX, Moederbord chipset familie: Intel
Specificaties
| Processor | Geheugen | ||
| Processorfabrikant | Intel | Ondersteunde geheugen types | DDR5-SDRAM |
| Processor socket | LGA 1851 (Socket V1) | Aantal geheugenslots | 2 |
| Compatibele processors | Intel Core Ultra (Series 2) | Geheugen slots type | DIMM |
| Geheugen kanaal | Dubbelkanaals | ||
| ECC-compatibiliteit | Niet-ECC | ||
| Ondersteunde geheugenkloksnelheid (max) | 9066 MHz | ||
| Maximum intern geheugen | 128 GB | ||
| Niet gebufferd geheugen | Ja | ||
| Opslag-controllers | Grafisch | ||
| Ondersteunde types opslag-drives | HDD & SSD | Ondersteuning voor parallel processing | Niet ondersteund |
| Ondersteunde opslagstationinterfaces | M.2, SATA III | Ingebouwde grafische adapter | Nee |
| Maximum aantal HDD's per behuizing | 4 | ||
| Aantal storage drives ondersteund | 6 | ||
| RAID support | Ja | ||
| Soorten RAID | 0, 1, 5, 10 | ||
| Interne aansluitingen | Aansluitingen achterzijde | ||
| USB 2.0 aansluitingen | 1 | Aantal USB 2.0-poorten | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 1 | Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 3 |
| USB 3.2-connectoren (3.1 Gen 2) | 1 | Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 1 |
| Aantal SATA III connectors | 4 | Aantal USB 3.2 Gen 2.2 Type-C-poorten | 1 |
| Aansluiting voor audiopaneel aan voorzijde | Ja | Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| ATX Power connector (24-pin) | Ja | Aantal HDMI-poorten | 1 |
| Aansluiting voor CPU koeler | Ja | Aantal DisplayPorts | 1 |
| Aantal CPU-ventilatoraansluitingen | 1 | Microfoon, line-in ingang | Ja |
| Aansluitingen voor behuizingsventilatoren | 1 | S/PDIF-uitgang | Ja |
| EPS power connector (8-pin) | Ja | Hoeveelheid Thunderbolt ports | 1 |
| 12V vermogen-connector | Ja | ||
| Netwerk | Kenmerken | ||
| Ethernet LAN | Ja | Chipset moederbord | Intel B860 |
| Ethernet interface type | 2.5 Gigabit Ethernet | Audiochip | Realtek ALC1220P |
| Wifi | Ja | Audio-uitgangskanalen | 7.1 kanalen |
| Wifi-standaard | Wi-Fi 7 (802.11be) | Kleur van het product | Meerkleurig |
| Bluetooth | Ja | Component voor | PC |
| Bluetooth-versie | 5.4 | Moederbord form factor | mini ITX |
| Moederbord chipset familie | Intel | ||
| Ondersteunt Windows | Windows 11 | ||
| Uitbreidingsmodules | BIOS | ||
| PCI Express x16 (Gen 5.x) sleuven | 1 | BIOS type | UEFI AMI |
| Aantal M.2 (M) slots | 2 | Grootte BIOS-geheugen | 256 Mbit |
| Clear CMOS knop | Ja | ||
| Gewicht en omvang | Overige specificaties | ||
| Breedte | 170 mm | Audio-uitgang | <strong>Realtek ALC1220P 7.1 Surround Sound High<br />Definition Audio CODEC*</strong><br />- Impedance sense for front and rear<br />headphone outputs<br />- Internal audio Amplifier to enhance the<br />highest quality sound for headphone and speakers<br />- Supports: Jack-detection,<br />Multi-streaming, Front Panel Jack-retasking<br />- High quality 120 dB SNR stereo playback<br />output and 113 dB SNR recording input (Line-in)<br />- Supports up to 32-Bit/192 kHz<br />playback*"<br /><strong>Audio Features </strong><br />- SupremeFX Shielding Technology<br />- Savitech SV3H712 AMP <br />- Rear optical S/PDIF out port<br />- Premium audio capacitors<br />- Dedicated audio PCB layers<br />* Due to limitations in HDA bandwidth,<br />32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.<br />** A chassis with an HD audio module in the<br />front panel is required to support 7.1 Surround Sound audio output. |
| Diepte | 170 mm | Speciale eigenschappen | <strong>Total supports 2 x M.2 slots and 4 x SATA<br />6Gb/s ports*</strong><br /><strong>Intel<sup>®</sup> Core™ Ultra Processors (Series 2)</strong><br />M.2_1 slot (Key M), type 2260/2280<br />(supports PCIe 5.0 x4 mode)<br /><strong>Intel<sup>®</sup> B860 Chipset**</strong><br />M.2_2 slot (Key M), type 2242/2260/2280<br />(supports PCIe 4.0 x4 mode)<br />4 x SATA 6Gb/s ports<br />* Intel<sup>®</sup> Rapid Storage Technology supports<br />SATA RAID 0/1/5/10. |
| Andere kenmerken | 2 x DIMM slots, max. 128GB, DDR5<br />Supports up to 9066+MT/s (OC), Non-ECC<br />Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*<br />Dual channel memory architecture<br />DIMM Fit<br />Supports Intel<sup>®</sup> Extreme Memory Profile<br />(XMP) memory module<br />ASUS Enhanced Memory Profile III (AEMP III)<br />*Adjustments will be made based on the specifications of mass-produced memory products available on the market.<br />* Supported memory types, data rate<br />(speed), and number of DRAM modules vary depending on the CPU and memory<br />configuration, for more information please refer to CPU/Memory Support list<br />under the Support tab of product information site or visit<br />https://www.asus.com/support/download-center/.<br />* *Non-ECC, un-buffered DDR5 memory<br />supports On-Die ECC function. | ||
| Grafische uitvoer | 1 x DisplayPort**<br />1 x HDMI™ port*** <br />1 x Intel<sup>®</sup> Thunderbolt™ 4 supports<br />DisplayPort and Thunderbolt™ video outputs**** <br />* Graphics specifications may vary between<br />CPU types. Please refer to www.intel.com for any updates. <br />** Supports max. 4K@60Hz as specified in<br />DisplayPort 1.4. <br />*** Supports 4K@60Hz as specified in HDMI<br />2.1. <br />****Supports up to 8K@60Hz x1 with DSC,<br />maximum total bandwidth up to 23.8Gbps, for resolution support please check<br />DisplayPort 2.1 specs.<br />***** VGA resolution support depends on<br />processors' or graphic cards' resolution. | ||
