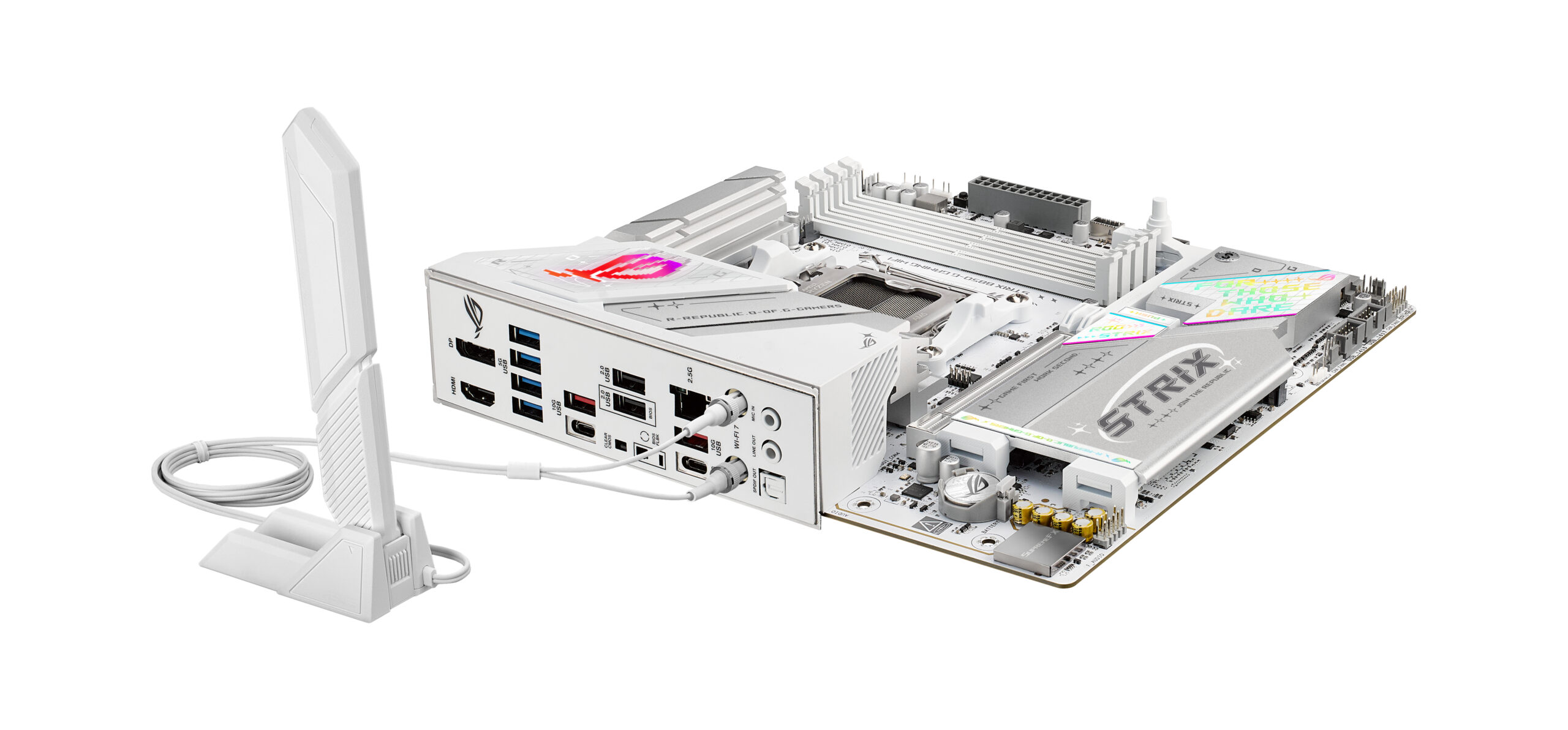

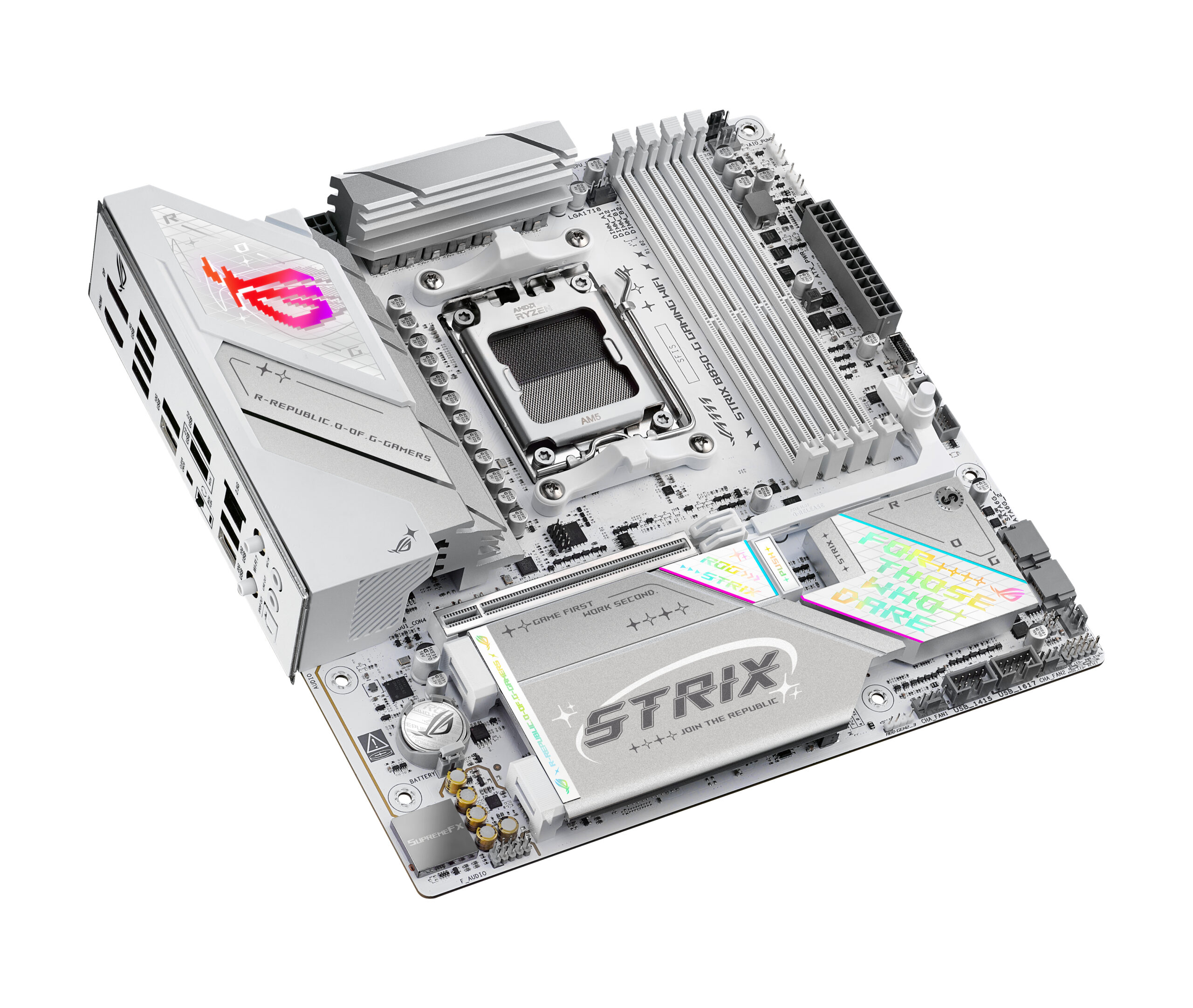

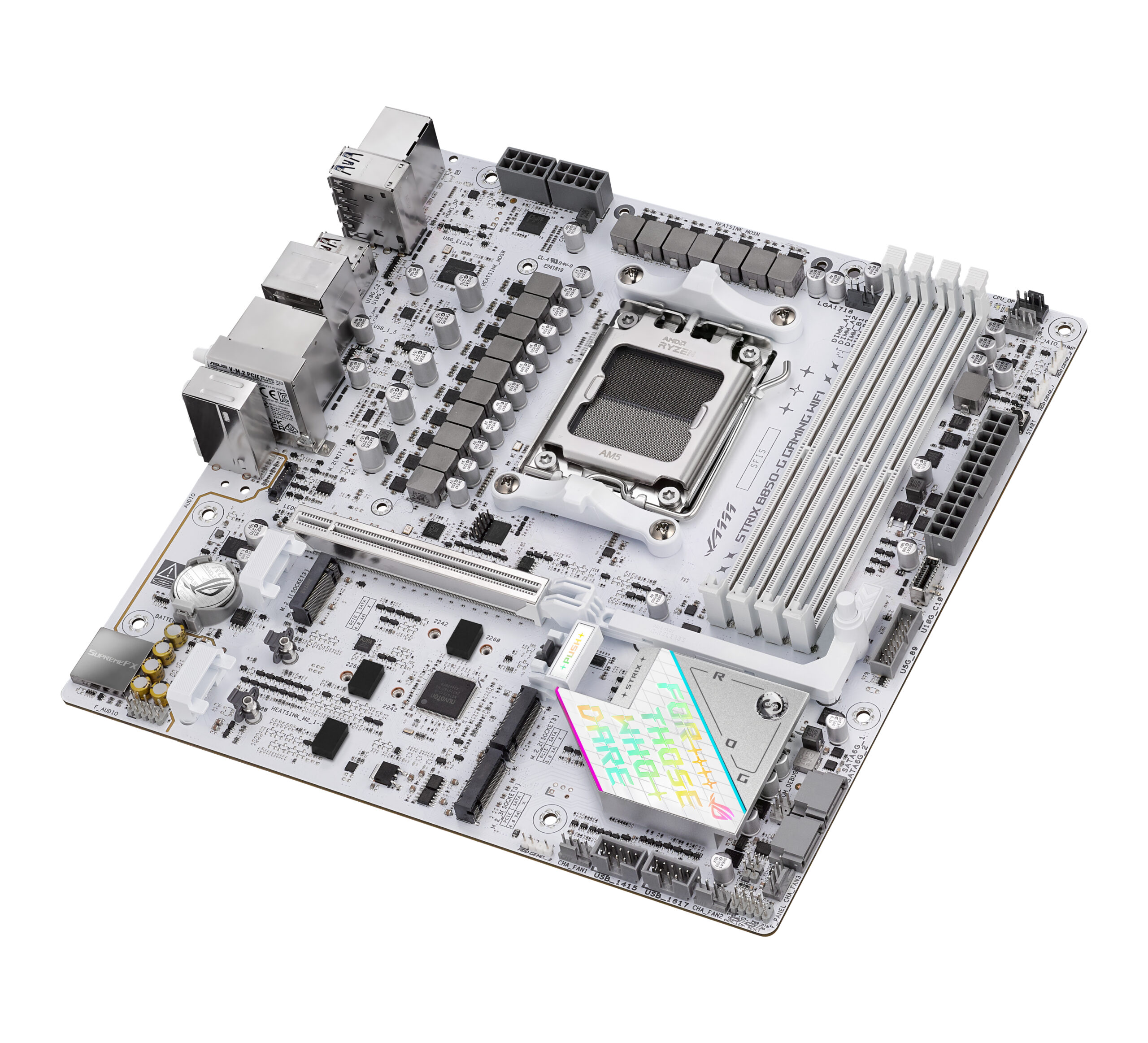

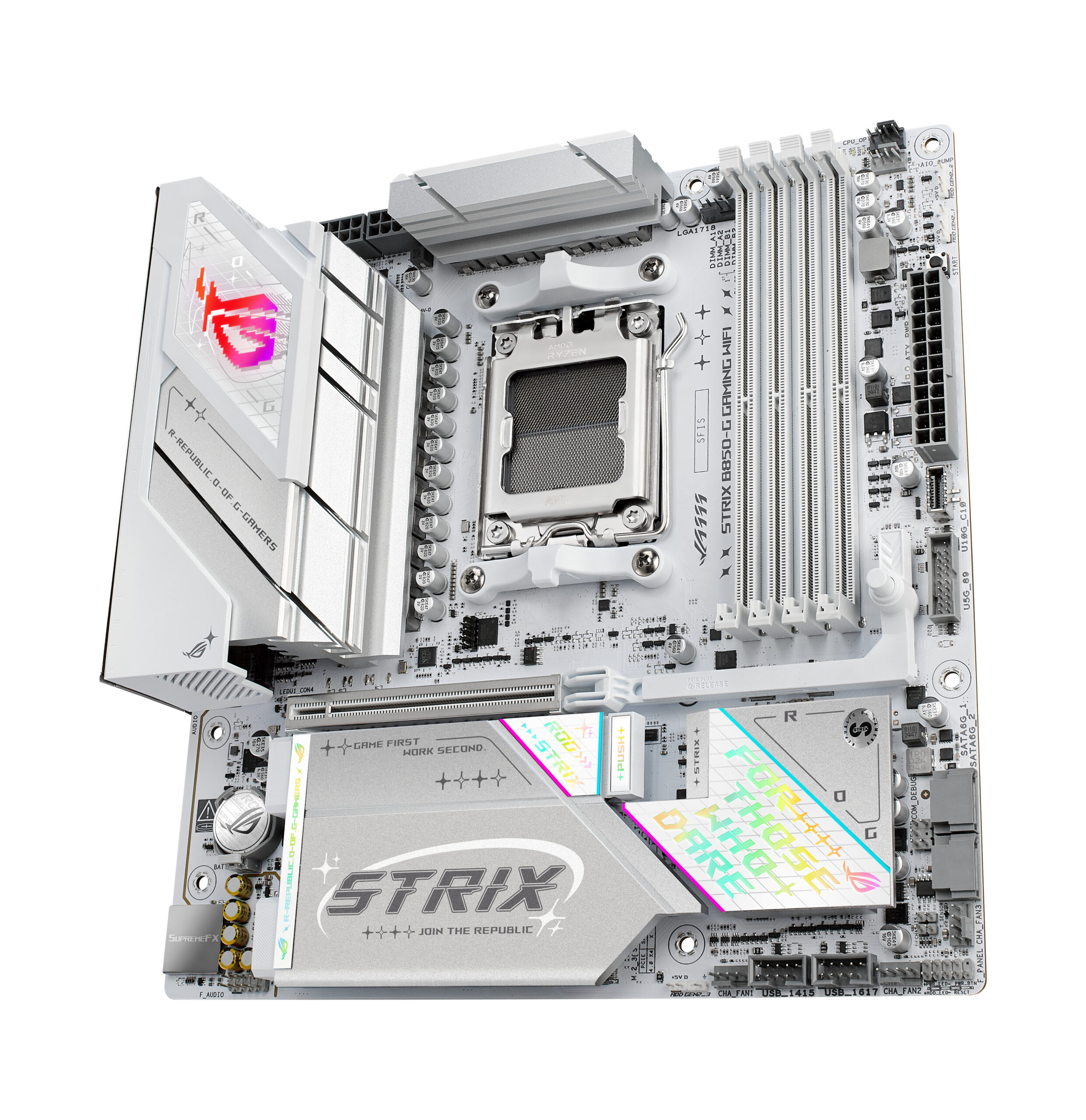

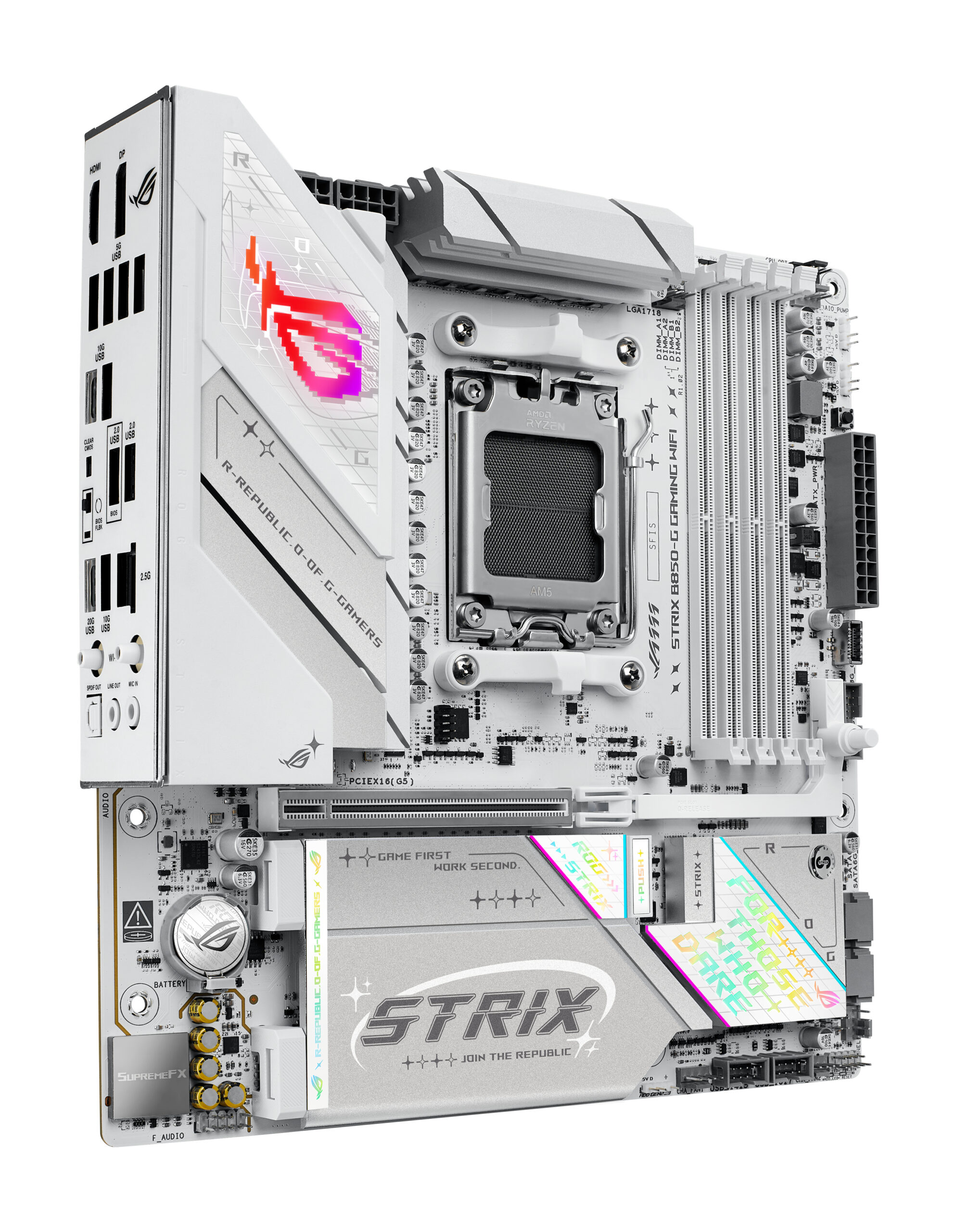

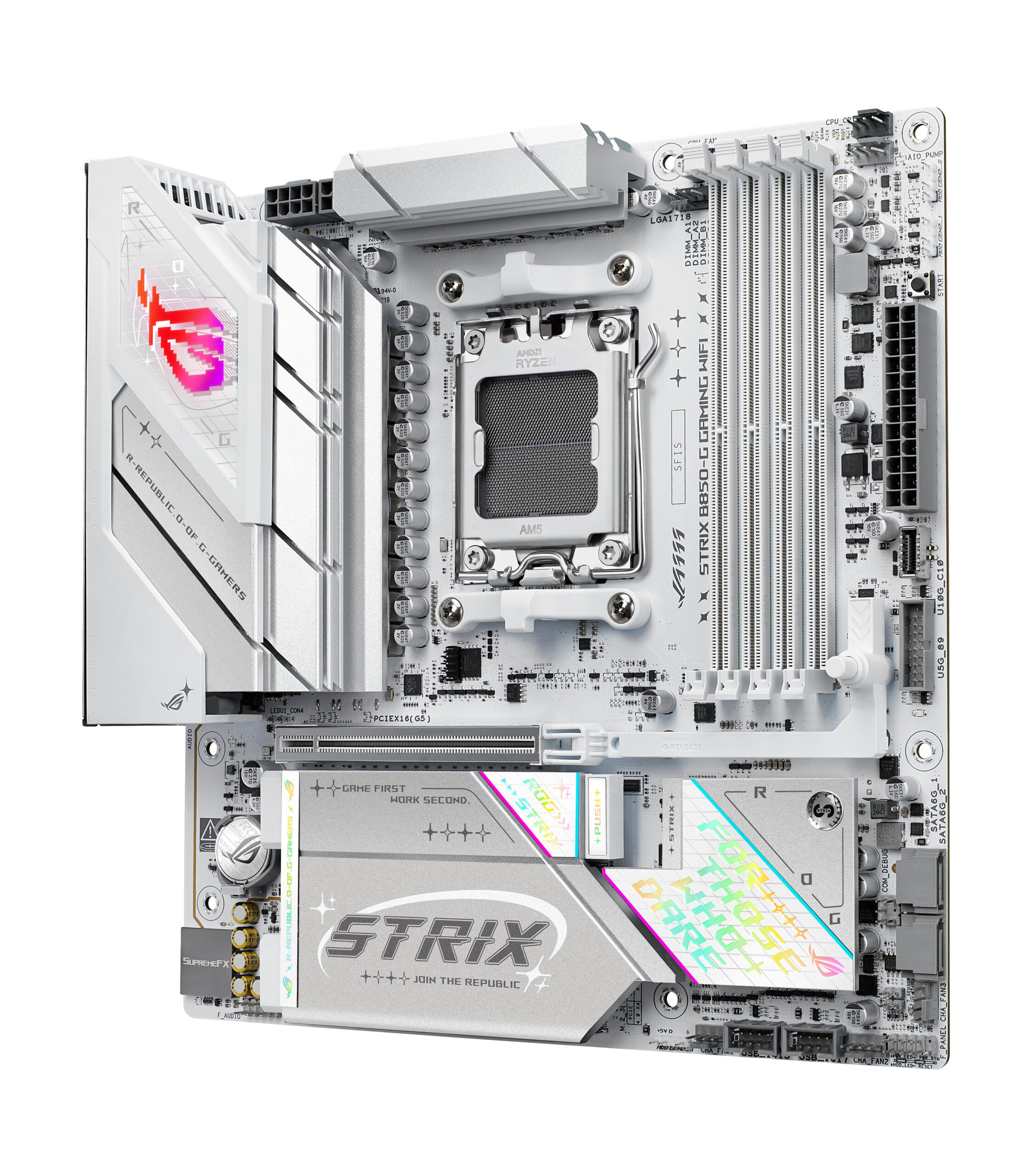

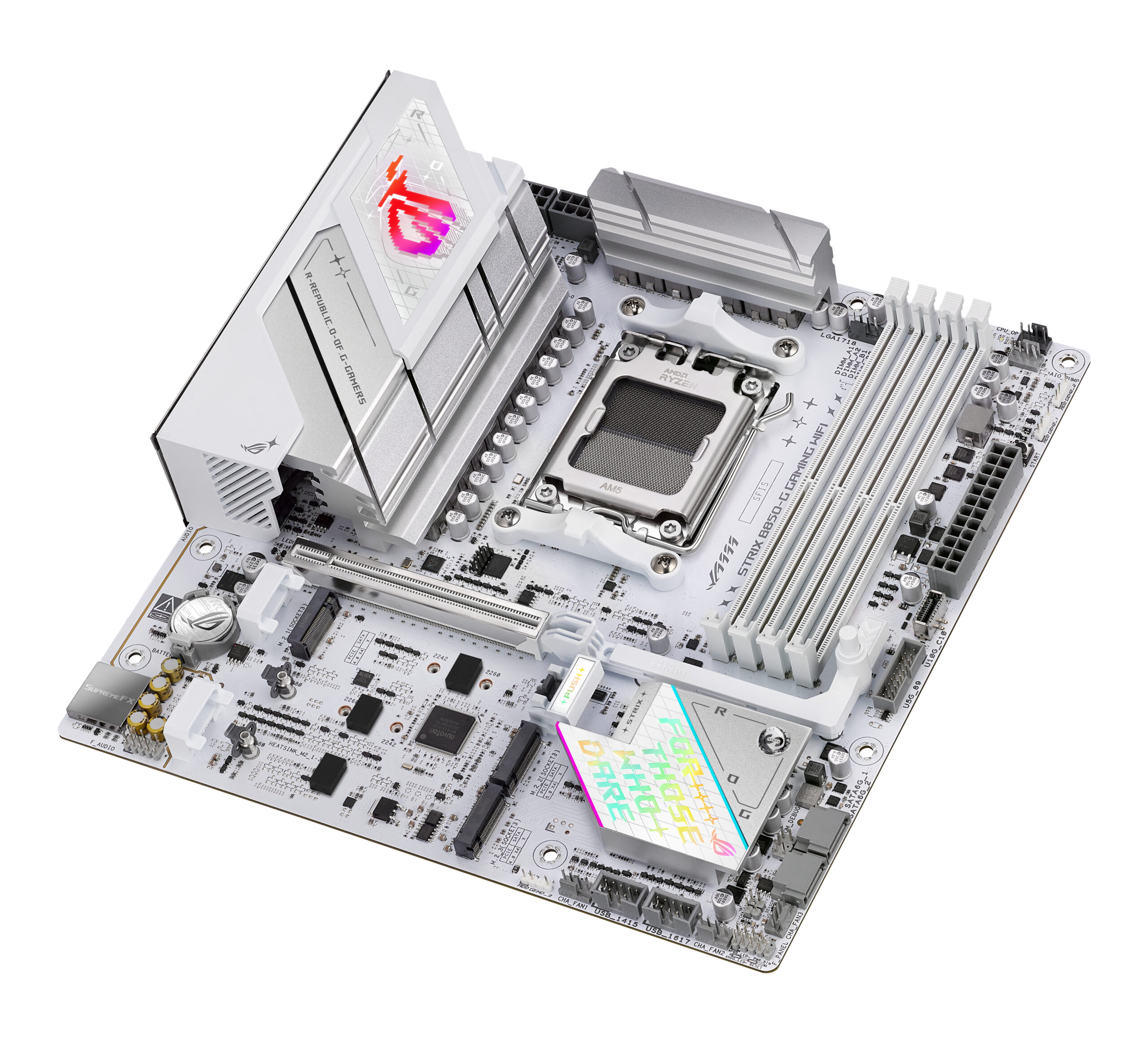

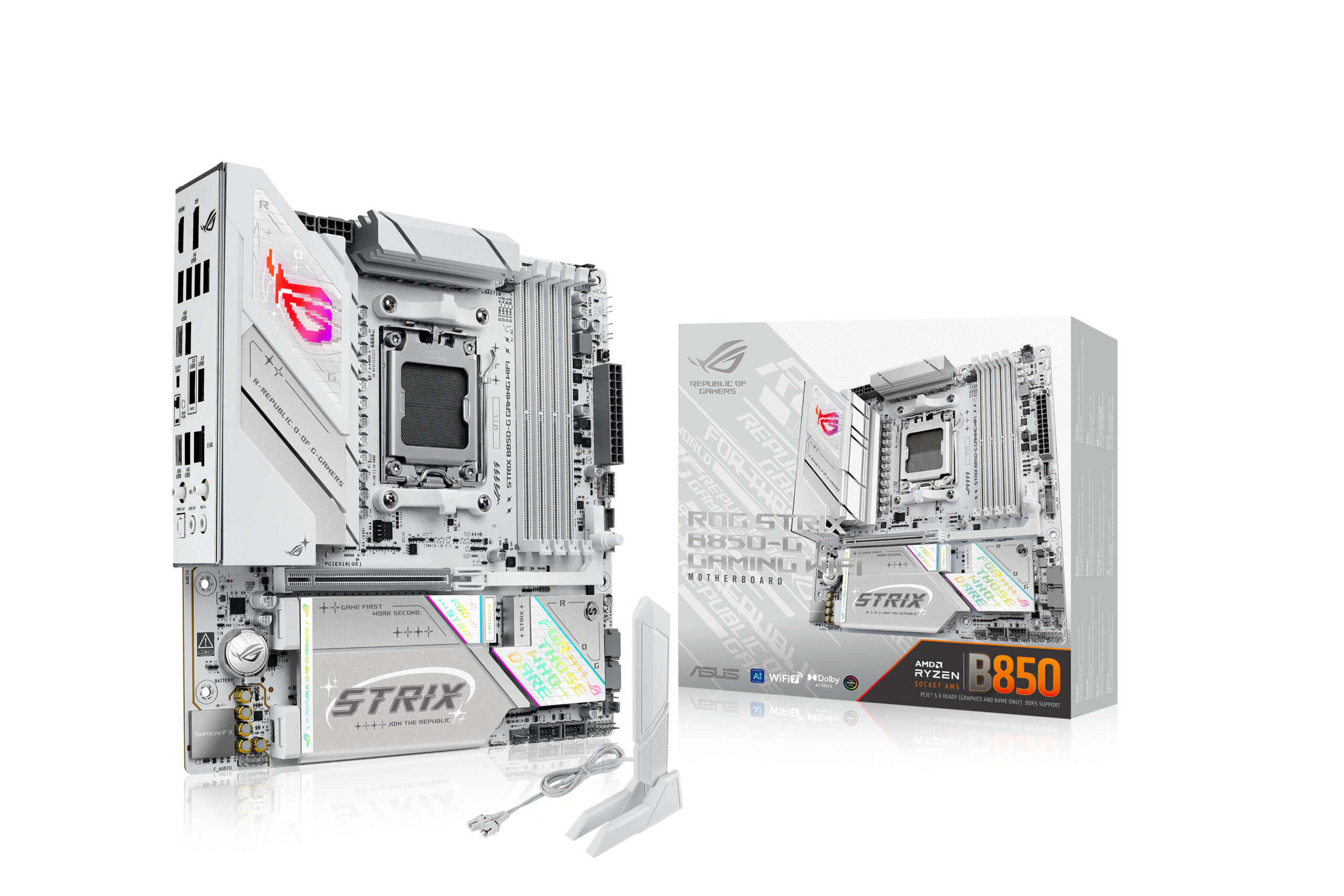

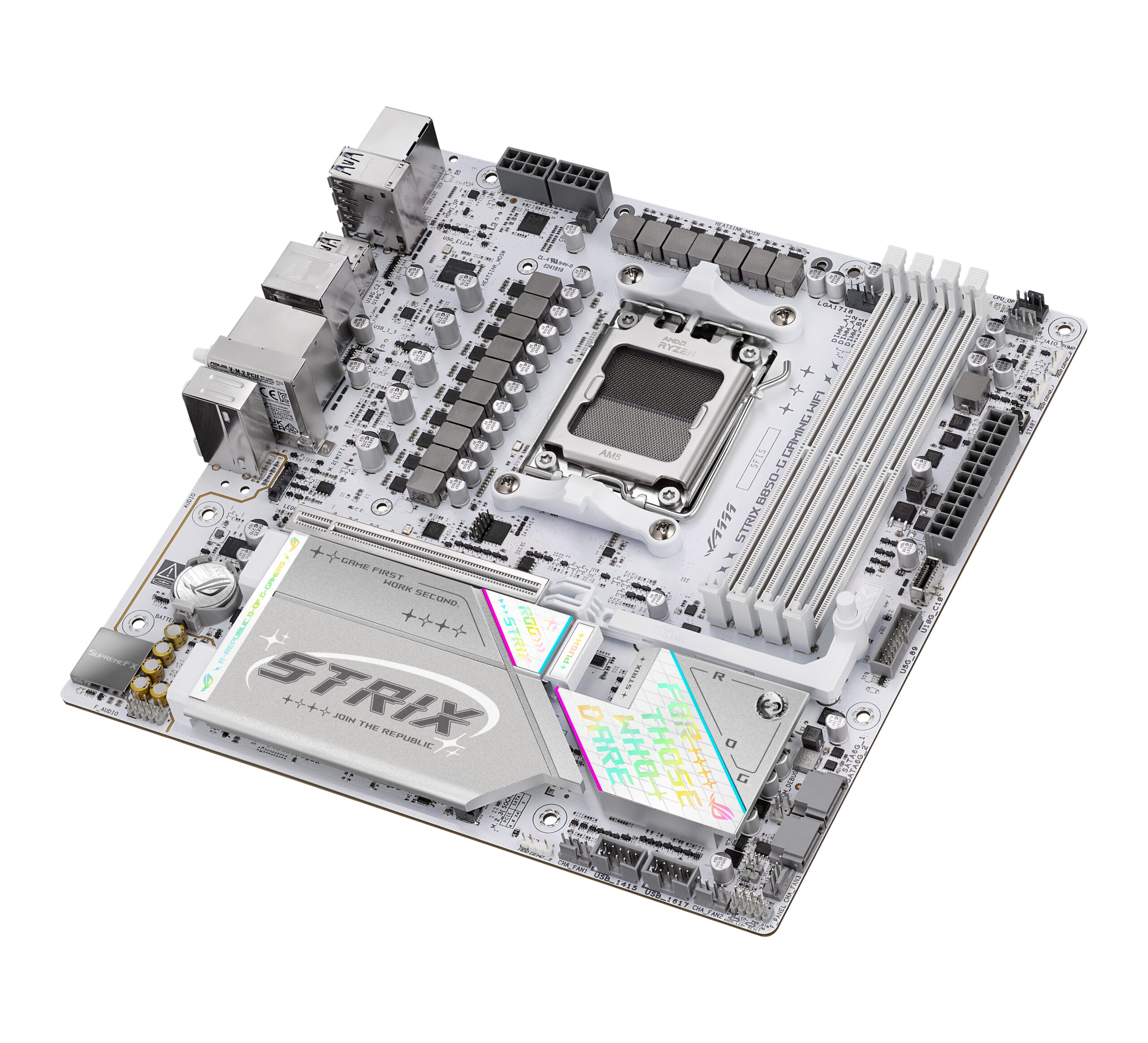

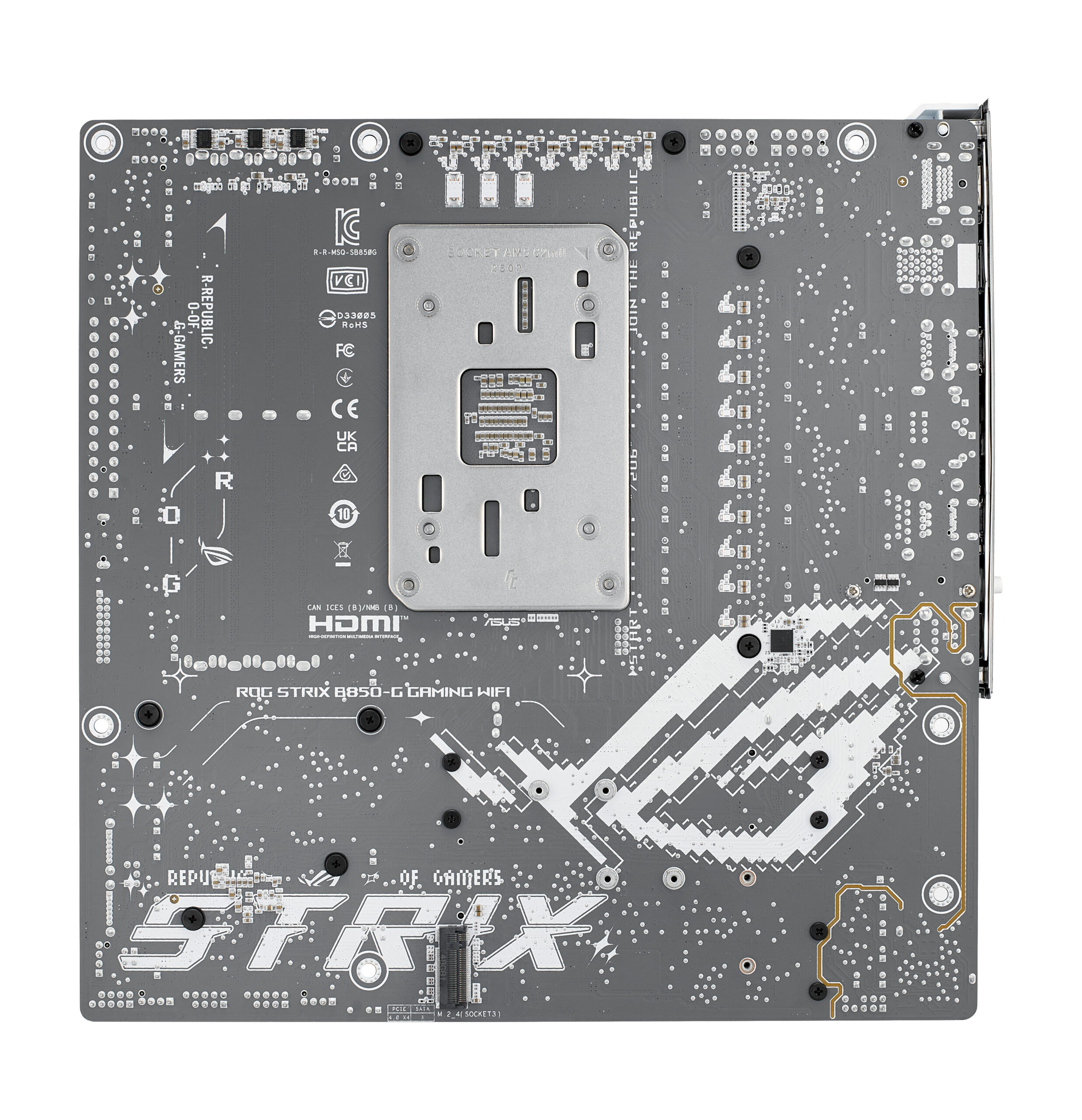

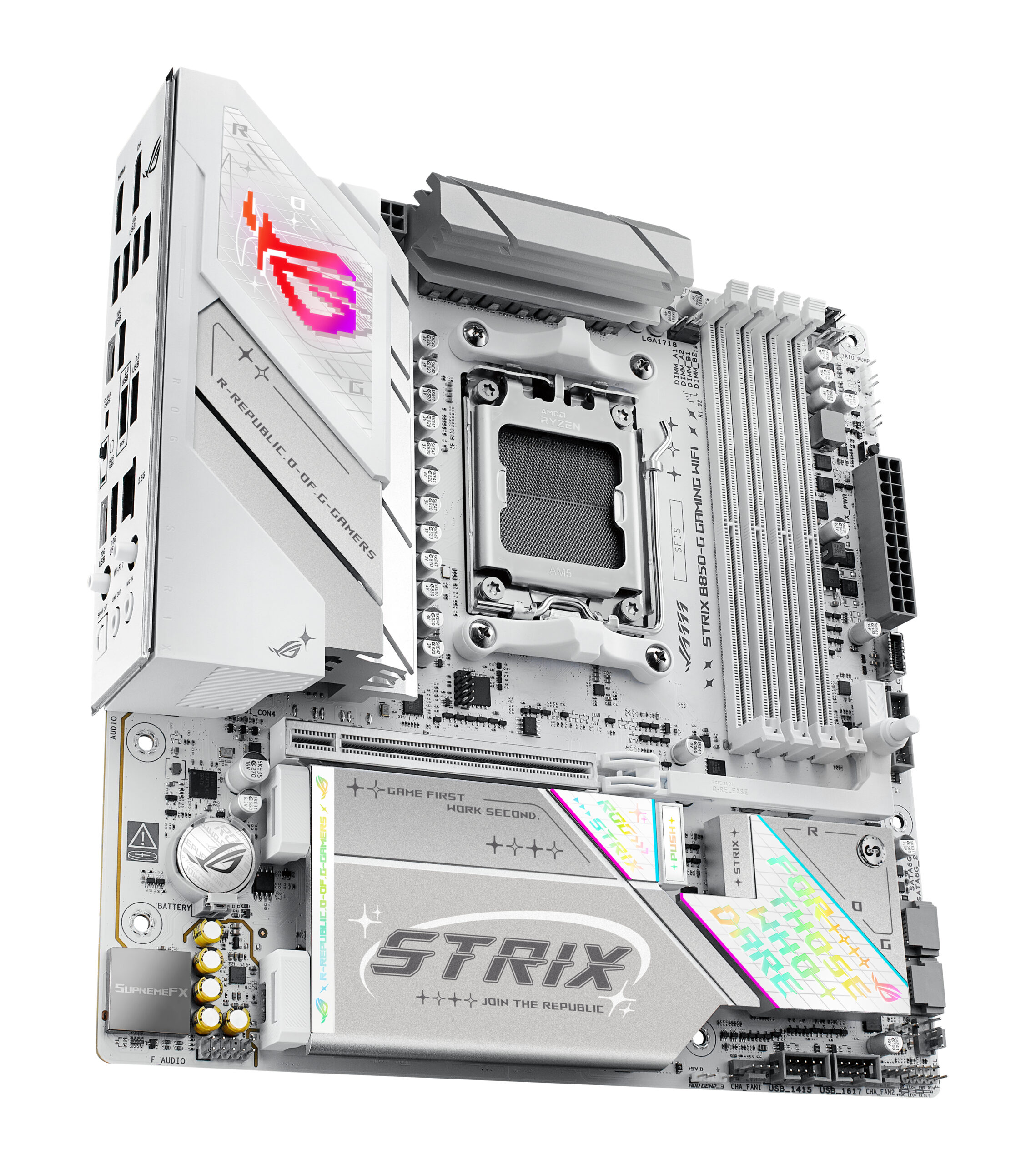

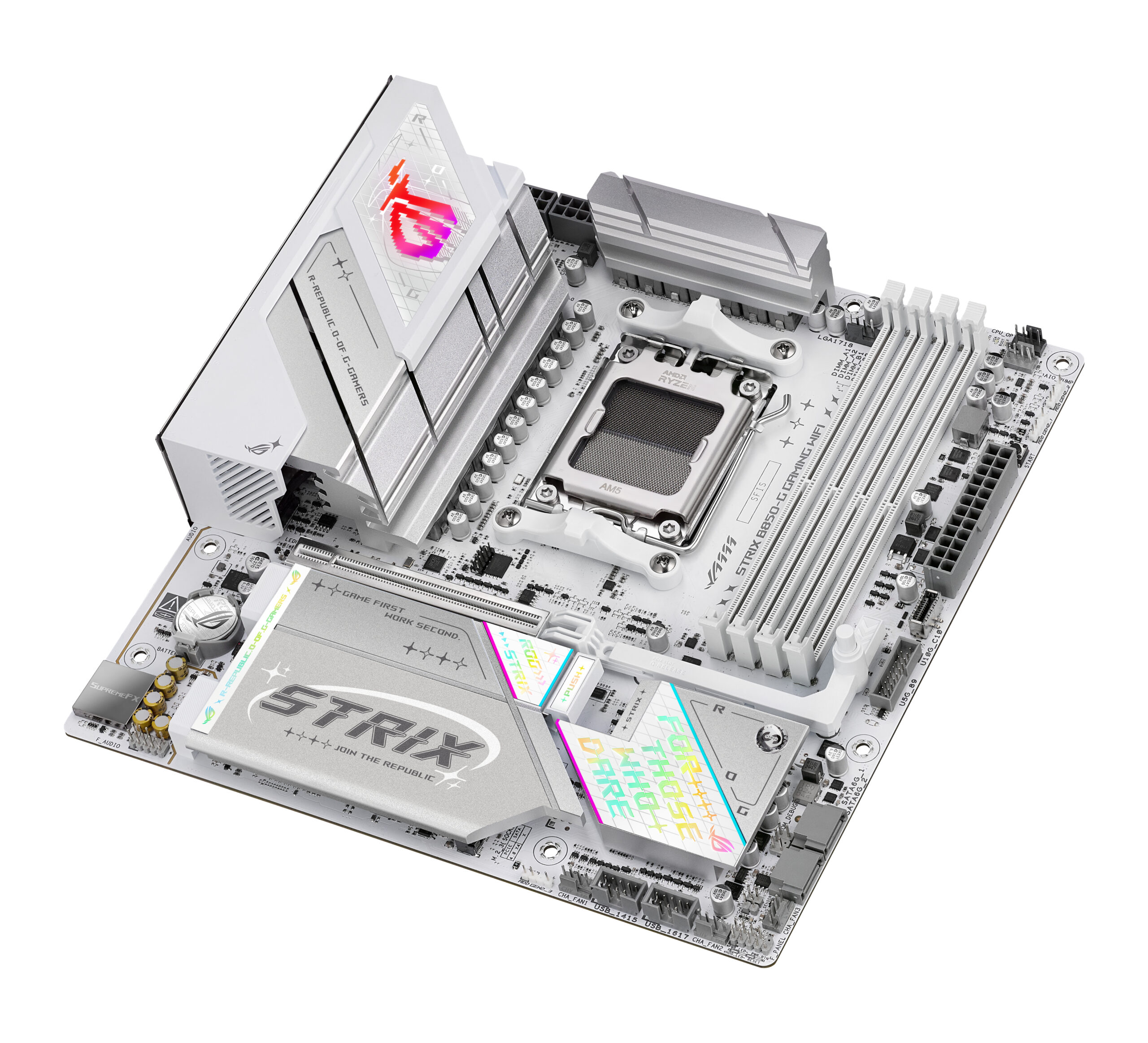

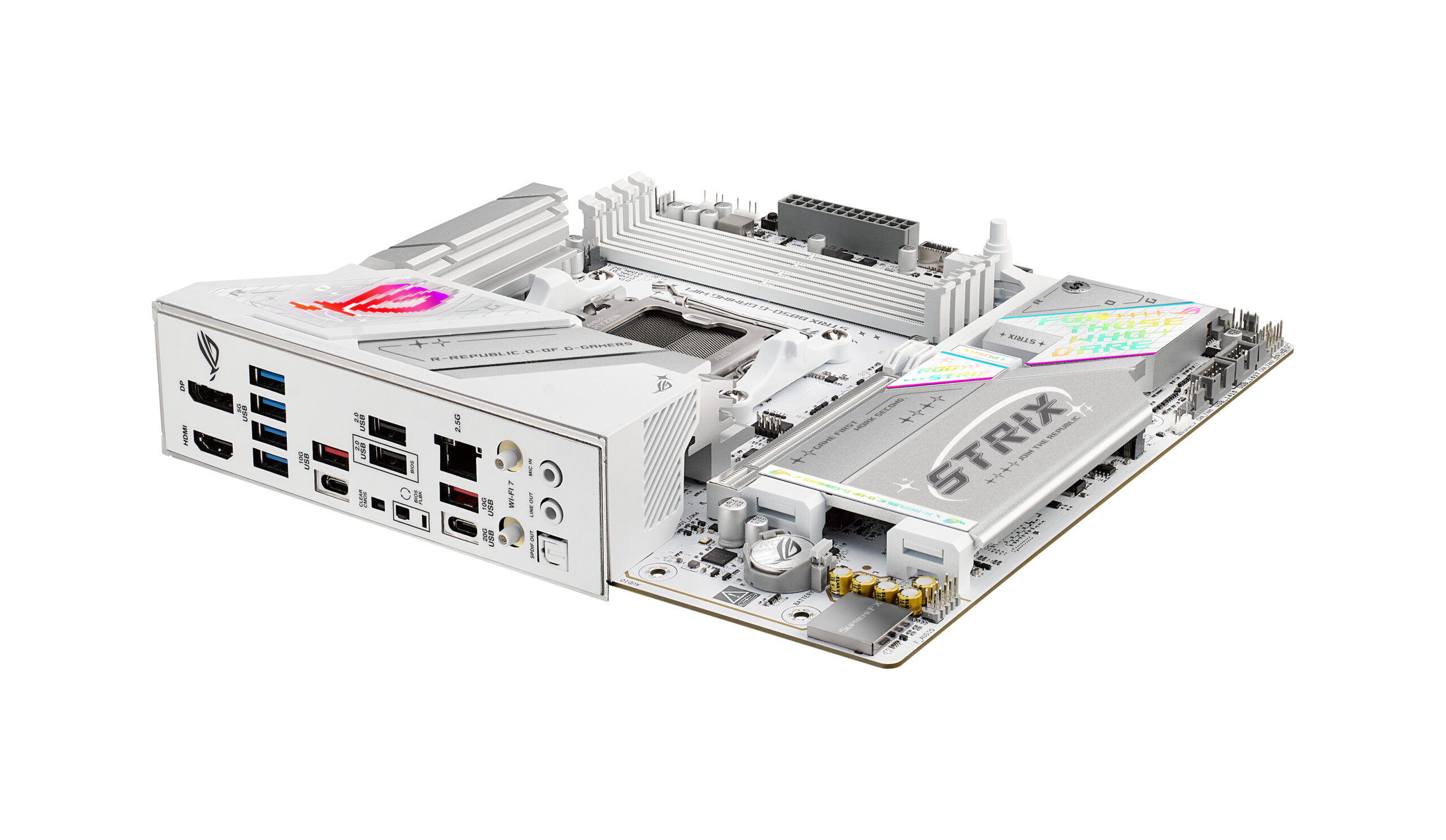

ASUS ROG STRIX B850-G GAMING WIFI AMD B850 Socket AM5 micro ATX
ASUS ROG STRIX B850-G GAMING WIFI. Processorfabrikant: AMD, Processor socket: Socket AM5, Compatibele processors: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Ondersteunde geheugen types: DDR5-SDRAM, Maximum intern geheugen: 256 GB, Geheugen slots type: DIMM. Ondersteunde opslagstationinterfaces: M.2, SATA III, Ondersteunde types opslag-drives: HDD & SSD, Soorten RAID: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Wifi-standaard: Wi-Fi 7 (802.11be), Wi-Fi-standaarden: Wi-Fi 7 (802.11be). Component voor: PC, Moederbord form factor: micro ATX, Moederbord chipset familie: AMD
Specificaties
| Processor | Geheugen | ||
| Processorfabrikant | AMD | Ondersteunde geheugen types | DDR5-SDRAM |
| Processor socket | Socket AM5 | Aantal geheugenslots | 4 |
| Compatibele processors | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series | Geheugen slots type | DIMM |
| Geheugen kanaal | Dubbelkanaals | ||
| ECC-compatibiliteit | ECC & Niet-ECC | ||
| Ondersteunde geheugenkloksnelheid (max) | 8000 MHz | ||
| Maximum intern geheugen | 256 GB | ||
| Niet gebufferd geheugen | Ja | ||
| Opslag-controllers | Grafisch | ||
| Ondersteunde types opslag-drives | HDD & SSD | Ondersteuning voor parallel processing | Niet ondersteund |
| Ondersteunde opslagstationinterfaces | M.2, SATA III | ||
| Maximum aantal HDD's per behuizing | 2 | ||
| Aantal storage drives ondersteund | 6 | ||
| RAID support | Ja | ||
| Soorten RAID | 0, 1, 5, 10 | ||

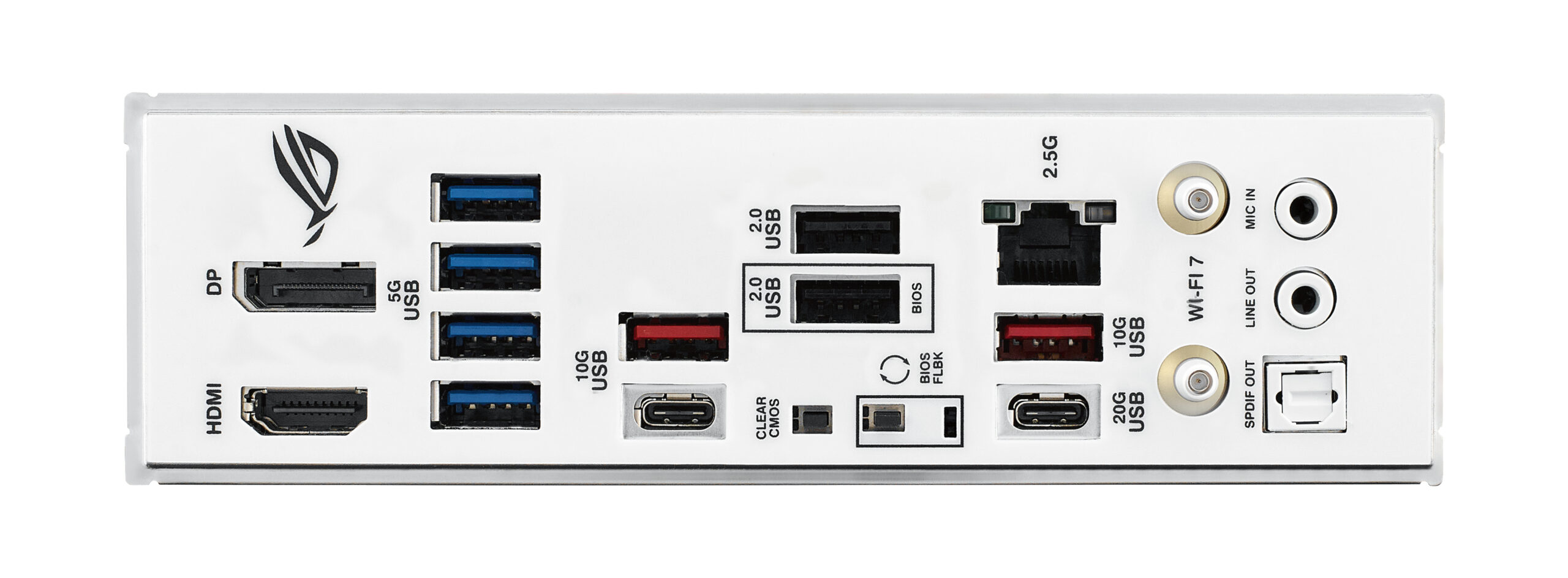

| Interne aansluitingen | Aansluitingen achterzijde | ||
| USB 2.0 aansluitingen | 2 | Aantal USB 2.0-poorten | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 1 | Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 4 |
| USB 3.2-connectoren (3.1 Gen 2) | 1 | Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 2 |
| Aantal SATA III connectors | 2 | Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C | 1 |
| Aansluiting voor audiopaneel aan voorzijde | Ja | Aantal USB 3.2 Gen 2.2 Type-C-poorten | 1 |
| Voorpaneel-connector | Ja | Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| ATX Power connector (24-pin) | Ja | Aantal HDMI-poorten | 1 |
| Aansluiting voor CPU koeler | Ja | Aantal DisplayPorts | 1 |
| Aantal CPU-ventilatoraansluitingen | 1 | Microfoon, line-in ingang | Ja |
| Aansluitingen voor behuizingsventilatoren | 3 | S/PDIF-uitgang | Ja |
| Chassis intrusion aansluiting | Ja | WiFi-AP antenna jack | 2 |
| EPS power connector (8-pin) | Ja | ||
| 12V vermogen-connector | Ja | ||
| Netwerk | Kenmerken | ||
| Ethernet LAN | Ja | Chipset moederbord | AMD B850 |
| Ethernet interface type | 2.5 Gigabit Ethernet | Audio-uitgangskanalen | 7.1 kanalen |
| Wifi | Ja | Kleur van het product | Wit |
| Wifi-standaard | Wi-Fi 7 (802.11be) | Component voor | PC |
| Wi-Fi-standaarden | Wi-Fi 7 (802.11be) | Moederbord form factor | micro ATX |
| Bluetooth | Ja | Moederbord chipset familie | AMD |
| Bluetooth-versie | 5.4 | Ondersteunt Windows | Windows 11 |
| Uitbreidingsmodules | BIOS | ||
| PCI Express x16 (Gen 5.x) sleuven | 1 | BIOS type | UEFI AMI |
| Aantal M.2 (M) slots | 4 | Grootte BIOS-geheugen | 256 Mbit |
| Clear CMOS knop | Ja | ||
| Verpakking | Gewicht en omvang | ||
| Breedte verpakking | 285 mm | Breedte | 244 mm |
| Diepte verpakking | 277 mm | Diepte | 244 mm |
| Hoogte verpakking | 72,5 mm | ||

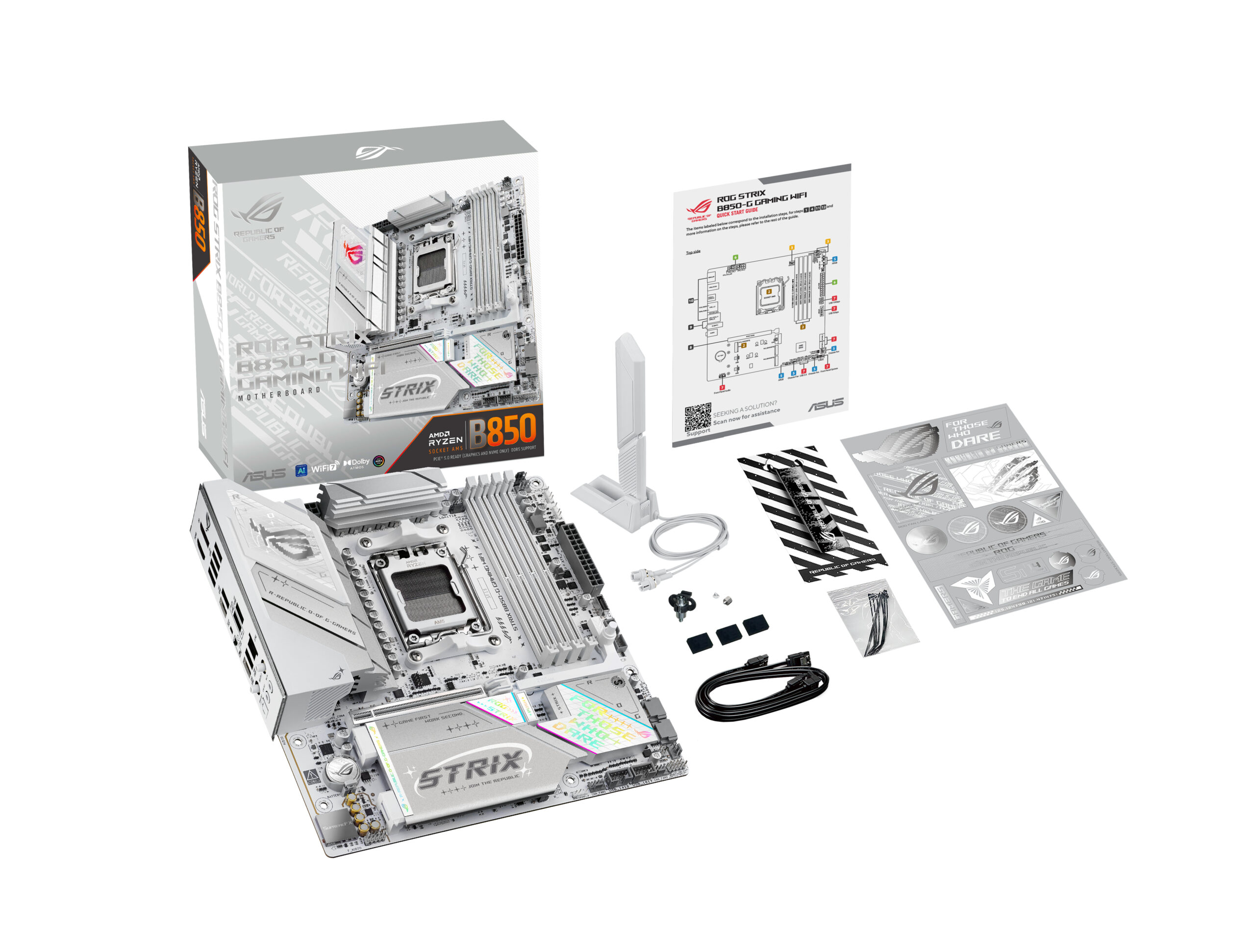

| Inhoud van de verpakking | Overige specificaties | ||
| Antenne inbegrepen | Ja | Audio-uitgang | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*<br />- Impedance sense for front and rear headphone outputs<br />- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers<br />- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking<br />- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)<br />- Supports up to 32-Bit/192 kHz playback*<br /><strong>Audio Features </strong><br />- SupremeFX Shielding Technology<br />- Savitech SV3H712 AMP <br />- Rear optical S/PDIF out port<br />- Premium audio capacitors<br />- Audio cover<br />*A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Speciale eigenschappen | <strong>Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*</strong><br /><strong>AMD Ryzen™ 9000 & 7000 Series Desktop Processors*</strong><br />M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)<br />M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)<br /><strong>AMD Ryzen™ 8000 Series Desktop Processors*</strong><br />M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)<br />M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)<br /><br /><strong>AMD B850 Chipset</strong><br />M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4)<br />M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4) on the underside of the board<br /><br />2 x SATA 6Gb/s ports<br />*Specifications vary by CPU types. | ||
| Andere kenmerken | 4 x DIMM slots, max. 256GB, DDR5<br />Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors<br />ECC and Non-ECC Un-buffered DIMM<br />Dual channel memory architecture <br />Supports AMD Extended Profiles for Overclocking (EXPO™)<br />ASUS Enhanced Memory Profile (AEMP)<br />* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.<br />**Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. | ||
| Grafische uitvoer | 1 x DisplayPort**<br />1 x HDMI™ port*** <br />* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.<br />** Supports max. 8K@30Hz as specified in DisplayPort 1.4.<br />*** Supports 4K@60Hz as specified in HDMI 2.1. <br />**** VGA resolution support depends on processors' or graphic cards' resolution. | ||
