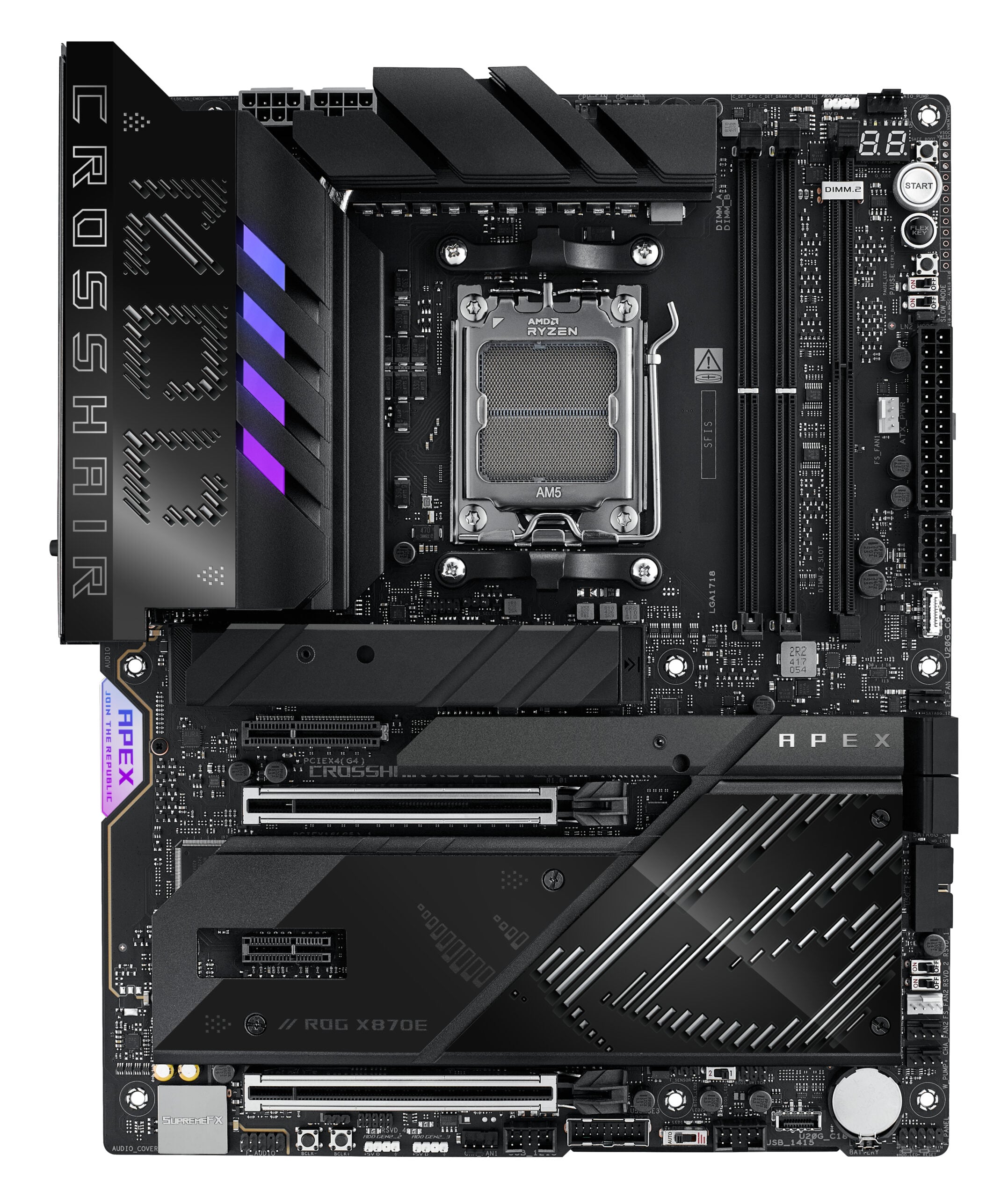

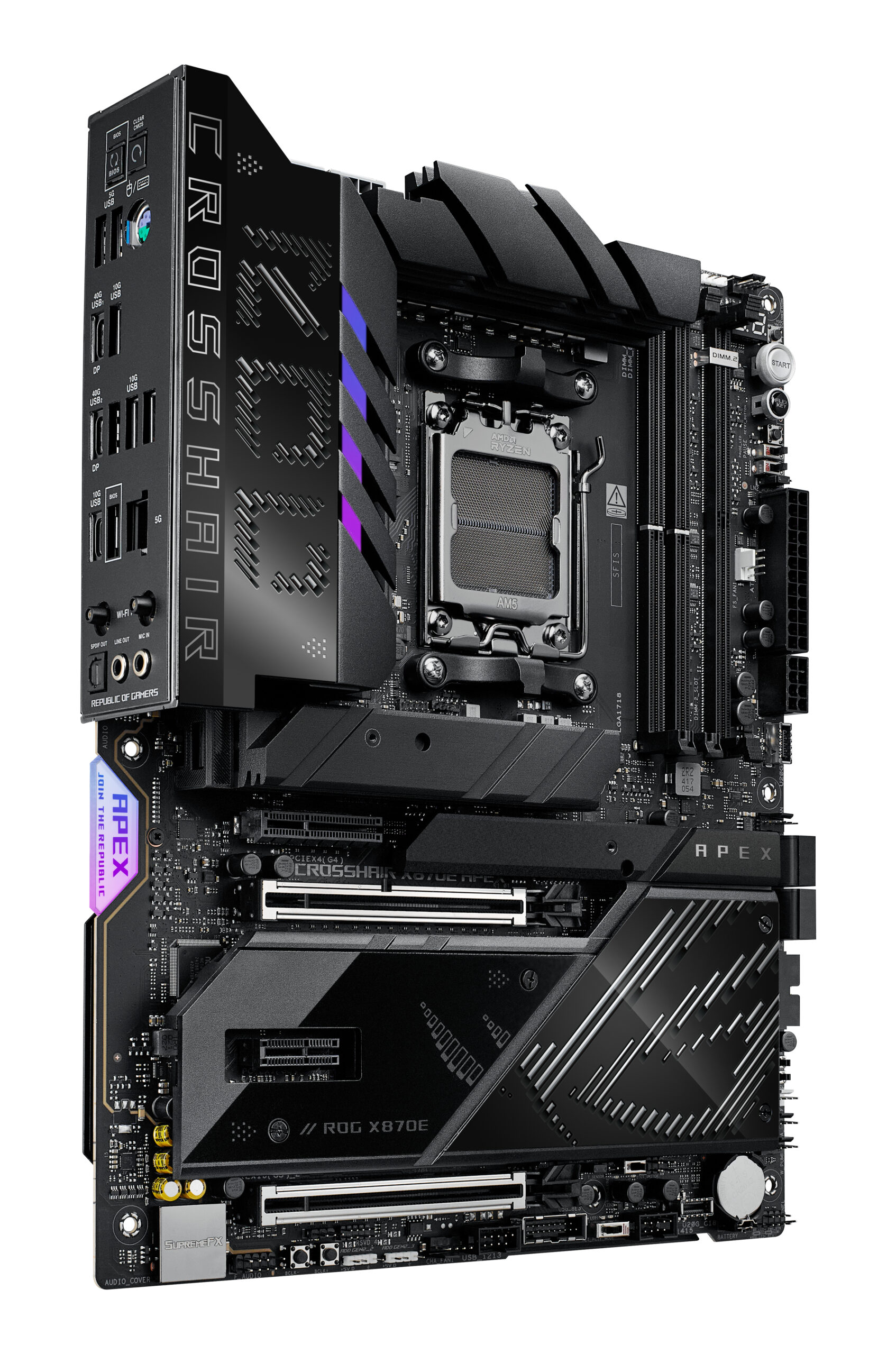

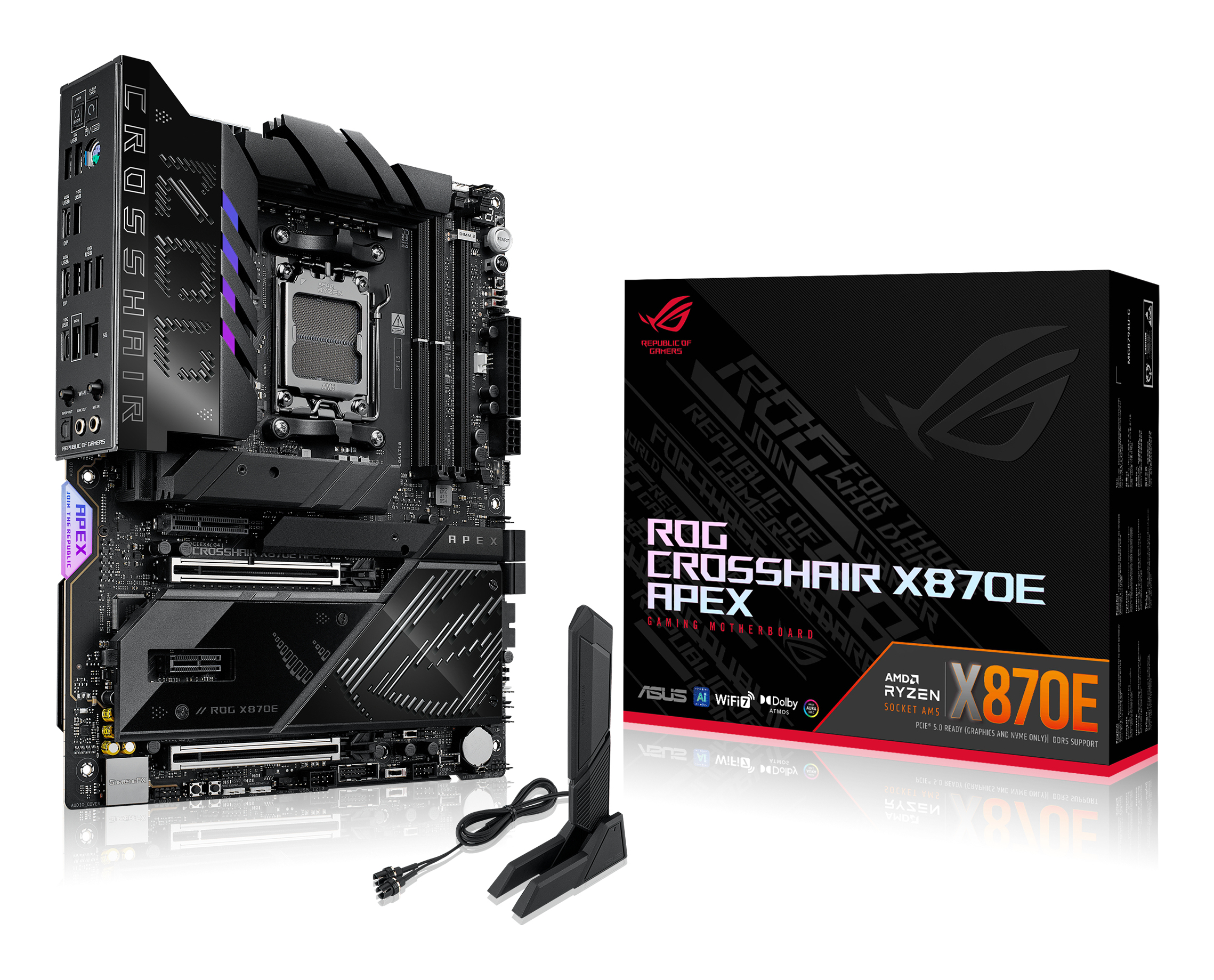

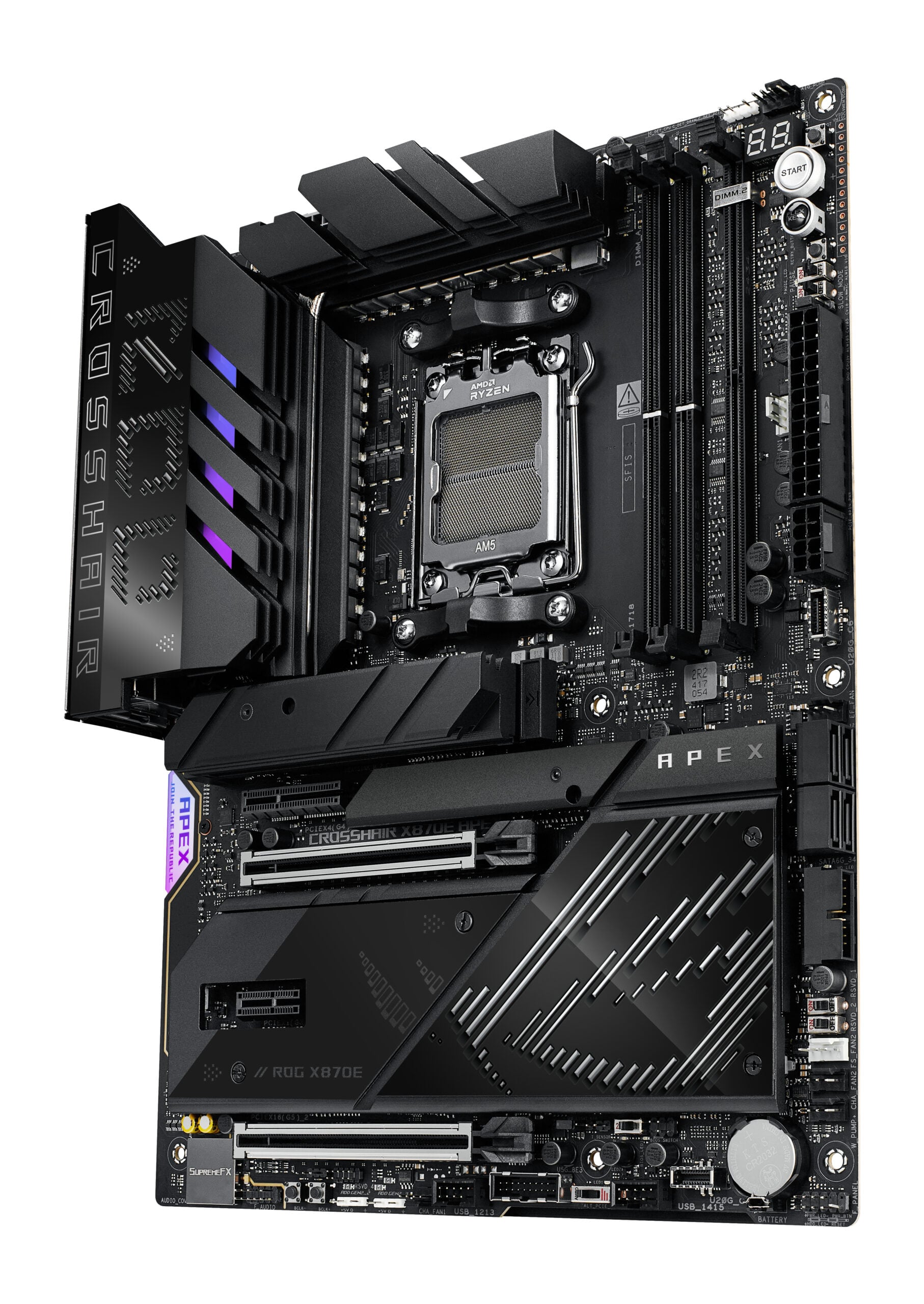

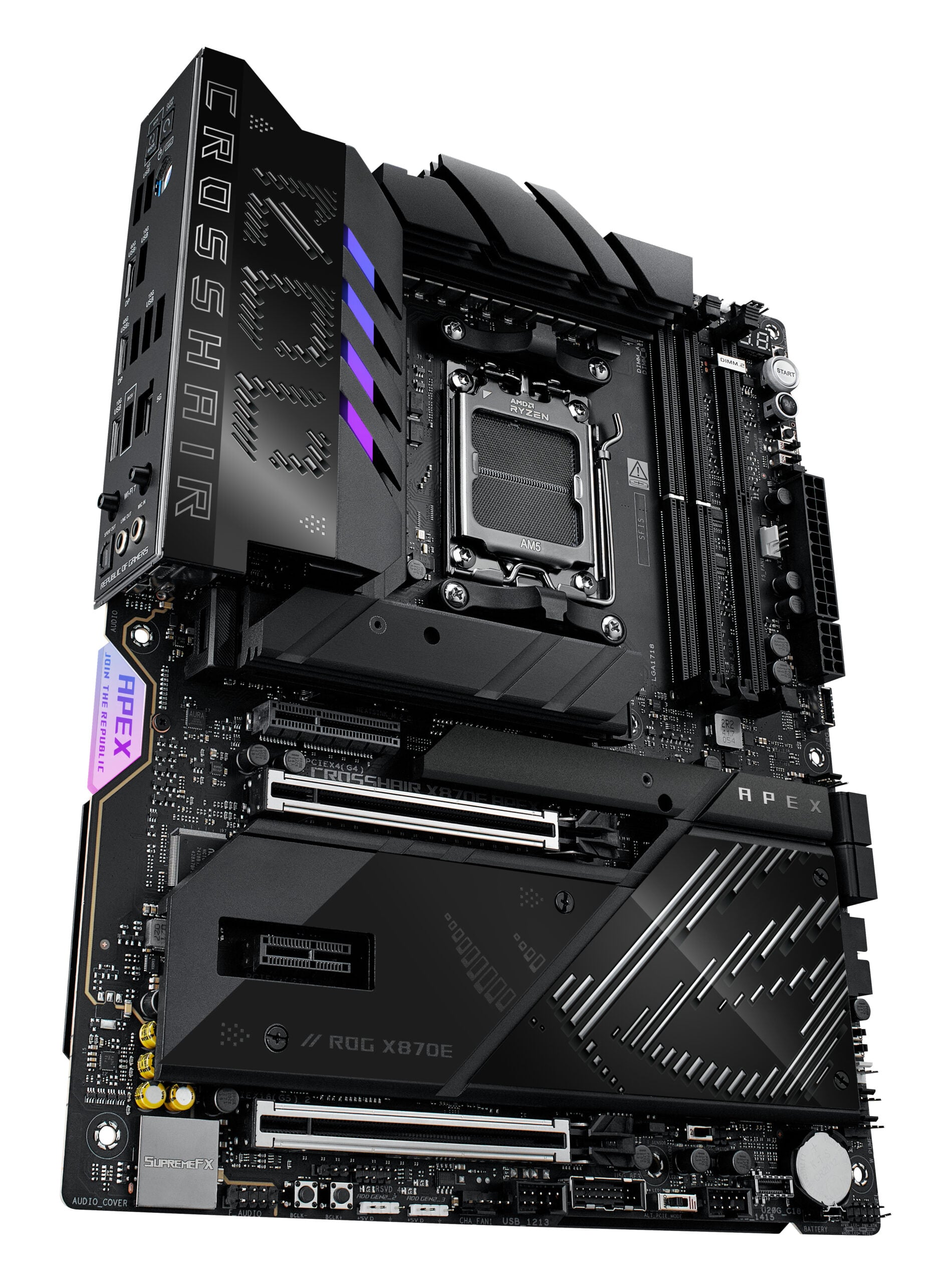

ASUS ROG CROSSHAIR X870E APEX AMD X870E Socket AM5 ATX
ASUS ROG CROSSHAIR X870E APEX. Processorfabrikant: AMD, Processor socket: Socket AM5, Compatibele processors: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Ondersteunde geheugen types: DDR5-SDRAM, Maximum intern geheugen: 128 GB, Geheugen slots type: DIMM. Ondersteunde opslagstationinterfaces: M.2, SATA III, Ondersteunde types opslag-drives: HDD & SSD, Soorten RAID: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Wifi-standaard: Wi-Fi 7 (802.11be), Wi-Fi-standaarden: Wi-Fi 7 (802.11be). Component voor: PC, Moederbord form factor: ATX, Moederbord chipset familie: AMD
Specificaties
| Processor | Geheugen | ||
| Processorfabrikant | AMD | Ondersteunde geheugen types | DDR5-SDRAM |
| Processor socket | Socket AM5 | Aantal geheugenslots | 2 |
| Compatibele processors | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series | Geheugen slots type | DIMM |
| Supported processor sockets | Socket AM5 | Geheugen kanaal | Dubbelkanaals |
| ECC-compatibiliteit | ECC & Niet-ECC | ||
| Maximum intern geheugen | 128 GB | ||
| Niet gebufferd geheugen | Ja | ||
| Opslag-controllers | Grafisch | ||
| Ondersteunde types opslag-drives | HDD & SSD | Ondersteuning voor parallel processing | Niet ondersteund |
| Ondersteunde opslagstationinterfaces | M.2, SATA III | Ingebouwde grafische adapter | Nee |
| Maximum aantal HDD's per behuizing | 4 | ||
| Aantal storage drives ondersteund | 9 | ||
| RAID support | Ja | ||
| Soorten RAID | 0, 1, 5, 10 | ||
| Interne aansluitingen | Aansluitingen achterzijde | ||
| USB 2.0 aansluitingen | 2 | Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 2 | Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 5 |
| USB 3.2 Gen 2×2-aansluitingen | 2 | Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C | 1 |
| Aantal SATA III connectors | 4 | Aantal USB4 Gen 3×2-poorten | 2 |
| Aansluiting voor audiopaneel aan voorzijde | Ja | Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Voorpaneel-connector | Ja | PS/2 poort(en) | 1 |
| ATX Power connector (24-pin) | Ja | S/PDIF-uitgang | Ja |
| Aansluiting voor CPU koeler | Ja | WiFi-AP antenna jack | 1 |
| Aansluitingen voor behuizingsventilatoren | 2 | ||
| EPS power connector (8-pin) | Ja | ||
| 12V vermogen-connector | Ja | ||
| RGB LED-aansluitrail | Ja | ||
| Aantal RGB LED-pinheaders | 3 | ||
| Netwerk | Kenmerken | ||
| Ethernet LAN | Ja | Chipset moederbord | AMD X870E |
| Ethernet interface type | 5 Gigabit Ethernet | Audio-uitgangskanalen | 7.1 kanalen |
| Wifi | Ja | Kleur van het product | Zwart |
| Wifi-standaard | Wi-Fi 7 (802.11be) | Component voor | PC |
| Wi-Fi-standaarden | Wi-Fi 7 (802.11be) | Moederbord form factor | ATX |
| Bluetooth | Ja | Moederbord chipset familie | AMD |
| Bluetooth-versie | 5.4 | Ondersteunt Windows | Windows 11 |
| Uitbreidingsmodules | BIOS | ||
| PCI Express x1 (Gen 3.x) slots | 1 | BIOS type | UEFI AMI |
| PCI Express x4 (Gen 4.x) sleuven | 1 | Grootte BIOS-geheugen | 512 Mbit |
| PCI Express x16 (Gen 4.x) sleuven | 2 | ||
| PCI Express x16 (Gen 5.x) sleuven | 2 | ||
| Aantal M.2 (M) slots | 5 | ||
| 1e M.2 grootste sleutelgrootte | 2280 | ||
| 1e M.2 hoogste PCI Express-generatie | 5.0 | ||
| 2e M.2 grootste sleutelgrootte | 2280 | ||
| 2e M.2 hoogste PCI Express-generatie | 5.0 | ||
| 3e M.2 grootste sleutelgrootte | 2280 | ||
| 3e M.2 hoogste PCI Express-generatie | 5.0 | ||
| 4e M.2 grootste sleutelgrootte | 22110 | ||
| 4e M.2 hoogste PCI Express-generatie | 4.0 | ||
| 5e M.2 grootste sleutelgrootte | 22110 | ||
| 5e M.2 nieuwste PCI Express-generatie | 4.0 | ||
| Verpakking | Gewicht en omvang | ||
| Breedte verpakking | 370 mm | Breedte | 305 mm |
| Diepte verpakking | 312 mm | Diepte | 244 mm |
| Hoogte verpakking | 108 mm | ||
| Gewicht verpakking | 4,16 kg | ||
| Inhoud van de verpakking | Overige specificaties | ||
| Meegeleverde kabels | SATA | Audio-uitgang | "ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*<br />- Impedance sense for front and rear headphone outputs<br />- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking<br />- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input<br />- Supports up to 32-Bit/384 kHz playback on front panel"<br /><strong>Audio Features </strong><br />- SupremeFX Shielding Technology <br />- Savitech SV3H712 AMP <br />- Gold-plated audio jacks<br />- Rear optical S/PDIF out port<br />- Premium audio capacitors<br />- Audio cover<br />* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. <br />** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
| Antenne inbegrepen | Ja | Speciale eigenschappen | <strong>Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*<br />AMD Ryzen™ 9000 & 7000 Series Desktop Processors</strong><br />M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)<br />M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**<br />M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**<br /><strong>AMD Ryzen™ 8000 Series Desktop Processors</strong><br />M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)<br />M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)<br />M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)<br /><strong>AMD X870E Chipset</strong><br />DIMM.2_1 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)<br />DIMM.2_2 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)<br />4 x SATA 6Gb/s ports<br />* Specifications vary by CPU types.<br />**When M.2_2 is enabled, but M.2_3 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.<br />**When M.2_3 is enabled, but M.2_2 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will run in x4 mode.<br />**When both M.2_2 and M.2_3 are enabled, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled. |
| Inclusief schroeven | Ja | Andere kenmerken | 2 x DIMM slots, max. 128GB, DDR5 <br />Supports up to<br />8200+MT/s(OC) with Ryzen™ 9000 Series Processors,<br />9600+MT/s(OC) with Ryzen™ 8000 Series Processors<br />8000+MT/s(OC) with Ryzen™ 7000 Series Processors,<br />ECC and Non-ECC, Un-buffered Memory*<br />Dual channel memory architecture <br />Supports AMD Extended Profiles for Overclocking (EXPO™)<br />ASUS Enhanced Memory Profile (AEMP)<br />* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.<br />* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Meegeleverde drivers | Ja | Grafische uitvoer | 2 x USB4<sup>®</sup> (40Gbps) ports support USB Type-C<sup>®</sup> display outputs*<br />Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.<br />VGA resolution support depends on processors' or graphic cards' resolution.<br />*Supports max. 4K@60Hz as specified in DisplayPort 1.4a |
